Gr.7 Titanium Hollow Rods ASTM B348 1.0–5.0mm Chemical Anti-corrosion
| Place of Origin | CHINA |
|---|---|
| Brand Name | CSTY |
| Certification | GB/T19001-2016/ISO9001:2015 |
| Model Number | ASTM B348 |
| Minimum Order Quantity | 50kg |
| Price | $35.00 - $125.00/ kg |
| Packaging Details | wooden case,carton Packaging can be according to customer requirements. |
| Delivery Time | 15~20 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000 Kilogram/Kilograms per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Melting Point | 1668°C | Density | 4.51 G/cm3 |
|---|---|---|---|
| Weight | Actual Weight | Diameter Tolerance | H8, H9 |
| OD | 15–300 Mm | Elongation | 24-30% |
| Shape | Round | Material Grade | Gr2 |
| Production Standards | ASTM F136, ASTM F67, ISO 5832. | Product Name | ASTM B348 Titanium Hollow Bar |
| Origin | China Valley | Technique | Rolled Or Forged Or Machined As Request |
| Type | Coil/ Strength In Length | Thickness | 1.0–5.0 Mm |
| Highlight | ASTM B348 Gr.7 titanium hollow rods,1.0–5.0mm Titanium Hollow Rods |
||
Product Description
Description

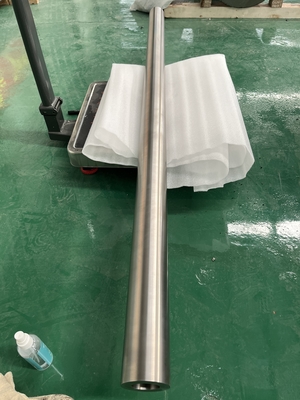

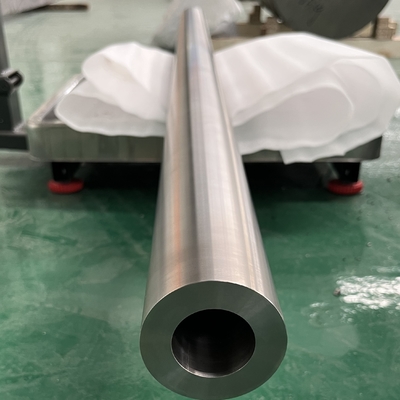

The Gr.7 titanium hollow rod is a high-performance tubular product made from a titanium–palladium alloy (corresponding to Chinese grade TA9).
Manufactured through a precision drilling process, this material combines lightweight properties with excellent corrosion resistance, mechanical strength, and stability in harsh environments.
Its hollow design not only reduces weight but also improves heat transfer efficiency and fluid handling performance, making it ideal for use in chemical, marine, and energy applications.
Specifications
| Product Name | Titanium Hollow Rods |
|---|---|
| Material | Gr.7 Titanium (Ti–0.2Pd) |
| Outside Diameter | 15–300 mm |
| Wall Thickness | 1.0–5.0 mm |
| Length | As required |
| Processing Service | Precision drilling |
| Shape | Round hollow rods |
| Standard | ASTM B348 |
| Applications | Chemical anti-corrosion equipment, marine and energy engineering, aerospace, medical, and other high-end industrial fields |
Chemical Composition (Typical Values)
| Element | N (max) | C (max) | H (max) | Fe (max) | O (max) | Pd | Ti |
|---|---|---|---|---|---|---|---|
| Gr.7 (Ti–0.2Pd) | 0.03 | 0.08 | 0.015 | 0.25 | 0.25 | 0.12–0.25 | Balance |
Applications
1. Chemical Anti-Corrosion Equipment
Used in manufacturing acid transport pipelines, reactor linings, and heat exchanger tubes, where it resists strong acids (such as nitric acid and hydrochloric acid) and organic solvents—significantly extending equipment service life.
2. Marine and Energy Engineering
Ideal for seawater desalination systems, shipbuilding components, and offshore structures due to its excellent resistance to seawater corrosion, while maintaining structural integrity and reducing overall weight.
3. High-End Industrial Applications
Applied in aerospace as lightweight structural parts and in the medical field for implantable supports, owing to its excellent biocompatibility and non-reactive nature.
Advantages
Outstanding resistance to oxidizing and reducing acids
Excellent corrosion resistance in chloride and acid environments
High strength-to-weight ratio and excellent ductility
Lightweight structure suitable for high-performance applications
Long service life with minimal maintenance requirements
Biocompatible and environmentally friendly
