ASTM F136 TC4 Gr5eli Round Bar Titanium Small Rod Pharmaceutical Industry

Place of Origin China
Brand Name Changsheng
Certification ISO 9001
Model Number ASTM
Minimum Order Quantity 50kg
Price 15usd/kg
Packaging Details film and wooden case,carton Packaging can be according to customer requirements.
Delivery Time 15~20 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50T/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materials Titanium Grade Grade 1,Grade 5, Ti-6al-4v,grade 2,grade 4,grade 23,grade 7,grade 11
Diameter Customizable Surface Polished, Pickling
MOQ 50kg Standard ASTM B348,AMS 4904,ASTM F67,ASTM F136
Technical Forged Delivery Time 15-DAYS
Hardness 285-340HB Color Silvery
Elongation Min. 24% Size Diameter 3mm-300mm, Length Up To 6000mm
Surface Finish Polished Inventory Large Stock
Diameter Tolerance H7, H8, H9 Type Solid Ball, Hollow Ball
Density 4.51 G/cm3 Material Titanium
Origin China Valley Processing Equipment CNC Lathe, Hydraulic Press, Rolling Mill
Sample Avaliable,Hot Sale Gr1 Titanium Bar Production Standards ASTM B348, ASME SB348
Highlight

ASTM F136 Titanium Round Bar

,

ASTM B348 Titanium Round Bar

,

AMS 4904 titanium round rod

Leave a Message
Product Description

Description

Specification: Rolled ¢8.0-- 40mm× L; Forging ¢40-- 150mm×L
Metallographic structure: pure titanium grain size is not less than 5, and TC4 titanium alloy conforms to A1-A9.
Surface: black surface, polished surface, polished surface (H11, H9, H8)
Performance of medical titanium rod (reference executive standard: GB/T13810-2007, ASTM F67/F136).

Stock

Dia: 5-600mm

Length:1000-6000mm

Grade: grade 2, grade 5 Eli / grade 23

Standard: ASTM F67, ASTM F136, ASTM F1472

Tolerance: H6, H7, H8, H9

Surface: Polished

Technical: Forged

Application: Medical and aerospace



Physical Properties and Compositions



Grade Tensile strength MPA Yield strength MPA Elongation %
Gr1 240 170 24
Gr2 345 275 20
Gr4 550 483 15
Gr5 895 828 10
Gr7 400 275 18
Gr9 620 483 15
Gr12 483 348 18
Gr23 793 759 10



Grade Fe Max

O

Max

N

Max

C

Max

H

Max

Pd Max

Al

Max

Va Max Ni Max Mo Max
/ Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt %
Gr1 0.2 0.18 0.03 0.08 0.015
Gr2 0.3 0.25 0.03 0.08 0.015
Gr4 0.5 0.4 0.05 0.08 0.015
Gr5 0.4 0.2 0.05 0.08 0.015   5.5-6.7 3.5-4.5
Gr7 0.3 0.25 0.03 0.08 0.015 0.12- 0.25
Gr9 0.25 0.15 0.03 0.08 0.015   2.5-3.5 2.0-3.0
Gr12 0.3 0.25 0.03 0.08 0.015       0.6-0.9 0.2-0.4
Gr23 0.25 0.03 0.03 0.08 0.0125   5.5-6.5 3.5-4.5
Ti Balance

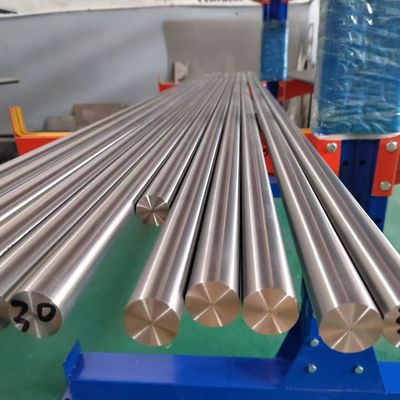

Product photo
