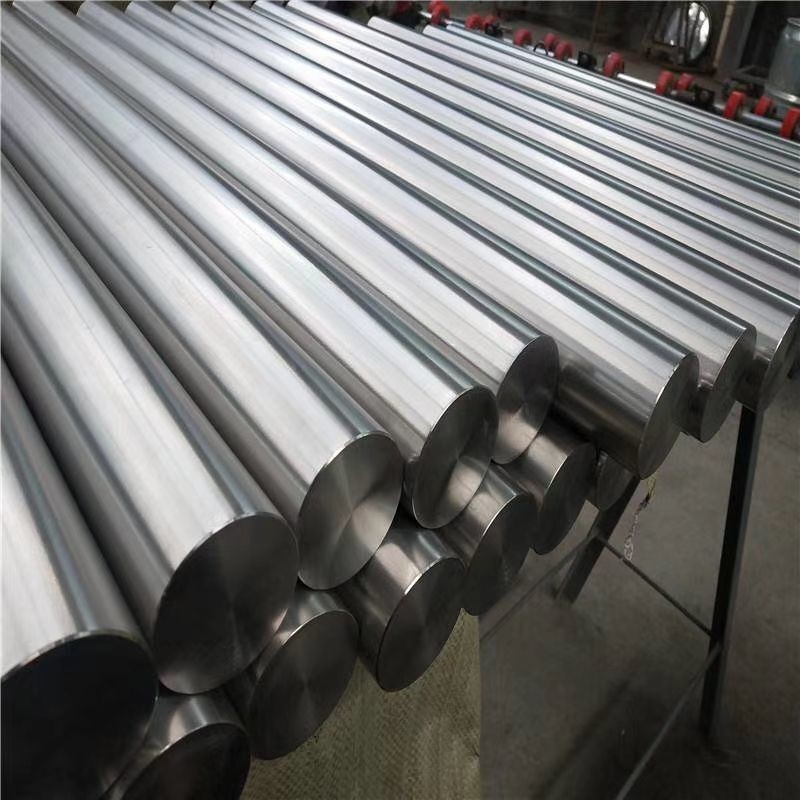

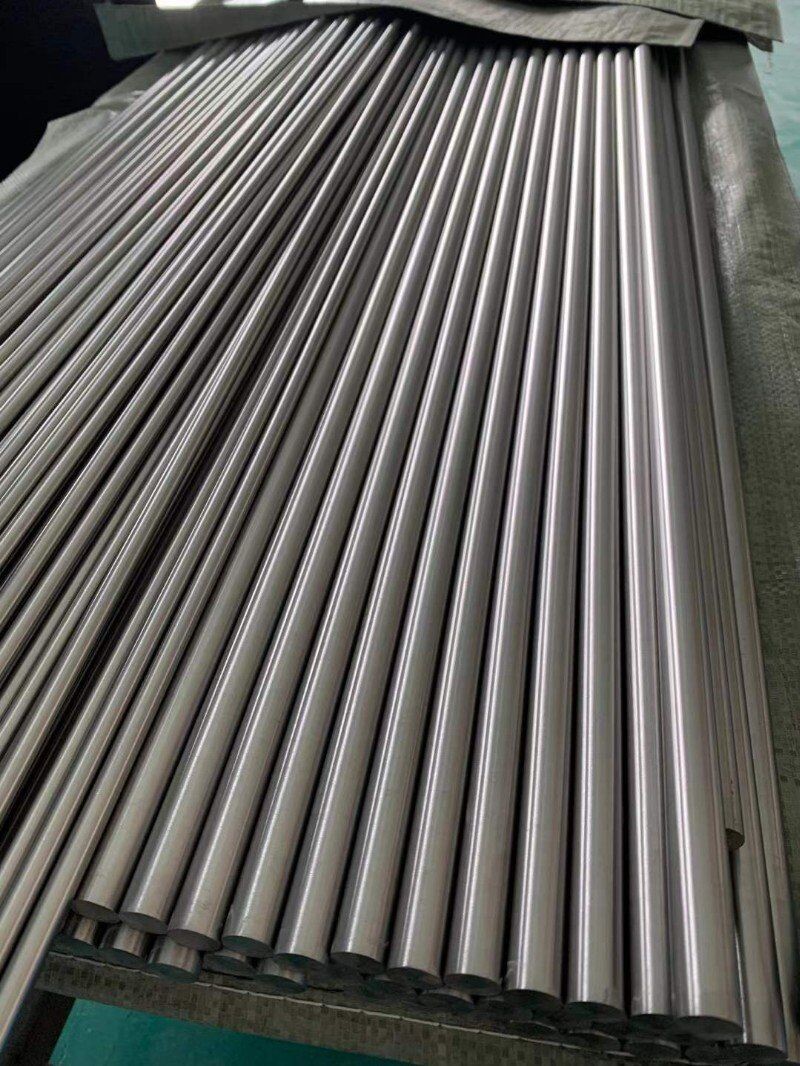

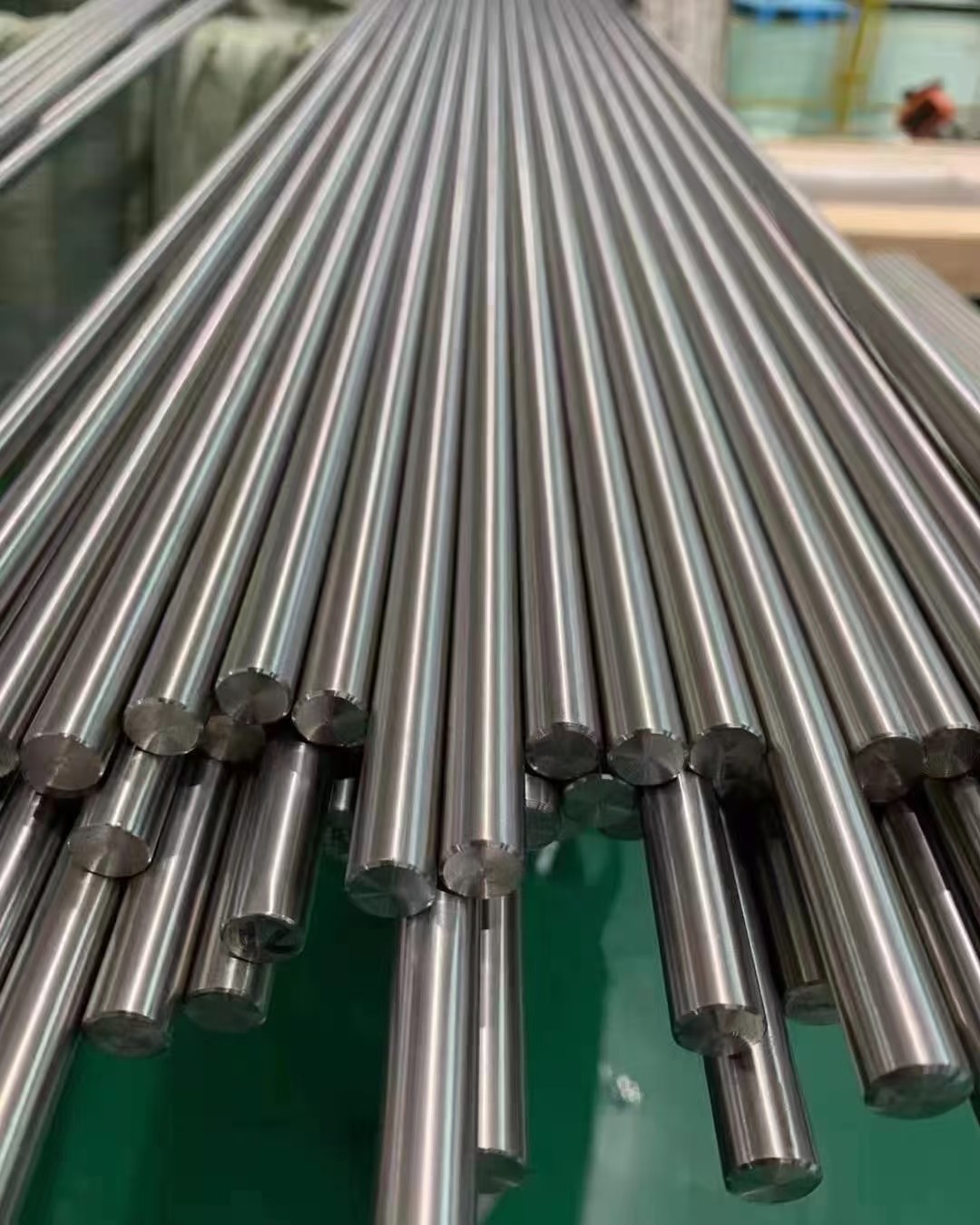

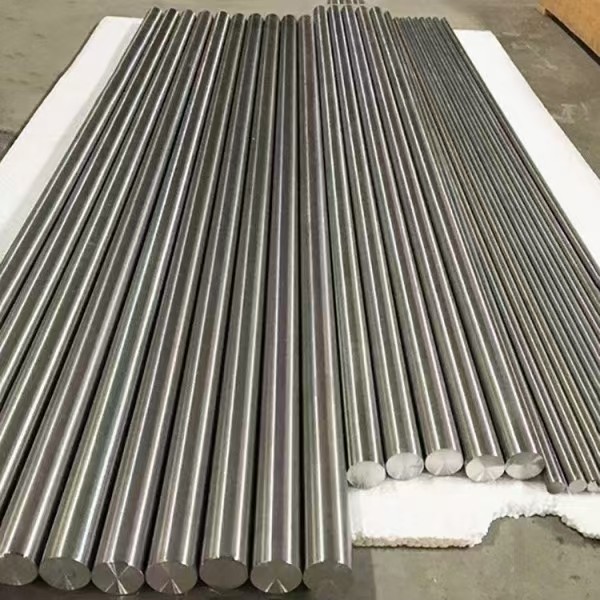

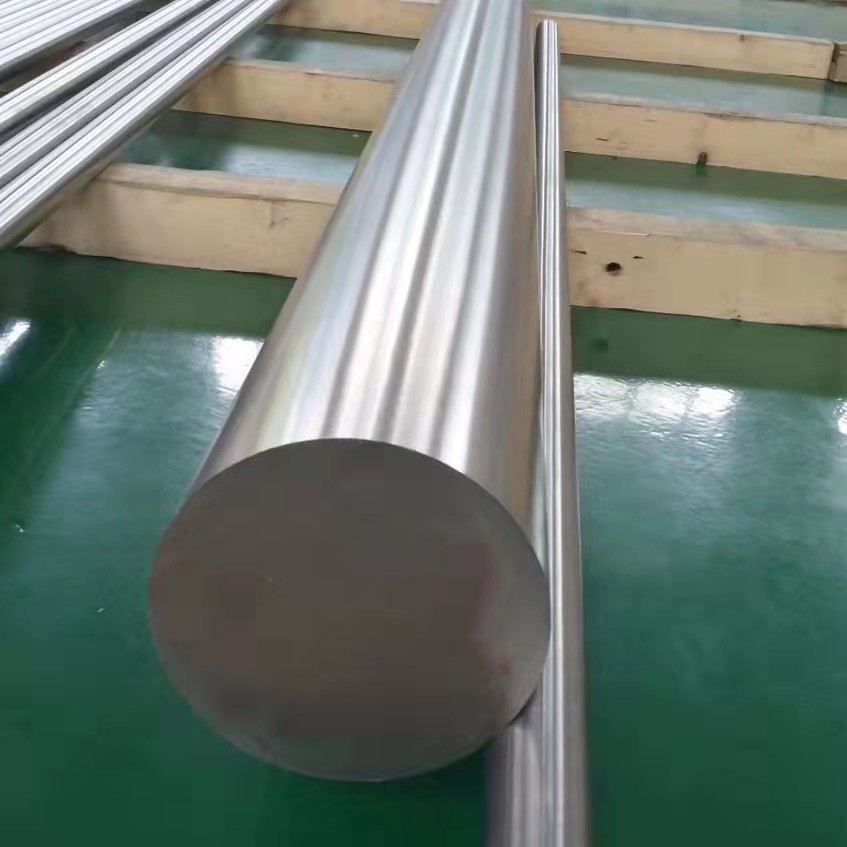

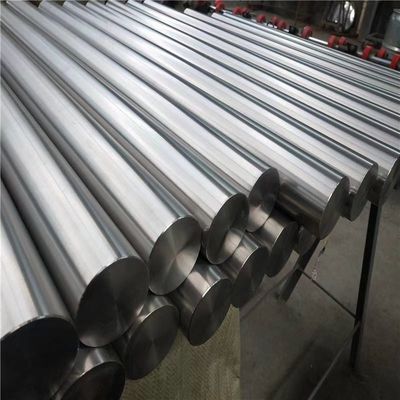

Titanium Gr7 Round Bar UNS R52400 Bar ASTM B348 for industrial
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDelivery Time | 7-10 Days | Materials | Titanium |
---|---|---|---|
Grade | Grade 7, UNS R52400 | Diameter | 5-600mm |
Surface | Polished, Pickling | MOQ | 50KG |
Standard | ASTM B348,AMS 4904,ASTM F67,ASTM F136 | Technical | Forged |
High Light | Gr7 Plain Round Bar,ASTM B348 Plain Round Bar,500mm 6al4v titanium rod |
Titanium Gr7 Round Bar Descriptions
Titanium Grade 7 round bar is a commercially pure titanium grade with excellent corrosion resistance, strength and weldability.
Titanium Grade 7 round bar has very good mechanical properties at both low and high temperatures, and is used in a variety of industries including aerospace, medical, chemical and petrochemical.
Ti Gr7 round bar has excellent formability and is often used in the manufacture of industrial parts and components, as well as medical implants and prosthetics.
Ti Gr7 round bar is available in various sizes and is usually stocked in mill form or as finished bars.
Titanium Grade 7 round bar in Stock
Diameter: 5-600mm Titanium Grade 7 round bar
Length: 900-6000mm Titanium Grade 7 round bar
Standard: ASTM B348, ASTM F136, AMS 4928 Ti Grade 7 round rod
Physical Properties of Titanium Grade 7 round bar | |||
Grade | Tensile stength MPA | Yield strength MPA | Elongation % |
Gr1 | 240 | 170 | 24 |
Gr2 | 345 | 275 | 20 |
Gr4 | 550 | 483 | 15 |
Gr5 | 895 | 828 | 10 |
Gr7 | 400 | 275 | 18 |
Gr9 | 620 | 483 | 15 |
Gr12 | 483 | 348 | 18 |
Gr23 | 793 | 759 | 10 |
Chemical Composition of Titanium Grade 7 round bar | ||||||||||
Grade | Fe Max |
O Max |
N Max |
C Max |
H Max |
Pd Max |
Al Max |
Va Max | Ni Max | Mo Max |
/ | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % |
Gr1 | 0.2 | 0.18 | 0.03 | 0.08 | 0.015 | |||||
Gr2 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | |||||
Gr4 | 0.5 | 0.4 | 0.05 | 0.08 | 0.015 | |||||
Gr5 | 0.4 | 0.2 | 0.05 | 0.08 | 0.015 | 5.5-6.7 | 3.5-4.5 | |||
Gr7 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12- 0.25 | ||||
Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | 2.5-3.5 | 2.0-3.0 | |||
Gr12 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.6-0.9 | 0.2-0.4 | |||
Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | 5.5-6.5 | 3.5-4.5 | |||
Ti | Balance |
Applications of Titanium Gr7 Round Bar
1. Aerospace: Titanium Gr7 Round Bars are commonly used in aerospace applications due to its excellent strength-to-weight ratio and corrosion resistance. They are used in the manufacture of aircraft components, including structural components, landing gear, fuselage components, and engine mounts.
2. Marine: Titanium Gr7 Round Bars are ideal for marine applications due to their excellent corrosion resistance, making them resistant to saltwater and other corrosive elements. They are commonly used in the manufacture of boat propellers, boat hulls, and other marine components. 3. Automotive: UNS R52400 Bar is used in the automotive industry for a variety of components, including exhaust systems, engine components, and suspension components. They provide an excellent strength-to-weight ratio, making them ideal for lightweight and high-performance applications.
4. Medical: UNS R52400 Bar is widely used in the medical industry due to their biocompatibility, non-toxicity, and corrosion resistance. They are commonly used in the manufacture of medical implants, prosthetics, and orthopedic instruments.
5. Chemical Processing: Ti Gr7 Round Bar is resistant to corrosion and oxidation, making them ideal for use in chemical processes. They are commonly used in the manufacture of tanks, pumps, and valves for chemical processing plants.
