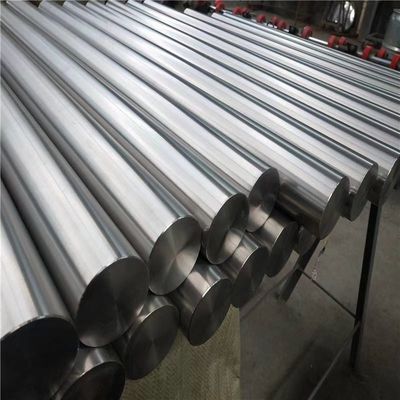

AMS 4928 Ti 6Al4V Titanium alloy bar annealed Dia150*1000mm For Aerospace

  • AMS 4928 Ti 6Al4V Titanium alloy bar annealed Dia150*1000mm For Aerospace
  • AMS 4928 Ti 6Al4V Titanium alloy bar annealed Dia150*1000mm For Aerospace
  • AMS 4928 Ti 6Al4V Titanium alloy bar annealed Dia150*1000mm For Aerospace
Place of Origin China baoji
Brand Name CSTY
Certification ISO9001
Model Number AMS 4972 6Al4V
Minimum Order Quantity 50kgs
Price USD40-50 per kg
Packaging Details standard export wooden case package
Delivery Time 7-30days
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard AMS 4972 Material Ti 6Al4V
Shape Round Bar Application Industrial, Aerospace
Sample Avaliable Payment T/T
Package Standard Woodcase
Leave a Message
Product Description

AMS 4928 Ti 6Al4V Titanium alloy bar annealed Dia150*1000mm For Aerospace

AMS 4928 Ti 6Al4V ,This specification covers a titanium alloy in the form of bars, wire, forgings, flash welded rings, drawn shapes up through
10.000 inches (254.00 mm) inclusive in diameter or least distance between parallel sides and stock of any size for forging or flash welded rings.
Application
These products have been used typically for parts requiring moderate strength with a maximum service temperature in the
750 to 900 F (399 to 510 C) range depending on time at temperature where the product is to be used in the annealed
condition, but usage is not limited to such applications.



Advantage

The density of titanium is 4.506-4.516g/cm^3, melting point is 1668, boiling point is 3535. Therefore Titanium have low weight, excellent high strength and nonmagnetic festures, low density, excellent corrosion resistance features, high specificate strength and high temperature resistance features,so titanium bar is available produced, and certified to Medical (ASTM F67,ASTM F136, ISO5832-2, ISO5832-3), Aerospace (AMS 4972,AMS 4928, AMS 2631b), Industrial (ASTM B348) standards. Stock production is aligned to ASTM, AMS, and ISO standards with other standards available on made to order.

                                                                  chemical Composition%

Element Al   V Fe O C N H Other Elements, each Titanium
Min 5.5   3.5 -- -- -- -- --   --
Max 6.75   4.5 0.30 0.2 0.08 0.05 0.0125 ≤0.1,≤0.4 remainder



Tensile Properties

1.At Room Temperature,

determined in accordance with ASTM E8/E8M on specimens  with the rate of strain set at 0.005inch/inch/minute(0.005mm/mm/minute) and maintained within a tolerance of ±0.002 inch/inch/minute (0.002 mm/mm/minute) through the 0.2% offset yield strain.



                                        Tensile Properties At Room Temperature

Nominal Diameter Tensile Strength MPa Yield Strength
at 0.2% Offset MPa		 Elongation
in 50.8mm or 4D % Long		 Reduction of
Area % Long
150mm 896 827 10 20



Melting Practice

Alloy shall be multiple melted. The first melt shall be made by vacuum consumable electrode, nonconsumable electrode,electron beam cold hearth, or plasma arc cold hearth melting practice. The subsequent melt or melts shall be made using vacuum arc remelting (VAR) practice. Alloy additions are not permitted in the final melt cycle.

AMS 4928 Ti 6Al4V Titanium alloy bar annealed Dia150*1000mm For Aerospace 0

We stock a wide range of titanium bars, including a complete commercial line and medical titanium bar. We produce our products to precise dimensions. Titanium Forged Bar, Titanium Rolled Bar, Square Titanium Bar are all available. It can be supplied in required and precise lengths.
