Corrosion Resistance Titanium Square Bars Gr2 8x8 10x10 0.75"X0.75"
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Titanium Square Bars | Material | Gr1, Gr2, Gr3, Gr5, Gr7, Gr9, Gr12, Gr23 And Etc. |
|---|---|---|---|
| Specifications | 6*6 8*8 10*10 12*12 14*14 20*20 9.5*9.5 12.7*12.7 30*30 Etc,. | Standard | ASTM B348 AMS4928 ASTM F136/67 |
| Length | As Per Request | Application | Metallurgy, Electronics, Medical, Chemical, Petroleum, Pharmaceutical, Aerospace And Etc. |
| Inventory | Large Stock | Test Report | Provide Factory MTC Or Third Party Test Report |
| Quality Assurance | Titanium Sponge Material, Standardized Production | Key Words | Titanium Square Bars |
| Highlight | 0.75'' X 0.75'' Titanium Square Bars,Gr2 Titanium Square Bars,Corrosion Resistance Titanium Square Bars |
||
Product Description

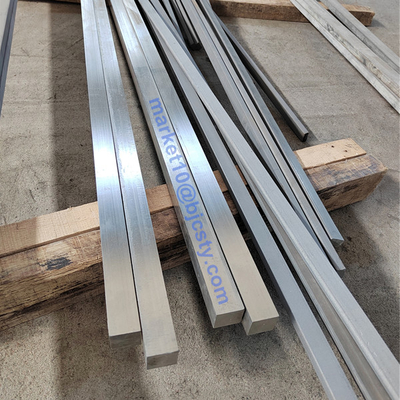

Corrosion Resistance Titanium Square Bars Gr2 8x8 10x10 0.75"X0.75"
Titanium square bars, also refered to titanium flat bars, is made from pure titanium and titanium alloys, known for their low density (4.51), light weight, perfect corrosion resistance, and super thermal stability. Widely apllied in electroplating and acid metal industries, such as hangers and pendants, and in the petrochemical, pulp, fertilizer, chlorine, electrochemistry, and seawater desalination industries, metallurgy industry, medical industry, etc,. Standard specifications for titanium square rods such as 6x6mm 8x8mm 10x10mm 12x12mm 14x14mm 20x20mm 9.5x9.5mm 12.7x12.7mm 30x30mm,etc,.
| Products | Processing Standard | Grade | Size |
|
Titanium Square Bars |
ASTM B348, AMS 4928, ASTM F67, ASTM F136, etc. |
GR1, GR2, GR3,GR4, GR5, GR7,GR9, GR12, GR16, GR17, GR23, Ti-6Al-4V ELI, TC11, Ti-6-2-4-2, Ti-15-3-3-3, etc. |
4x4mm-50x50mm Straight Length
|
Titanium Square Bar Regular Specifications:
6x6mm 8x8mm 10x10mm 12x12mm 14x14mm 19.05x19.05mm 20x20mm 9.5x9.5mm 12.7x12.7mm 25.4x25.4mm 30x30mm,etc,. and can be processed according to request specifications.
Material:
- Grade 1-4 : Commercial Pure Ti
- Grade 5: Ti-6AI-4V
- Grade 6: Ti-5AI-2.5Sn
- Grade 7: Ti-0.2Pb
- Grade 9: Ti-3AI-2.5V
- Grade 12: Ti-0.3Mo-0.8Ni
- Grade 23: Ti-6AI-4V ELI
- TC11: Ti-6.5Al-3.5Mo-1.5Zr-0.3Si
- ...
Titanium Square Bar Advantages
- It has excellent high temperature strength
- Good thermal working performance, can be welded and machining in various ways
- Testing: Tensile strength test, low magnification test, hardness test, chemical composition test, etc,.
- Surface quality: High precision, good finish, no cracks, peeling.
- Non-magnetic and non-toxic.
- Anti-corrosion. Strong corrosion resistance, acid and alkali corrosion resistance. Resistant to seawater corrosion and sewage corrosion. It is not corroded in seawater, wet chlorine, chlorite and hypochlorite solutions, nitric acid, metal chlorides, sulfides and organic acids.
- Low density, Lighweight. Titanium has superior properties compared to stainless steel and aluminum, titanium is as strong as steel, while 45% lighter and twice as strong as aluminum.
Titanium Square Bar Applications
| Supply Condition | Annealed | |
| Aircraft Turbines | Engine Components | Chemical Processing Industrials |
| Marine Applications | Aerospace Fasteners | High-Performance Automatic Parts |
| Aircraft Structural Components | Medical Industry | Sports Equipment |
| Electroplating industry | Metallurgical industry | Electronics |
Titanium square rod production process:
Hot forging - Hot rolling - Annealing - Straightening - Machining - Polishing - Flat head - Inspection - packaging
Titanium Square Bars
Tags: Titanium Square Bar, Titanium Flat Bar Gr2, Hanging Device Titanium Square Bar
