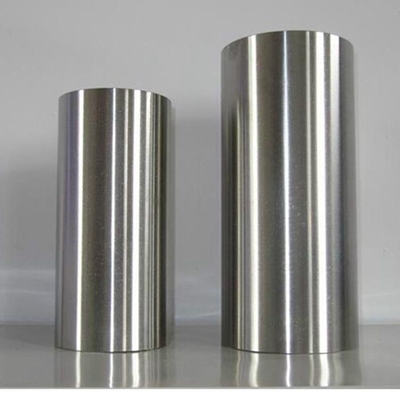

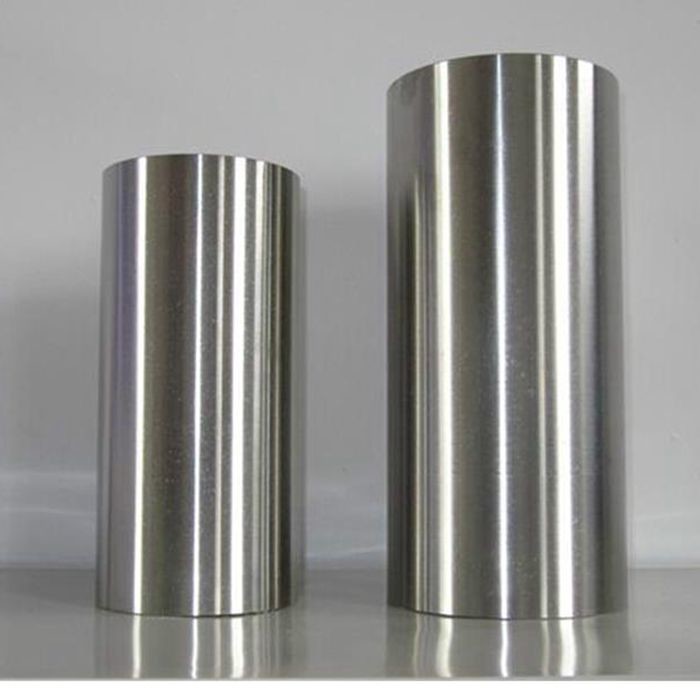

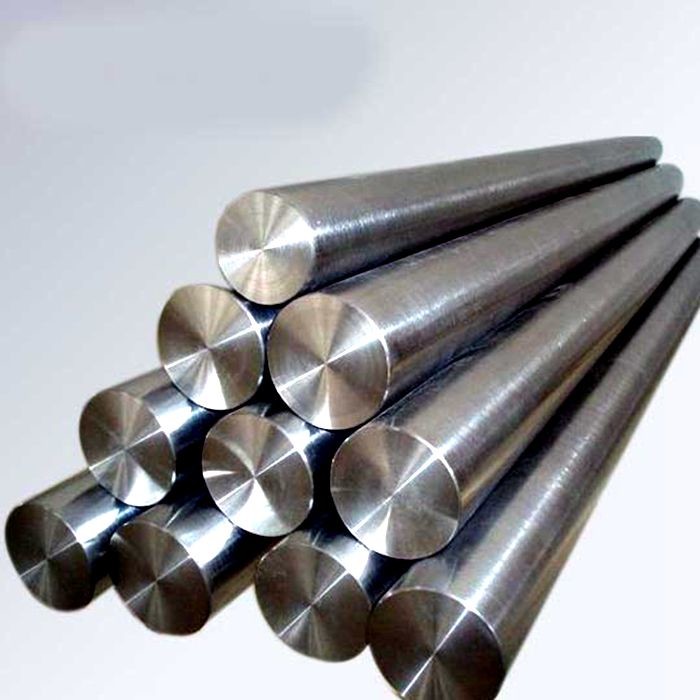

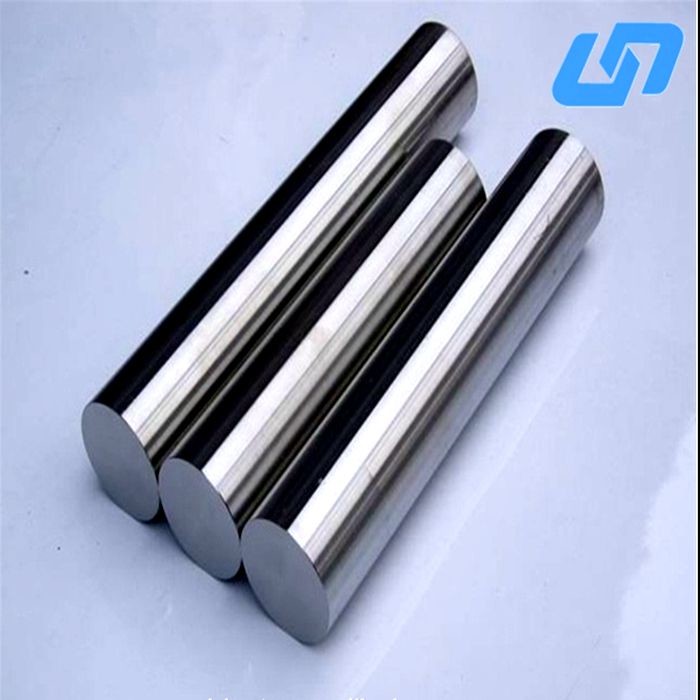

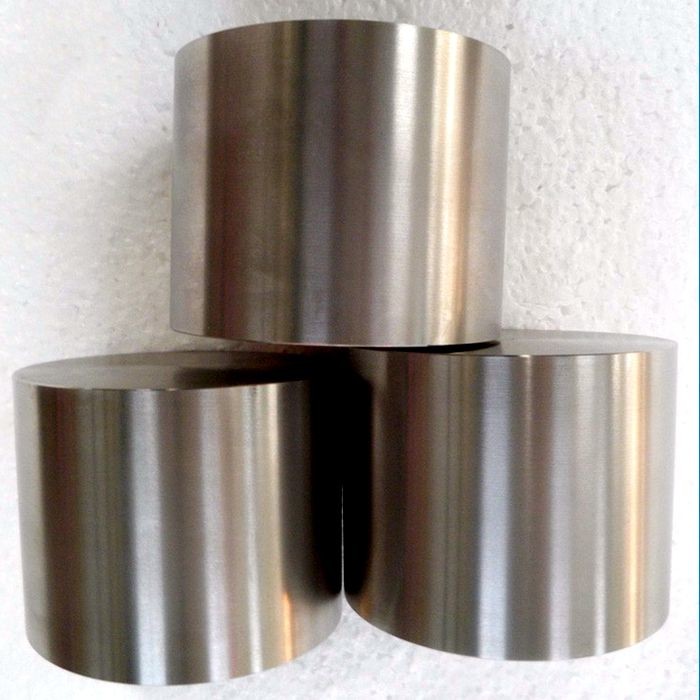

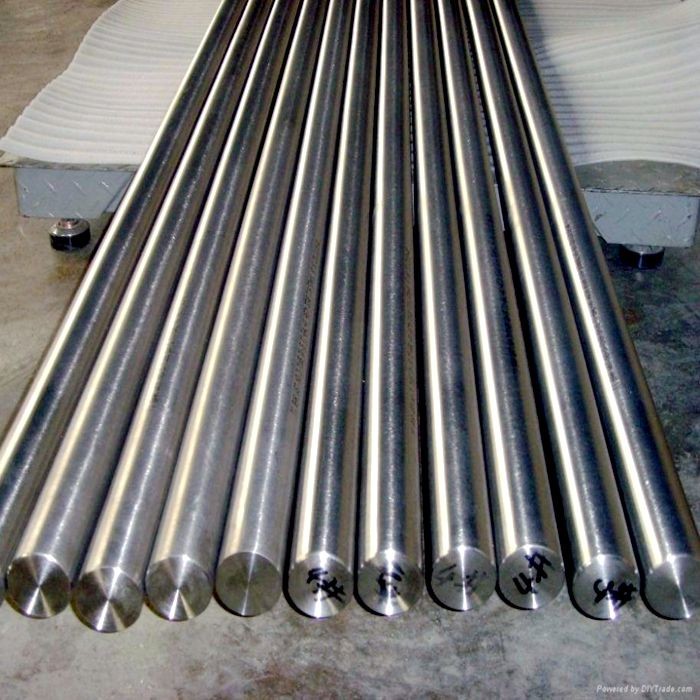

High Temperature Titanium Alloy Bar with ASTM B348 Standard and Affordable
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO 9001;2015 |
| Model Number | ASTM B348 |
| Minimum Order Quantity | 10kg |
| Price | USD21/kg |
| Packaging Details | wooden case,carton Packaging can be according to customer requirements. |
| Delivery Time | 15~20 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram,paypal |
| Supply Ability | 2000kgs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Common Diameter | Φ22 Φ23 Φ24 Φ25 Φ26mm | Grade | Grade 5 |
|---|---|---|---|
| Key Words | Titanium Square Bars | Package | Packed With Standard Export Wooden Case |
| Diameter | 6mm | Shape | Round |
| Technology | Hot Forging Hot Rolled Machining | Surface Finish | Polished |
| Delivery Status | M Or Y | Rolling Process | Hot Rolled, Cold Rolled |
| Surface Process | Polished, Turned | Inventory | Large Stock |
| Tensile | 968MPA | Supply Status | R Y M |
| Density | 4.51 G/cm3 | ||
| Highlight | ASTM B348 Titanium Alloy Bar,High Temperature Titanium Alloy Bar,OEM Titanium Alloy Bar |
||
Product Description
Introduction
Titanium rods are the primary raw material for producing titanium alloys and pure titanium metal. They feature low density, high strength, excellent corrosion resistance, and good thermal and mechanical properties. Titanium rods are widely used in aerospace structural components, rocket nozzles, chemical processing equipment, heat exchangers, condensers, and medical implants.
Specifications
| Parameter | Details |
|---|---|
| Product Name | Titanium Rod / Bar |
| Standard | ASTM B348, ISO 13810, ISO 5832-2, ISO 5832-3; ASTM F136 & ASTM F67 for medical applications |
| Grade | Grade 5 Titanium Bar (Ti-6Al-4V) |
| Diameter | 1–200 mm (customized sizes available) |
| Length | 300–6000 mm |
| Technique | Hot Forging & Hot Rolling |
| Surface Finish | Polished, Machined |
| Shape | Round, Flat, Square, Hexagonal |
| Features | Excellent cryogenic performance, non-magnetic, non-toxic, good thermal properties, low modulus of elasticity |
| Applications | Industrial, Medical, Petrochemical, Aerospace, Chemical, Marine |
Applications
Titanium rods are highly versatile and can be used for:
-
Cold drawing to make lath, foil, or wire.
-
Manufacturing titanium sponge (PTFE fiber) products.
-
Serving as chemical catalyst carriers or electrolyte purification agents.
-
Acting as filler material in high-temperature welding (melting point: 3727°C).
-
Producing refractory materials and high-temperature plastics.
-
Steelmaking as a deoxidizer and desulfurizer.
-
High-temperature furnace components.
-
Nuclear reactor control rods.
-
Aircraft engine blades and rocket nozzles.
-
Containers for uranium extraction from seawater.
-
Heat-resistant glass and zirconia fiber production.
-
Artificial joints and medical implants.
-
Semiconductor device applications.
Physical and Mechanical Properties (Grade 5 / Ti-6Al-4V)
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 895–950 |
| Yield Strength (MPa) | 828–880 |
| Elongation (%) | 10–14 |
| Composition | Al 6%, V 4%, Fe ≤0.25%, O ≤0.2%, N ≤0.03%, H ≤0.015%, Ti Balance |
