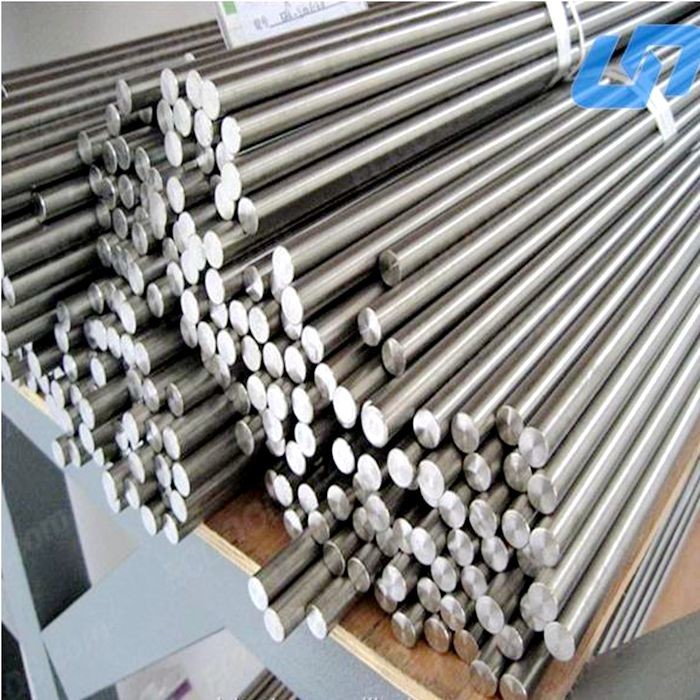

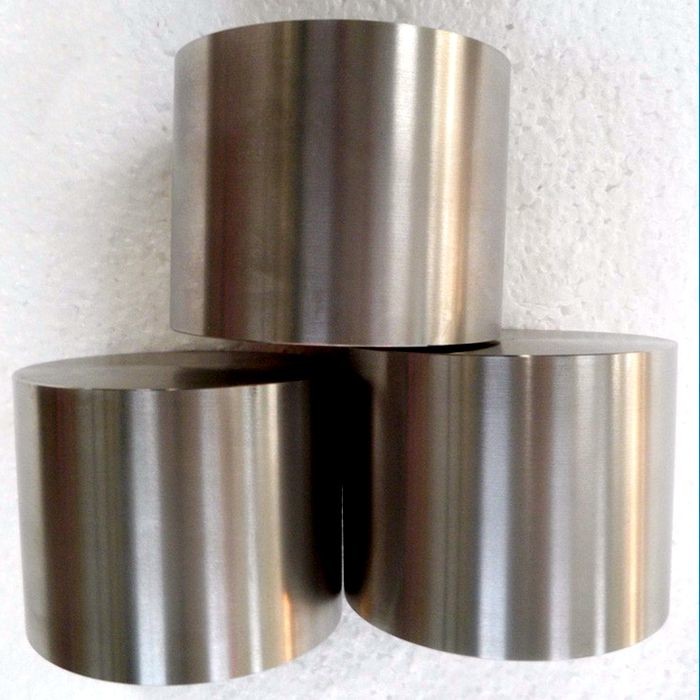

Grade 2 Titanium Bar ASTM B348 For Aviation and Clinical Applications

Place of Origin CHINA
Certification ISO9000:2015
Model Number GR2
Minimum Order Quantity 10KG
Price According to quantity
Packaging Details Clients’ requirement
Delivery Time 10 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Size Dia.6.35~400mm Technique Rolled
Technical Forged Standrad ASTM B348 & ASTM B381
Length Customizable Rolling Process Hot Rolled, Cold Rolled
Color Sliver Supply Status R Y M
Material Grade Gr2 Weight 4.51g/cm3
High Light

Aviation Titanium Bar


Clinical Titanium Bar


ASTM B348 Titanium Bar

Leave a Message
Product Description

Grade 2 Titanium Bar ASTM B348 For Aviation and Clinical Applications


WHAT IS Grade 2 Titanium Bar?


Grade 2 Titanium Bar stock represents a commercially pure form of titanium that is highly valued for its properties. It is widely utilized in various sectors due to its exceptional resistance to corrosion, moderate strength, and remarkable ability to be formed into different shapes.


The availability of Grade 2 titanium bar in multiple diameters allows it to be tailored to the specific needs of a diverse range of projects, spanning from consumer goods to industrial uses. Interested parties can request a quote for the desired titanium bar by reviewing the inventory of Grade 2 options, which includes diameters ranging from 0.25 inches to 12 inches.


The quality and consistency of the titanium bar are ensured through certifications such as ASTM B348 and ASTM B381. These standards validate the material's adherence to industry specifications and performance criteria.


With its unique combination of properties, Grade 2 Titanium Round Bar is an ideal choice for a broad spectrum of applications, including synthetic fiber production, marine environments, aviation components, and clinical medical devices. Its adaptability and durability make it a preferred material across these varied fields.


Attribute Details
Product Gr2 Titanium Bar
Size Diameter: 6.35~400mm
Standard ASTM B348
HS CODE 8108901090
Surface Treatment Polished and Machining Surface
Tensile Strength 345Mpa minimum
Yield Strength 275Mpa minimum
Minimum Order Qty 10kg
Price 17.5USD/kg


Chemical Composition

Iron (Maximum): 0.30% Hydrogen (Maximum): 0.015%
Oxygen (Maximum): 0.25% Other Elements (Each): 0.01%
Carbon (Maximum): 0.08% Other Elements (Total): 0.40%
Nitrogen (Maximum): 0.03% Titanium: Balance


Grade 2 Titanium Bar is a versatile and robust material that finds application across various industries due to its exceptional properties such as high strength-to-weight ratio, corrosion resistance, and non-magnetic qualities. Here are some key applications of Grade 2 Titanium Bar:


1. Aerospace:

The aerospace industry values titanium for its lightweight yet strong characteristics, which are critical for aircraft components. Titanium bars are used in the construction of landing gears, frames, wings, and engine parts. For example, the Boeing 787 Dreamliner contains about 15% titanium, utilizing it in engine pylons, landing gears, and wing components.


2. Medical Implants:

Grade 2 Titanium Bar is non-toxic and highly biocompatible, making it suitable for medical implants. It is commonly used in dental implants, bone plates, spinal fusion cages, and artificial hip joints due to its corrosion resistance, low weight, and high mechanical strength.


3. Marine Sector:

Titanium's high resistance to corrosion makes it an excellent material for marine applications. It is used in shipbuilding, offshore drilling equipment, and saltwater tanks. Components like propeller shafts, valves, and siphons can be manufactured from titanium bars. The Royal Navy destroyer HMS Sheffield, which incorporated titanium in its propeller shafts and seawater cooling systems, exemplifies this use.


4. Chemical Manufacturing:

Titanium's ability to withstand high temperatures and pressures, along with its corrosion resistance, makes it ideal for chemical processing equipment. Grade 2 Titanium Bar stock is used in heat exchangers, reactors, and storage tanks. DuPont's titanium plant uses titanium bars in their chemical processing equipment to prevent corrosion and ensure longevity.


5. Sports Equipment:

The combination of titanium's light weight and high strength makes it a prime material for sports equipment. It is used in the manufacture of tennis rackets, golf clubs, and bicycle frames. Bicycle components like frames, handlebars, and seat posts can benefit from the use of titanium bars. The Moots Vamoots CR titanium bike, featuring a titanium frame and bars for enhanced performance and durability, showcases this application.


In summary, Grade 2 Titanium Bar is an exceptionally adaptable and tough material with wide-ranging applications across industries such as aerospace, medical implants, marine applications, chemical processing, and sports equipment. Its unique properties make it suitable for various uses that demand corrosion resistance, low weight, and high strength.
