Sintered Filter Sintered Micron Porous Metal Filter Disc / Plate / Sheet / Tube

  • Sintered Filter Sintered Micron Porous Metal Filter Disc / Plate / Sheet / Tube
  • Sintered Filter Sintered Micron Porous Metal Filter Disc / Plate / Sheet / Tube
Place of Origin China
Brand Name CSTY
Model Number titanium/ stainless steel
Minimum Order Quantity According to size
Price According to quantity and size
Packaging Details Clients’ requirement
Delivery Time 5-25
Payment Terms L/C, T/T
Supply Ability 50000pcs/m

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Titanium/ Stainless Steel Shape Custom
Size Custom Application Separation And Filtration
Sample Available Filter Rating 0.2um-100um
High Light

Micron Porous Metal Filter Disc

,

Sintered Porous Metal Filter Plate

,

Sintered Porous Filter 0.5mm
Leave a Message
Product Description

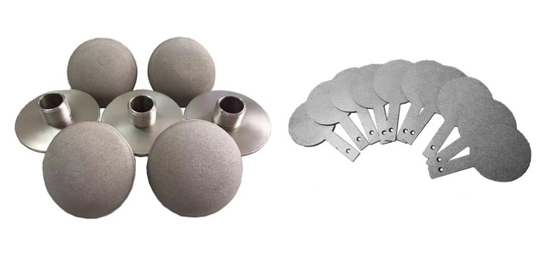

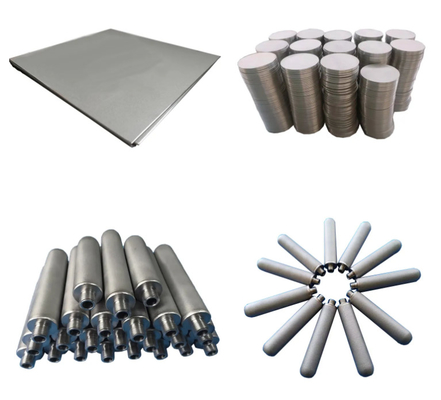

Sintered Filter Sintered micron porous metal filter disc /plate/sheet/tube





Product Name
Sintered Filter Sintered micron  porous metal filter disc /plate/sheet/tube

Specification
Diameter: OD5mm-300mm (or as your request)
Thickness : 0.5mm-10mm (or as your request)
Porosity
28%-50%
Aperture
2.5μm-160μm
Filtration precision
0.2μm-80μm
Filtration Efficiency
98% filtration accuracy under:0.1 - 80um
Shape
Disc,squareness,tubular,rodlike
Breathability m³/h.㎡.kPa
1.5-1200
Withstand voltage
Max3.0MPa
Working Temperature
≤600℃




Application of porous titanium
-Sintered titanium & SS can be used as gas diffusion layer in Polymer-Electrolyte-Membrane Fuel Cells (PEMFC).
-Porous Titanium sheets can be assembled as titanium filter, can be used for filtration under high temperature & corrosive environments.
-Porous Titanium can be coated with Pt and others, which can be used as anode
We provide porous titanium sheet with wide range of filtration precision and dimensions. We can also carry out machining on porous titanium sheet, such as chamfering, punching, cutting, etc.


Work environment
Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, liquid hydrogen,
liquid nitrogen, hydrogen sulfide, acetylene, steam, hydrogen, coal gas, carbon dioxide gas, etc
Other available porous material
SS,Titanium, Copper, Nickel, Inconel600 etc



Application:



Sintered Filter Sintered Micron Porous Metal Filter Disc / Plate / Sheet / Tube 0
