Customized Liquid Filtration Nickel Sintered Filter Heat Exchange Sparging
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO 9001;2015 |
| Model Number | ASTM B348 |
| Minimum Order Quantity | 10pcs |
| Price | USD24/pc |
| Packaging Details | wooden case,carton Packaging can be according to customer requirements. |
| Delivery Time | 15~20 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram,paypal |
| Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension | Customized | Filter Media | Nickel Powder |
|---|---|---|---|
| Temperature | 0-200℃ | Abrasion Resistance | High |
| Raw Material | Stainless Steel Powder | Application | Liquid And Gas Filtration |
| Operating Temperature | Up To 600°C | Filter Rating | 0.5-100um |
| Working Temperature | 0-200℃ | Surface Finish | Smooth |
| Pressure Resistance | ≤0.6Mpa | Filter Efficiency | 99.8% |
| Dimensions | Customizable | Surface Treatment | Polishing/Sandblasting/Anodizing |
| Usage | Gas, Liquid | ||
| Highlight | Customized Sintered Porous Filter,Liquid Filtration Sintered Porous Filter |
||
Product Description
Introduction
Compared with traditional filtration materials such as paper, cotton, PP, PE, PES, and PTFE, metal powder sintered porous materials offer superior performance.
They have excellent permeability, precise pore control, stable shape, high filtration accuracy, wear resistance, strong mechanical properties, good heat conduction, heat resistance, and heat dissipation.
Additionally, they can be repeatedly cleaned and reused multiple times, making them both cost-effective and environmentally friendly.
Specifications

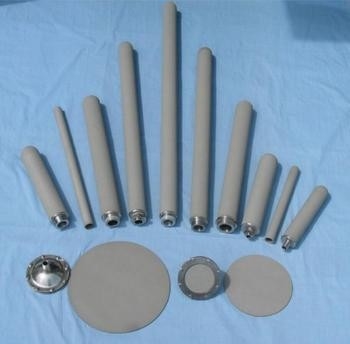

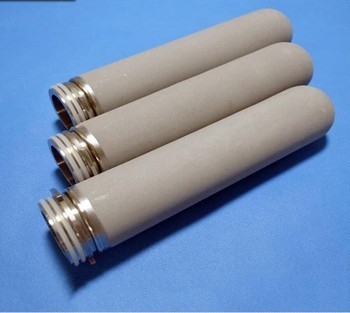

| Product Name | Sintered Filter |
|---|---|
| Material | Pure Titanium / SS316L / Bronze |
| Size | OD 20–80 × WT 2.5–3.0 × L 10–1200 mm |
| Filter Accuracy | 0.5–80 μm |
| Connection | Customized according to customer requirements |
| Application | Sparging, Separation and Filtration, Carbonisation, Liquid Filtration, etc. |
Technical Parameters
| Filter Accuracy (μm) | Porosity (%) | Permeability (m³/m²·h·kPa) | Compression Strength (MPa) | Temperature Tolerance (°C) | Max Working Pressure (MPa) |
|---|---|---|---|---|---|
| 0.5–50 | 20–50 | 3–800 | 2–3 | 250 | 0.6 |
Applications
Sintered filters are widely used across industries such as electronics, water treatment, food processing, biotechnology, chemical and petrochemical, metallurgy, and gas purification.
They are recognized as a new-generation filtration medium with broad development prospects.
Typical Applications Include:
-
Sparging and aeration
-
Separation and filtration
-
Carbonisation and gas diffusion
-
Liquid filtration
-
Catalyst recovery
-
Steam filtration
-
Slurry oil filtration
-
Flame arrestors
-
Silencers
-
Fluid distribution and flow control
-
Semiconductor manufacturing
-
Fuel cell stacks
-
Coating electrodes
-
Damping and shock absorption
-
Heat exchange systems
-
Bio-implants and medical devices
Properties
-
Uniform pore size distribution and stable structure for high separation efficiency.
-
High porosity and low filtration resistance ensure strong permeability.
-
Excellent chemical resistance to acids, alkalis, and oxidation.
-
Stable morphology, no particle shedding, compliant with food and pharmaceutical GMP standards.
-
High mechanical strength, low differential pressure, and large flow capacity.
-
Anti-microbial and non-reactive with microorganisms.
-
Regenerable — easy to clean online, offering a long service life.
-
Excellent biocompatibility for biological, food, pharmaceutical, and medical use.
-
Good electromagnetic shielding properties.
-
Strong damping and vibration resistance.
