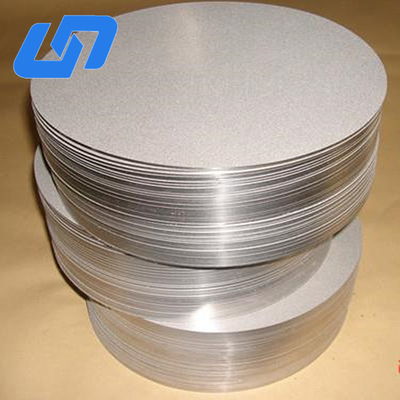

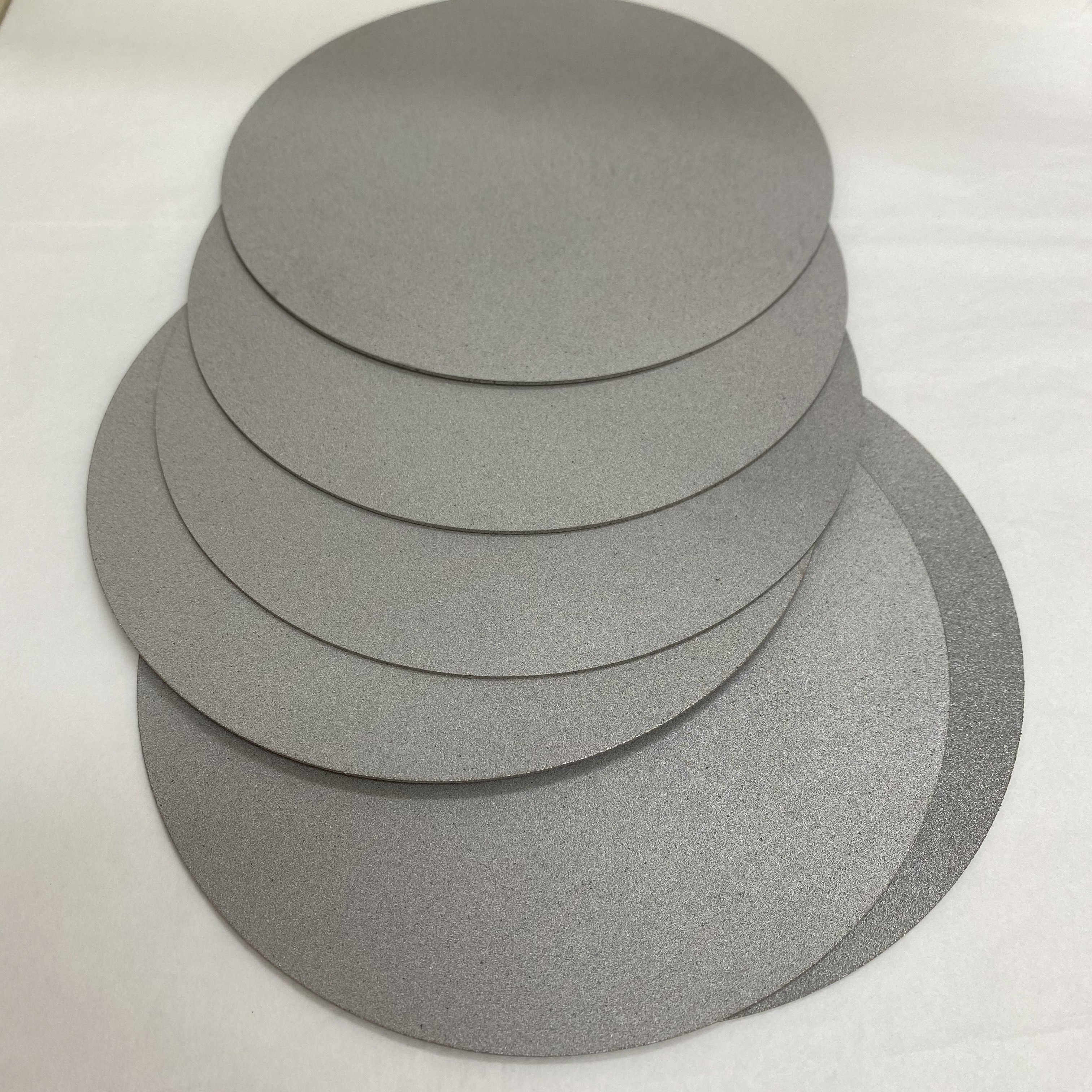

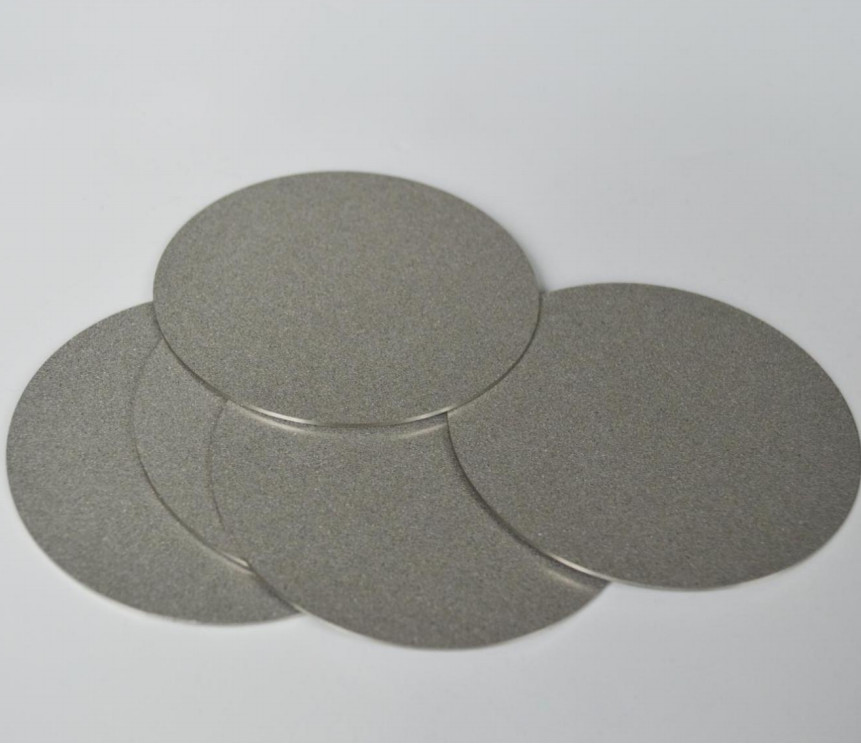

Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation

Place of Origin	CHINA
Brand Name	CSTY
Certification	GB/T19001-2016/ISO9001:2015
Model Number	SS 316L
Minimum Order Quantity	10kgs
Price	$80.00 - $110.00/ Piece
Packaging Details	film and wooden case,carton Packaging can be according to customer requirements.
Delivery Time	15~20 work days
Payment Terms	L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability	5000 Kilogram/Kilograms per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Filtration Accuracy	0.1um	Abrasion Resistance	High
Characteristic	Used In Highly Corrosive Environment	Filtration Area	0.3-1.0m2
Specification	0.5um, 2um, 5um, 10um,	Diameter	50-1000mm
Material	Titanium, SS 316L, Inconel600, Etc.	Sample Service	Provide Sample For Testing
Type	Metal, SS Filter Disc	Standard	ISO9000
Working Pressure	2-3Mpa	Packing	Standard Export Package
Service Life	2-5 Years	Max Pressure	2.0Mpa
Dimension	Customized

Leave a Message

Product Description

Introduction

Compared with traditional filtration materials such as paper, cotton, PP, PE, PES, and PTFE, metal powder sintered porous materials offer superior performance. They provide excellent permeability, precise pore size control, stable shape, high filtration accuracy, wear resistance, good mechanical strength, and excellent heat conduction and dissipation.

Moreover, sintered metal materials can withstand high temperatures, maintain their shape under stress, and be cleaned and reused multiple times, making them a durable and cost-effective filtration solution.

Specifications

Product Name	Sintered Plate
Material	Pure Titanium / SS316L / Bronze / Inconel 600
Size	OD 20–80 mm × WT 2.5–3.0 mm × L 10–1200 mm
Filter Accuracy	0.5–80 µm
Connection	Customized according to customer requirements
Applications	Sparging, Separation and Filtration, Carbonation, Liquid Filtration, etc.

Technical Parameters

Filter Accuracy (µm)	Porosity (%)	Permeability (m³/m²·h·kPa)	Compression Strength (MPa)	Temperature Tolerance (°C)	Max Working Pressure (MPa)
0.5–50	20–50	3–800	2–3	250	0.6

Applications

The sintered plate is widely used in industries including electronics, water treatment, food and beverage, biotechnology, chemicals, petrochemicals, metallurgy, and gas purification. It represents a new generation of filtration materials with broad development potential.

Typical applications include:

Sparging
Separation and Filtration
Carbonation
Liquid Filtration
Catalyst Recovery
Steam Filtration
Slurry Oil Filtration
Flame Arrestors
Sound Silencing
Fluid Distribution and Control
Semiconductor Manufacturing
Fuel Cell Stacks
Coating Electrodes
Damping and Shock Absorption
Heat Exchange
Bio-Implants

Properties

Uniform pore size and stable pore structure with high separation efficiency
High porosity, low filtration resistance, and excellent permeability
Outstanding chemical stability and resistance to acids, alkalis, and oxidation
Morphological stability—no particle shedding; compliant with food hygiene and pharmaceutical GMP standards
Strong mechanical properties, low differential pressure, and large flow capacity
Excellent anti-microbial characteristics, non-reactive with microorganisms
Easy online regeneration, backwashing, and long service life
Excellent biocompatibility for use in biological, food, pharmaceutical, and medical applications
Effective electromagnetic shielding performance
Strong damping and shock resistance
