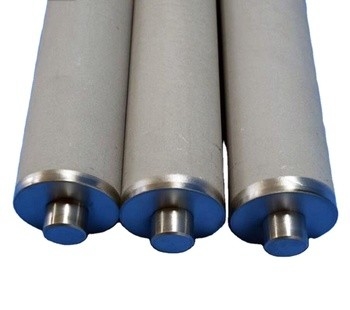

Porous Sintered Metal Filter Tube For Sparging Separation And Food Industry
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO 9001;2015 |
| Minimum Order Quantity | 1pc |
| Price | USD56/pc |
| Packaging Details | film and wooden case,carton Packaging can be according to customer requirements. |
| Delivery Time | 15-30days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram,paypal |
| Supply Ability | 200pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Chemical Compatibility | Wide Range Of Chemicals | Dimension | Customized |
|---|---|---|---|
| Surface Finish | Ra 0.4 μm | Temperature | 0-200℃ |
| Working Life | More Than 10 Years | Pressure | 0-2.5Mpa |
| Cleaning Method | Ultrasonic, Backwashing, Chemical Cleaning | Filtration Precision | 1 Micron 5 Micron 10 Micron |
| Tensile Strength | ≥0.6MPa | Max Pressure | 2.0Mpa |
| Thickness | 2-10 Mm | Filter Grade | Precision Grade |
| Standard | ISO9000 | Other Service | Platium, Ir, Ru Coating Titanium Plate |
| Compressive Strength | ≥0.6MPa | ||
| Highlight | Sparging Separation Filter Tube,Filtration Filter Tube,Porous Sintered Metal Filter Tube |
||
Product Description
Introduction
Compared with traditional filtration materials such as paper, cotton, PP, PE, PES, and PTFE, metal powder sintered porous materials offer superior performance.
They feature excellent permeability, precise pore size control, stable shape, high filtration accuracy, wear resistance, outstanding mechanical properties, good thermal conductivity, and high heat resistance.
Moreover, these filters can be repeatedly cleaned and reused many times, providing long service life and cost efficiency.
Specifications
| Product Name | Sintered Filter |
|---|---|
| Material | Pure Titanium / SS316L / Bronze |
| Size | OD 20–80 × WT 2.5–3.0 × L 10–1200 mm |
| Filter Accuracy | 0.5–80 μm |
| Connection | Customized according to customer requirements |
| Application | Sparging, Separation and Filtration, Carbonisation, Liquid Filtration, etc. |
Technical Parameters
| Filter Accuracy (μm) | Porosity (%) | Permeability (m³/m²·h·kPa) | Compression Strength (MPa) | Temperature Tolerance (°C) | Max Working Pressure (MPa) |
|---|---|---|---|---|---|
| 0.5–50 | 20–50 | 3–800 | 2–3 | 250 | 0.6 |
Application
Sintered filters are widely used in the electronic, water treatment, food, biotechnology, chemical, petrochemical, metallurgical, and gas purification industries.
They are regarded as a next-generation filtration solution with broad development potential.
Typical Applications Include:
-
Sparging and gas diffusion
-
Separation and filtration
-
Carbonisation
-
Liquid filtration
-
Catalyst recovery
-
Steam filtration
-
Slurry oil filtration
-
Flame arrestors
-
Silencing
-
Fluid distribution and control
-
Semiconductor industry
-
Fuel cell stack
-
Coating electrodes
-
Damping
-
Heat exchange
-
Bio-implants
Properties
-
Uniform pore diameter and high separation efficiency.
-
High porosity with low filtration resistance and excellent permeability.
-
Excellent chemical stability — resistant to acids, alkalis, and oxidation.
-
Stable morphology without particle shedding, compliant with food and pharmaceutical GMP standards.
-
Strong mechanical strength, low differential pressure, and high flow rate.
-
Anti-microbial and non-reactive with microorganisms.
-
Regenerable design — easy to clean online with long service life.
-
Excellent biocompatibility, ideal for use in biological, food, pharmaceutical, and medical industries.
-
Good electromagnetic shielding properties.
-
Superior damping and vibration resistance.
