xMaterial | Pure Titanium Powder | Shape | Round |
---|---|---|---|
Size | Customized | Application | Separation And Filtration |
Sample | Available | Filter Rating | 0.5um-80um |
Highlight | Sintered Metal Powder Disc Filter,High Temperature Sintered Metal Powder Filter,Powder Sintered Porous Filter |
High Temperature Sintered Metal Powder Disc Filter
Product Introduction
Metal powder sintered porous material is made of metal or alloy powder by forming and sintering at high temperature and with a rigid structure.
Feature: The metallic powder sintered porous material contains a large number of connected or semi-connected pores, the pore structure is composed of regular and irregular powder particles, the size and distribution of pores and the size of porosity can be adjusted according to the powder particle size combination and preparation process to meet the actual needs of customers.
Advantage: Compared with the traditional filtration materials such as paper, cotton, PP, PE, PES, PTFE, etc., the metal powder sintered porous materials have good permeability, pore size and pore control, stable shape, high filtration accuracy, wear resistance, good mechanical properties, good heat conduction, heat resistance and heat dissipation, and can be repeatedly washed and used for many times.
Specification of titanium sintered porous materials
Production | Diameter/Length | Diameter/Width | Thickness | Customized |

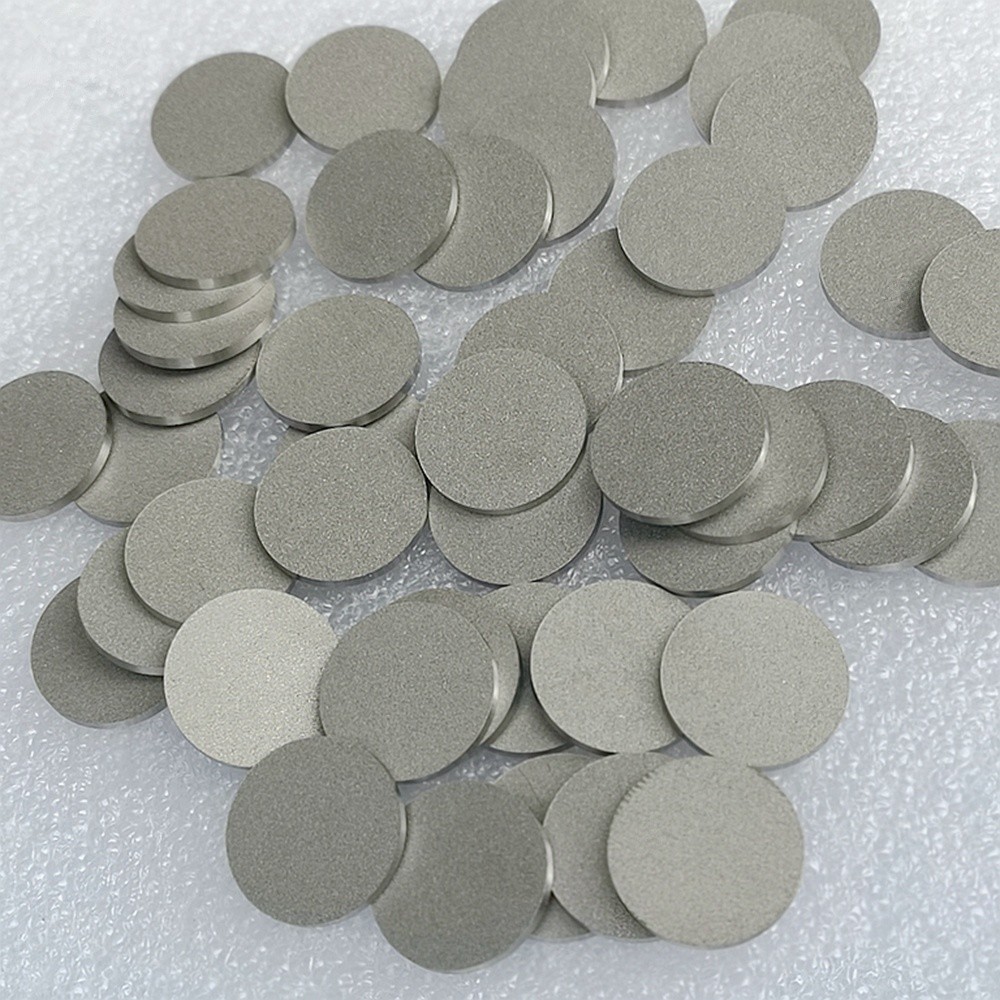

Sintered porous round discs |
Max Dia φ500mm | Max Dia φ500mm | 0.5-30mm | Yes |
Sintered porous sheets |
Max 800mm | Max Width 320mm | 0.5-30mm | Yes |
Sintered porous tubes |
Single Max Length 1200mm |
Max Diaφ200mm |
2-10mm |
Yes |
Features of titanium sintered porous materials:
Material | FilterRating | Porosity | Penetrability | Working pressure | Operating temperature | Shape | specific surface area |
Pure Titanium powder | 0.5um-80um | 25-45% | 3-800M³/M²hKPa | 2.5MPa | 300℃ | Round disc,sheet,tube,round bar,cap | 10-40cm²/cm³ |
