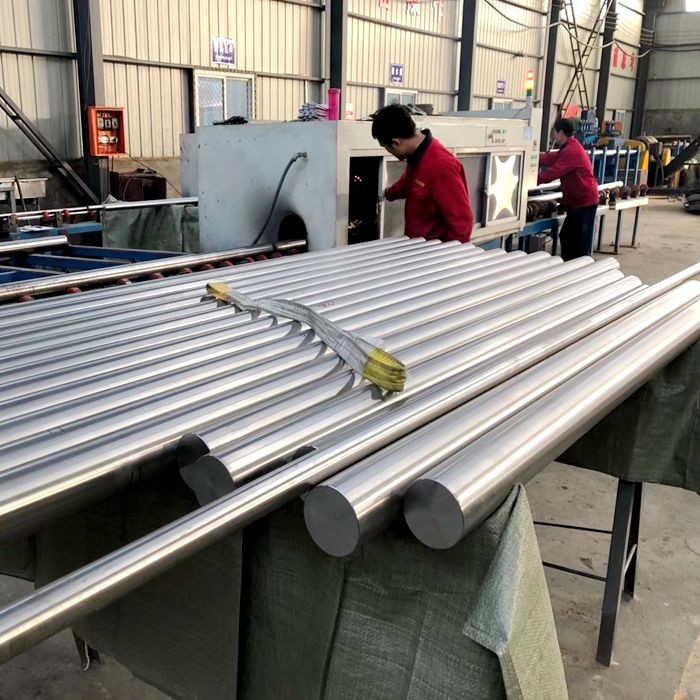

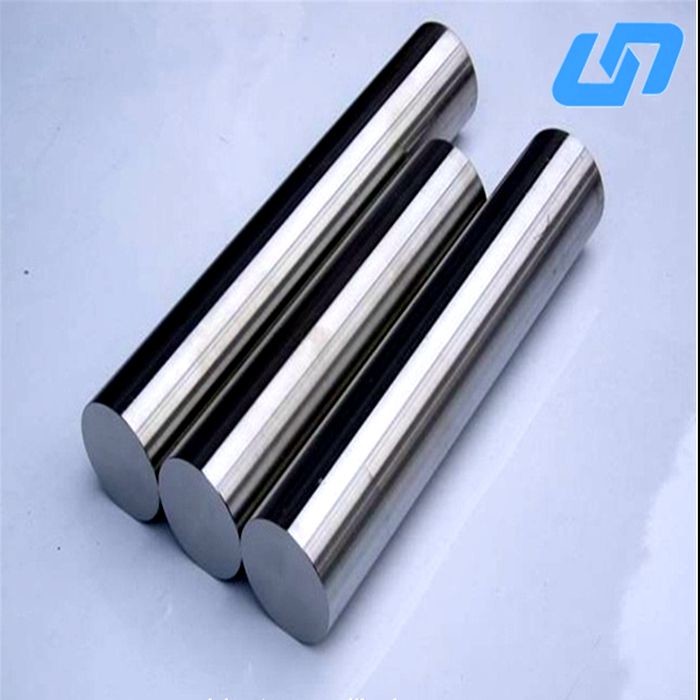

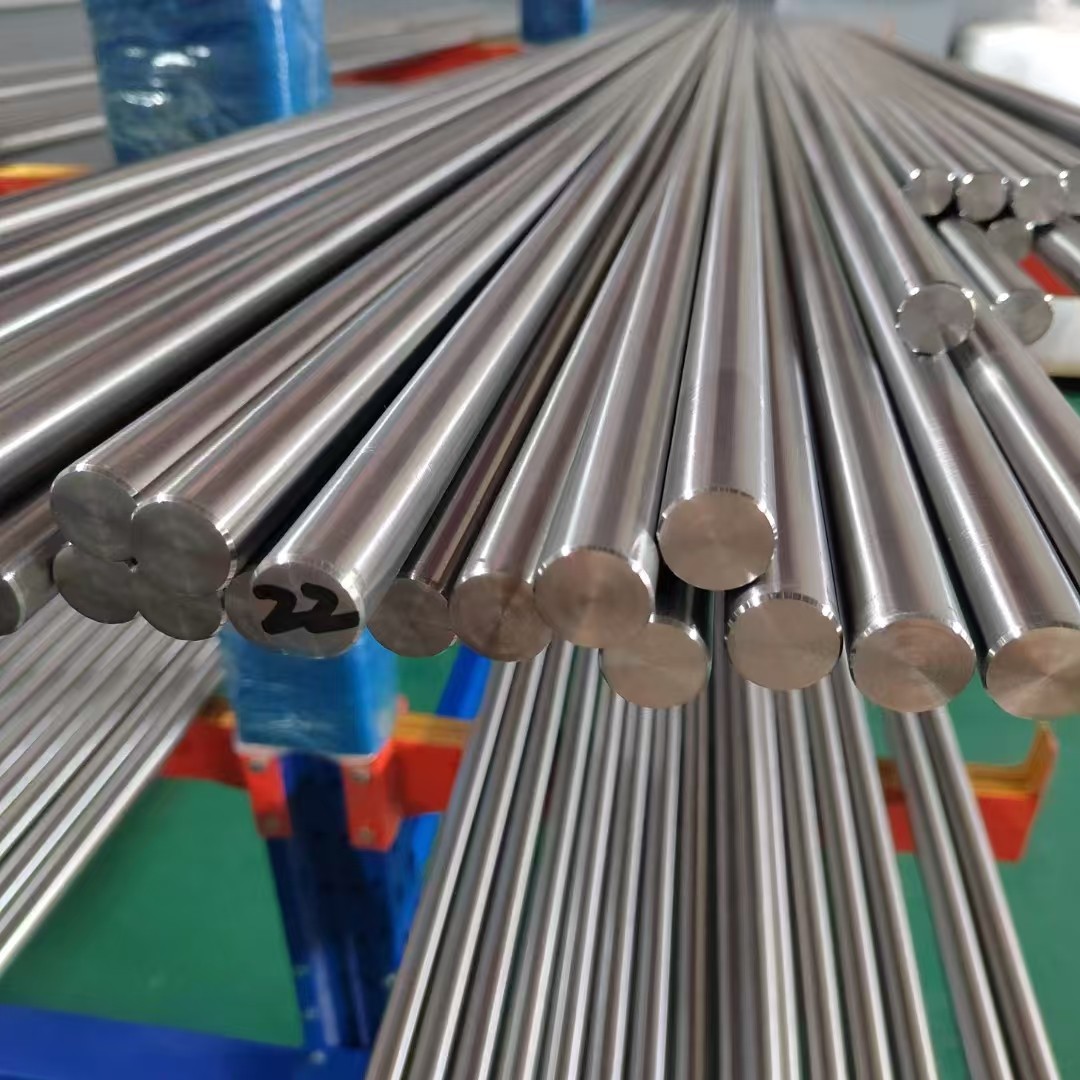

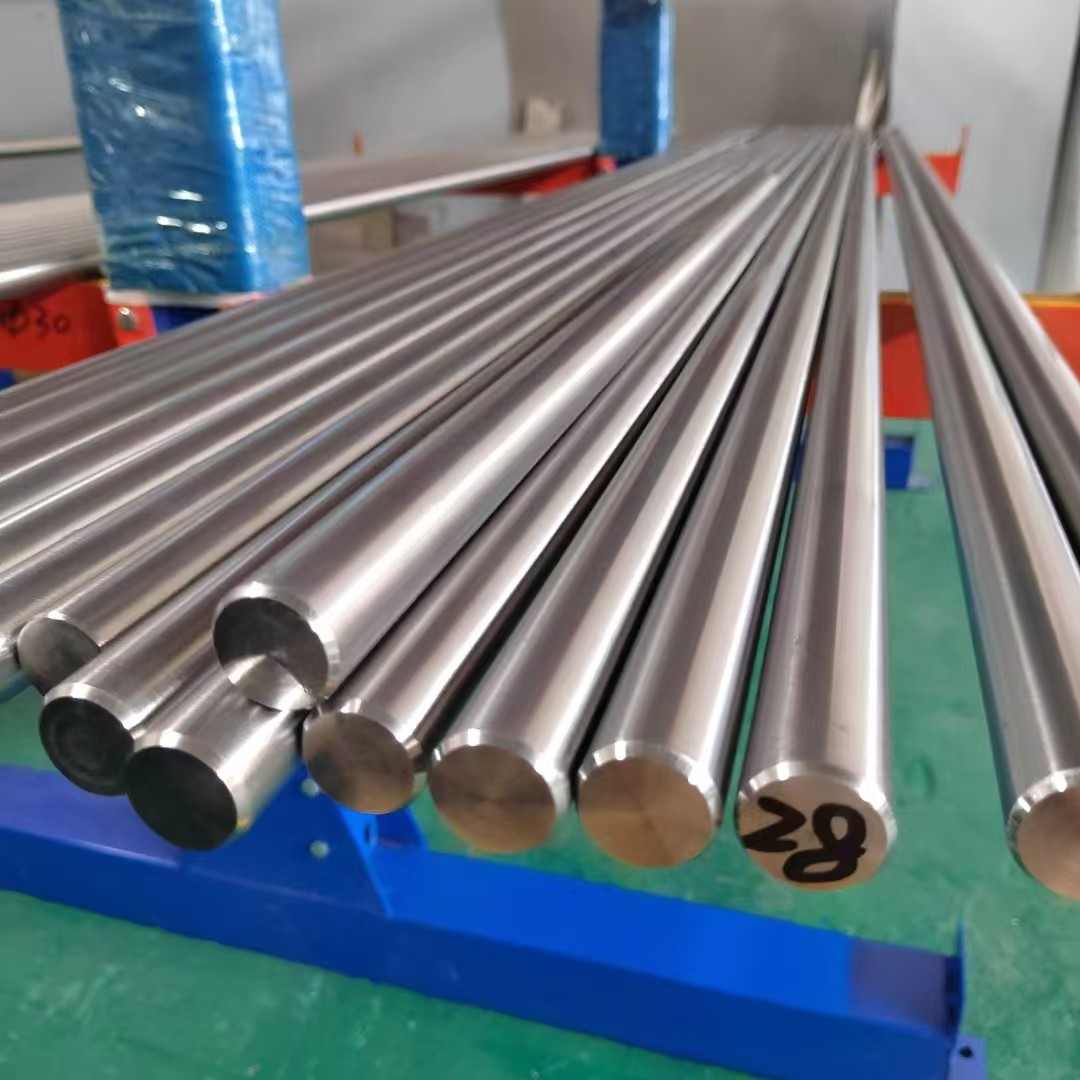

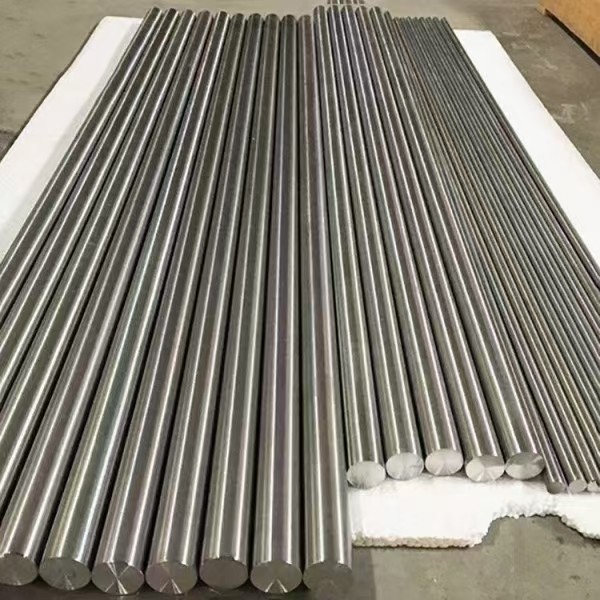

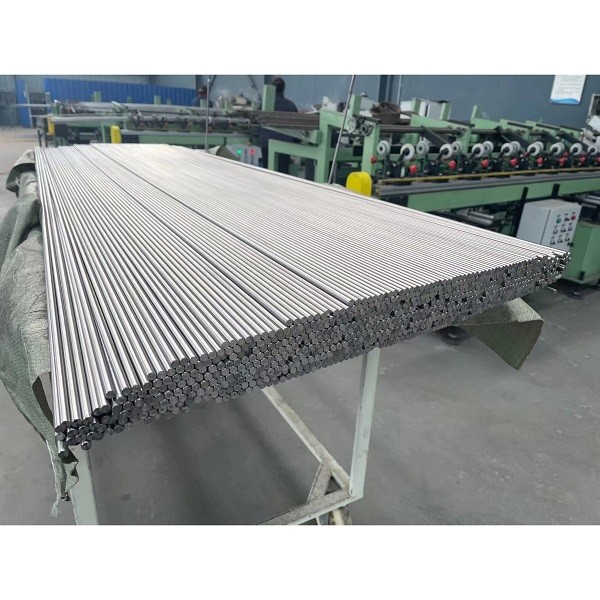

Titanium Medical Rod ASTM F136 Bar ISO13485 Sternal Sutures Artificial Joint

  • Titanium Medical Rod ASTM F136 Bar ISO13485 Sternal Sutures Artificial Joint
  • Titanium Medical Rod ASTM F136 Bar ISO13485 Sternal Sutures Artificial Joint
  • Titanium Medical Rod ASTM F136 Bar ISO13485 Sternal Sutures Artificial Joint
  • Titanium Medical Rod ASTM F136 Bar ISO13485 Sternal Sutures Artificial Joint
  • Titanium Medical Rod ASTM F136 Bar ISO13485 Sternal Sutures Artificial Joint
  • Titanium Medical Rod ASTM F136 Bar ISO13485 Sternal Sutures Artificial Joint
Place of Origin China
Brand Name Changsheng
Certification ISO 9001;2015
Model Number ASTM
Minimum Order Quantity 50kg
Price 15usd/kg
Packaging Details packed with export wooden case
Delivery Time 10-15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000T/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materials Titanium And Titanium Alloy Grade Grade 5, Ti-6al-4v-eli, Grade 23
Diameter 5-30mm, 35-70mm, 80-110mm, 120-900mm Length 1000-6000mm
Surface Acid Washing Surface Standard ASTM B348, ASTM F136
Model Ti Forged Block Width 400-3000mm, Max 2000mm, Customized,
Yield Strength 828 MPa Melting Point 1668°C
Elongation 10% Origin China Valley
Purity ≥99.7% Poisson Ratio 0.30
Key Words Titanium Square Bars Material Grade BT9
Size 12.7×12.7×4000mm Welding Wire Type MTG
Delivert Time 7-10days Product Namee ASTM B348 Titanium Round Bar
Highlight

Titanium Medical Rod 3mm

,

ASTM F136 Titanium Industrial Bar

,

Medical Titanium Round Rod
Leave a Message
Product Description

Description



Titanium Medical Rod ASTM F136 is a precision-engineered titanium alloy bar used in medical implants and surgical instruments. It offers an exceptional combination of high strength, biocompatibility, and corrosion resistance, making it ideal for orthopedic and surgical applications.

Manufactured in compliance with ASTM F136, ASTM B348, and ISO 13485 standards, this titanium rod (commonly Ti-6Al-4V ELI / Grade 23) ensures excellent mechanical performance and compatibility with the human body.
Typical applications include spinal fusion devices, orthopedic screws, plates, bone nails, and joint replacement components.

Key Features

Manufactured according to ASTM F136 / ISO 13485 standards

Excellent biocompatibility and corrosion resistance

High strength-to-weight ratio

Non-toxic and non-allergenic

Available in a wide range of diameters (3–16 mm and above)

Precision-machined and polished surface finish

Suitable for implant-grade and surgical instrument manufacturing

Specifications

Item Description
Material Grades Gr5 (Ti-6Al-4V), Gr5 ELI / Gr23 (Ti-6Al-4V ELI), Gr2
Standards ASTM F136, ASTM F67, ASTM B348, ISO 13485
Diameter Range 3 mm – 16 mm (customizable up to 600 mm)
Length 1000 mm – 6000 mm
Surface Finish Polished, Bright, or Ground
Tolerance H6–H9
Technique Forged and Rolled
Stock Availability Ø5–600 mm (ready stock)

Physical Properties

Grade Tensile Strength (MPa) Yield Strength (MPa) Elongation (%)
Gr1 240 170 24
Gr2 345 275 20
Gr4 550 483 15
Gr5 895 828 10
Gr7 400 275 18
Gr9 620 483 15
Gr12 483 348 18
Gr23 (ELI) 793 759 10

Chemical Composition (wt%)

Grade Fe max O max N max C max H max Pd max Al V Others
Gr1 0.20 0.18 0.03 0.08 0.015 — — — Ti Balance
Gr2 0.30 0.25 0.03 0.08 0.015 — — — Ti Balance
Gr4 0.50 0.40 0.05 0.08 0.015 — — — Ti Balance
Gr5 0.40 0.20 0.05 0.08 0.015 — 5.5–6.7 3.5–4.5 Ti Balance
Gr7 0.30 0.25 0.03 0.08 0.015 0.12–0.25 — — Ti Balance
Gr9 0.25 0.15 0.03 0.08 0.015 — 2.5–3.5 2.0–3.0 Ti Balance
Gr12 0.30 0.25 0.03 0.08 0.015 — 0.6–0.9 0.2–0.4 Ti Balance
Gr23 0.25 0.03 0.03 0.08 0.0125 — 5.5–6.5 3.5–4.5 Ti Balance

Applications

  1. Orthopedic Implants: Spinal fixation systems, bone plates, and bone screws

  2. Joint Replacement: Hip, knee, and shoulder prosthetics

  3. Surgical Instruments: Bone drills, reamers, saws, and chisels

  4. Dental Implants and Components

  5. Medical Devices: Pacemaker housings, stents, and defibrillator cases

  6. External Fixation Devices and Intramedullary Nails

  7. Research & Development: Used for testing biocompatibility and mechanical properties
