Custom large diameter zirconium crucible

  • Custom large diameter zirconium crucible
  • Custom large diameter zirconium crucible
Place of Origin China
Brand Name CSTY
Model Number Zr702,Zr703,Zr704,Zr705.Zr706
Minimum Order Quantity 1pcs
Price According to quantity
Packaging Details Clients’ requirement
Delivery Time 5-25 work days
Payment Terms L/C, T/T
Supply Ability 50000pcs/m

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Zr702,Zr703,Zr704,Zr705.Zr706 Color Silver
Customization Yes Sample Yes
Density 6.51 Surface Roughness Ra=1.6
High Light

Corrosion Resistance Zirconium Products

,

40ml Zirconium Crucible

,

1mm Thicknesses Zirconium Crucible
Leave a Message
Product Description

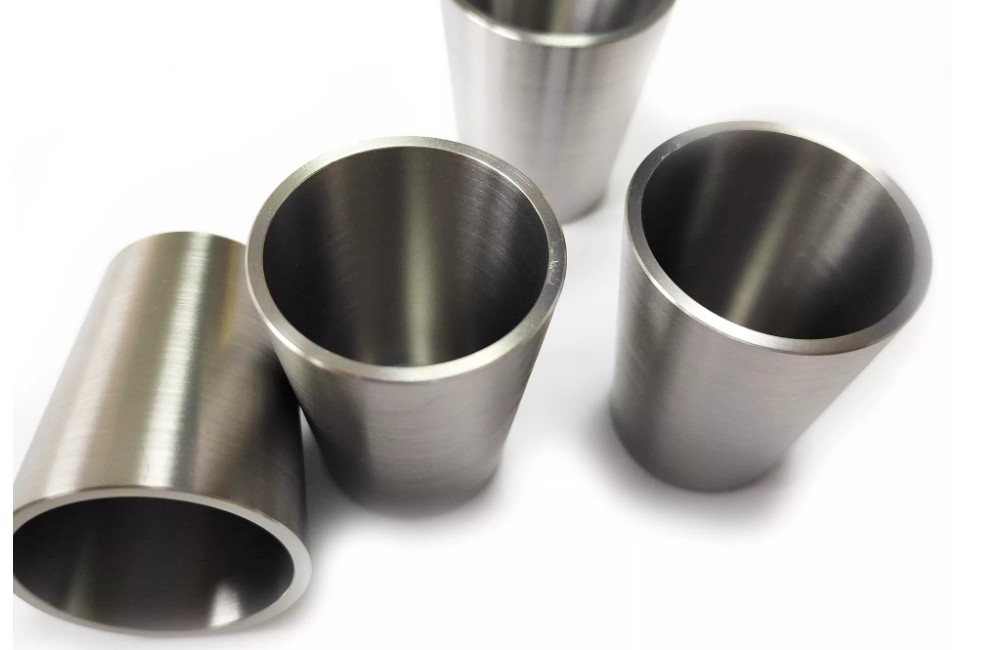

Custom large diameter zirconium crucible



Zirconium is a rare metal, with amazing corrosion resistance, extremely high meltin point, ultra-high hardness and strength and other characteristics, is widely used in aerospace, military, nuclear reaction, atomic energy fields. The melting point of zirconium is above 1800 degrees, and the melting point of zirconium dioxide is above 2700 degrees. Therefore, as an aerospace material, the performance of zirconium is greatly superior to titanium in alaspects.





Chemical composition



Grade Element composition(%)<
Zr+Hf Hf Fe+Cr Sn H N C Nb O
R60702 99.2 4.5 0.20 -- 0.005 0.025 0.05 -- 0.16
R60703 98 4.5 -- -- --0.005 0.025 -- -- --
R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18
R60706 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18



Dimension



Zirconium Crucible available in 1mm, 1.5 mm & 2mm as standard. Other thicknesses available upon request.



Zirconium Crucible Sizes
Capacity Top Diameter Bottom Diameter Height
35 mL 40 mm 33 mm 40 mm
42 mL 45 mm 35 mm 44 mm
50 mL 45 mm 40 mm 42 mm
58 mL 50 mm 38 mm 45 mm



Custom large diameter zirconium crucible 0



We can customize a variety of zirconium crucible.



packing


1. Packing with moisture-proof paper;
2. Packing with foam plastics in all sides;
3. Packing products in standard wooden cases.

Shipping


Various Mode of Transportation for You :
1. Air transportation
2. Sea transportation
3. By express mail: DHL, FedEx, EMS, UPS, SF-Express,etc.



Custom large diameter zirconium crucible 1


Your requirements about package and shipment will be welcome!
