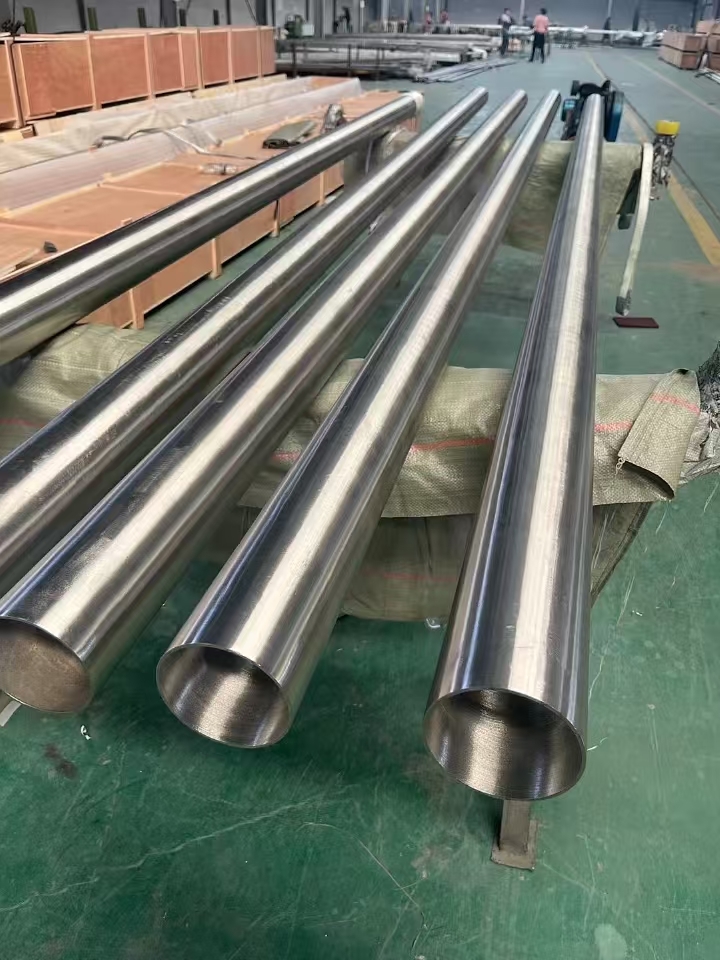

Zirconium 705 tube Zirconium alloy pipe for Industry

Place of Origin	China
Brand Name	Changsheng
Certification	ISO 9001;2015
Model Number	ASTM
Minimum Order Quantity	100kg
Price	50usd/kg
Packaging Details	packed with export wooden case
Delivery Time	10-15days
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000T/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Material	Zirconium Alloy	Grade	R60705/Zr 705
OD	6-108mm	Wall Thickness	1-5mm
Length	1000-6000mm	Density	6.51g/cm3
Surface	Bright	Standard	ASTM B523/B523M-2012a, ASTM B658 GB/26283
Highlight	Cold Rolled Seamless Zirconium Tube , Zr 705 Zirconium Tube , UNS R60705 Cold Rolled Seamless Tube

Leave a Message

Product Description

Description of Zirconium 705 Tube / Zirconium Alloy Pipe

Zirconium 705 tube is a high-performance zirconium–niobium alloy pipe known for its exceptional corrosion resistance, high melting point, superior mechanical strength, and excellent stability in extreme environments. As a rare metal material, Zirconium 705 is widely used in demanding industries such as aerospace, nuclear energy, chemical processing, and marine engineering.

Zirconium alloys exhibit a melting point of approximately 1800°C, compared to ~1600°C for titanium, while zirconium dioxide reaches an impressive 2700°C. These properties make Zirconium 705 tubes ideal for applications involving high temperatures, aggressive chemicals, and long-term structural reliability.

Zirconium 705 seamless pipes are commonly used in heat exchangers, condensers, pressure vessels, and nuclear fuel cladding, due to their superior resistance to corrosion, especially against strong acids and alkalis. Their excellent biocompatibility also allows their use in medical and dental applications.

Technical Specifications

1. Grades

ZR60702

ZR60705

2. Standards

ASTM B658

GB/T 26283

3. Dimensions

Outer Diameter (OD): 6.0–108 mm

Wall Thickness: 1.0–4.5 mm

Length: 2000–6000 mm

4. Straightness

≤ 3 mm per meter

Testing & Requirements

6. Flaring Test

Zr-1 zirconium tubes for heat exchangers must undergo a flaring test using a 60° tapered tool. After a 15% inner diameter expansion, the sample must show no cracking at the end.

7. Ultrasonic Testing

All tubes must be inspected by ultrasonic flaw detection. Acceptance criteria for standard U-shaped defects must comply with GB/T 12969.1.

8. Metallographic Structure

Recrystallised and annealed ZR1 tubes must have an average grain size no coarser than Grade 7, as specified in GB/T 6394-2002.

Chemical Composition (wt%)

Element	R60702	R60704	R60705
Zr + Hf, min	99.2	97.5	95.5
Hafnium, max	4.5	4.5	4.5
Fe + Cr	0.2 max	0.2–0.4	0.2 max
Tin	—	1.0–2.0	—
Hydrogen, max	0.005	0.005	0.005
Nitrogen, max	0.025	0.025	0.025
Carbon, max	0.05	0.05	0.05
Niobium	—	—	2.0–3.0
Oxygen, max	0.16	0.18	0.18

Mechanical Properties

Property	R60702	R60704	R60705
Tensile Strength, min (MPa)	380	415	550
Yield Strength, min (MPa)	205	240	380
Elongation (50 mm or 2 in), min (%)	16	14	16

Applications of Zirconium 705 Tube

Zirconium 705 alloy pipes are widely used in industries requiring extreme corrosion resistance, high purity, and durability, including:

Industrial Applications

Nuclear power systems

Chemical processing plants

Heat exchangers and condensers

Pressure vessels and reactor components

Piping systems transporting highly corrosive chemicals

Salt production and seawater equipment

High-Tech Applications

Aerospace and aviation components

Marine engineering

Electronics manufacturing

Medical & Biotech

Medical implants

Dental components

Surgical equipment

Key Performance Advantages

Outstanding corrosion and erosion resistance

Non-magnetic and non-sparking

High temperature resistance

Long service life and reliability

Excellent structural stability
