Customized Titanium Sheets Plates Gr2 Gr5 Gr7 Gr12 for Your Specific Requirements
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001:2015 |
| Model Number | Titanium Sheet and Titanium Plate |
| Minimum Order Quantity | 10 kg |
| Price | USD 14.0/kg - USD 18.0/kg |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 3-5 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 60 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Titanium Metal | Standard | ASTM B265 ASTM F136 AMS4911 |
|---|---|---|---|
| Applications | Oil, Marine, Petrochemical, Power Plant, Machining | Supply State | Annealed |
| Sizes | 0.4mm To 100mm | Certification | ISO9001:2015 |
| Advantages | Competitive Price, Short Lead Time And On-time Delivery | Inventory | 0.5mm ~100mm, Various Sizes In Stock |
| Key Word | Titanium Sheet Leading Exporter | ||
| Highlight | Gr7 Titanium Sheets Plates,Gr12 Titanium Sheets Plates,Customized Titanium Sheets Plates |
||
Product Description
Customized Titanium Sheets Plates Gr2 Gr5 Gr7 Gr12 for Your Specific Requirements
We offer the widest range of titanium sheet and titanium plate in Grade, dimensions and standards. Titanium sheet and titanium plate dimension range is from a thickness as low as 0.4 mm and lengths up to 6000 mm by width of 2800 mm. Contact us now for the latest in titanium sheet prices and availability.
Titanium plate and titanium sheets are manufactured in compliant with international standards and specifications and under the highest level of quality control. Chemical composition, tensile strength, yield strength, elongation, and hardness are fully tested independently. At the same time, we can offer waterjet cutting, laser cutting, drilling, sandblasting, mirror surface and other services as per clients special requests.
Titanium Sheet Production Capability
The tabulation below provides a summary overview to the production capability.
- Production standard: ASTM B265, ASME SB265, AMS 4902, AMS4901, AMS4911, ASTM F136, ASTM F67
- Titanium Grades: Gr 1, 2, 3, 4, 5(6Al-4V), 7(Ti-0.15Pd), 9(3Al-2.5V), 12, 23(6AL-4V ELI), 15V-3Al-3Sn-3Cr,etc,.
- Titanium Sheet Dimensions: Thickness: 0.4 – 300 mm, Length: 1000 – 6000 mm, Width: 400 – 2800 mm
- Titanium Sheet Surface Finishes: Polished, Mill, Pickling, Painted, Sandblasted
- Services offered: Waterjet cutting, laser cutting, welding, shape cutting, drilling, etc,.
|
Material |
Application |
Specification |
Grades |
|
Titanium |
Commercial |
ASTM B265 / ASME SB265 |
Gr1/Gr2/Gr4/Gr5/Gr7/Gr9/Gr11/Gr12/Gr16/Gr17/Gr23,etc,. |
|
|
Medical |
ASTM F67/ASTM F136 ISO 5832-2/ISO 5832-3 |
Gr1/Gr1 Eli/Gr2/Gr3/Gr4/Gr5 Eli |
|
|
Aerospace |
AMS 4901 AMS 4902 AMS 4911 |
Gr5 Ti15333 |
Mechanical Properties of of Titanium Plate (Min.)
| Grade |
Alloy composition |
Tensile strength |
Yield strength |
Elongation % |
||
|
ksi |
Mpa |
ksi |
Mpa |
|||
|
GR1 |
Unalloyed Ti(Pure)35A-CP1 |
35 |
240 |
25 |
170 |
24 |
|
GR2 |
Unalloyed Ti(Pure)50A-CP2 |
50 |
345 |
40 |
275 |
20 |
|
GR4 |
Unalloyed Ti(Pure)80A-CP4 |
80 |
550 |
70 |
483 |
15 |
|
GR5 |
Ti 6Al 4V |
130 |
895 |
120 |
828 |
10 |
|
GR7 |
Ti-Pd |
50 |
345 |
40 |
275 |
20 |
|
GR9 |
Ti 3AI 2.5V |
90 |
620 |
70 |
483 |
15F |
|
GR12 |
Ti-0.3Mo-0.8Ni |
70 |
483 |
50 |
345 |
18 |
Titanium sheet and titanium plate offer a combination of high strength, light weight, formability and corrosion resistance which have made it a most common used high temprature titanium plate and sheet for shipbuilding, aerospace industry, power plants, desalination, metal fabricating industries.
Due to customization, please contact us for satisfying your individualized requirement!
Titanium Sheet Appliactions
Titanium sheet is widely used in heat exchangers and reaction towers in the petrochemical industry, they are also used extensively in automobile industry, paper pulp production, fertilizer production, fiber production, and in electrochemical and desalination processing. Titanium plates are also widely used as the electrolytic plate in the electrolysis and sewage dilution industries. Titanium plates also have a number of marine applications being used widely in the production of propulsion systems, power systems, electronic information systems and auxiliary systems etc.
Titanium Metal Products Characteristics
Titanum sheet is used in a wide range of applications. It can be found in applications needing the very blending of weight and strength and harsh environment. Titanium plate and sheet characteristics can be summed up by:
- Ti sheets have an excellent corrosion resistance & excellent elongation capabilities;
- Ti sheets have a low density and light weight;
- Ti sheets and plates have high strength;
- Titanium has high / low temperature resistance and excellent for use in extreme conditions;
- Titanium is non-mangnetic, non-toxic;
- Titanium is recyclable, environmentally friendly.

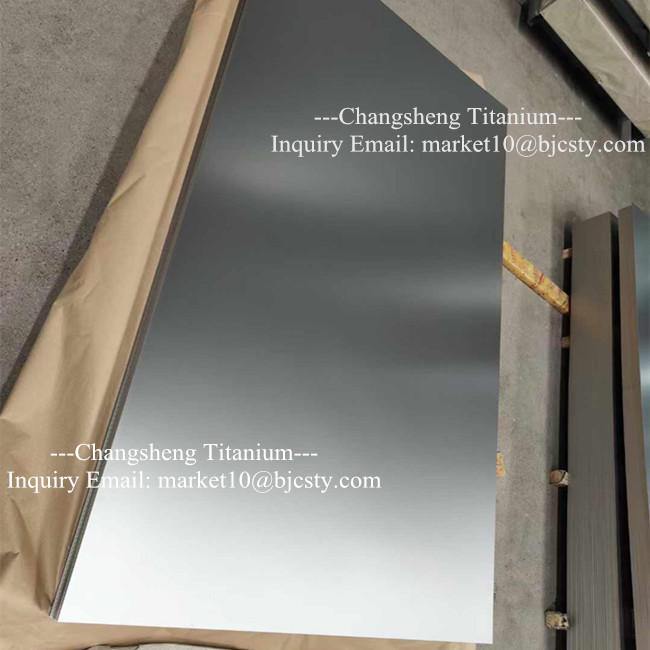

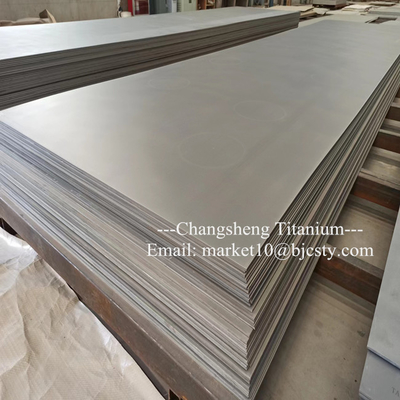

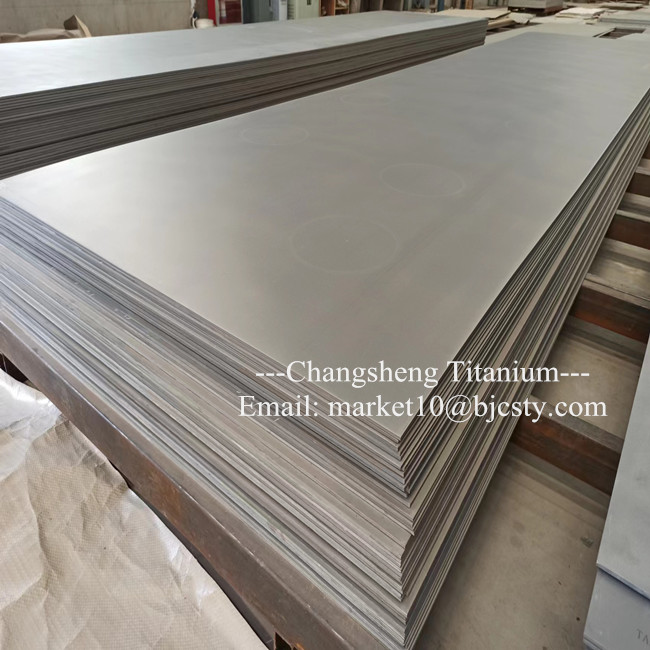

Titanium Plate Picture
Tags: Titanium Plates Supplier, Titanium Alloy Sheets, Gr2 Titanium plates
