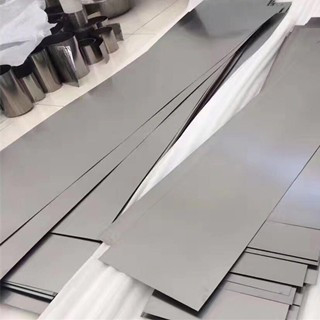

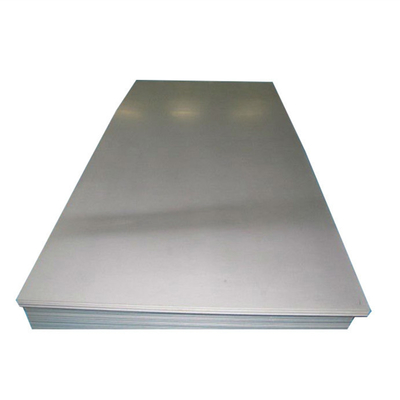

Acid Washed ASTM F136 Titanium Alloy Sheet width 400mm To 1000mm for medical
Place of Origin | China Baoji |
---|---|
Brand Name | CSTY |
Certification | ISO9001 |
Model Number | CSTY-PL |
Minimum Order Quantity | 1kg |
Price | 28-100USD/Kg |
Packaging Details | Caroton Boxes or Export Wood Case Or As Client Requried |
Delivery Time | 15-30days |
Payment Terms | T/T, L/C or Negotiation |
Supply Ability | 30Tons per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Titanium Grade 5 Eli | Standard | ASTM F136 |
---|---|---|---|
Width | 400-1000mm | Thickness | 0.01-3.0mm |
Length | ≤3000mm | Surface | Polished Or Acid Wash |
Highlight | ASTM F136 Titanium Alloy Sheet,400mm Titanium Alloy Sheet,1000mm titanium sheet plate |
ASTM F136 Titanium Plate Titanium Alloy Sheet for medical
Surgical implants with Ti 6al 4v eli (ultra low clearance)alloy material standard specification(UNS R56401)
Finish- implant manufacturers of metal products, furnished as descaled , as pickled, as sand blasted, chemical milling, grinding, machining, peeling, polishing these combination, operation or method specified by yours
Condition-annealed or cold-work.
Dimension range:
(0.3 ~3.0) × (400 ~1000) × ≤ 3000mm
(0.1~0.3) × (100 ~500) ×L mm
(0.02~0.1) × (50~300) ×Lmm
Surface treatment:Polishing, anodizing, vacuum coating
Application: Medical titanium plates and alloy titanium are used to manufacture for implanting medical devices, prostheses or artificial organs and auxiliary treatment equipment in the human body. There are mainly Ti 6 Al 4V, Ti5Al2.5Sn, Ti6Al4V ELI and other alloys. They have high specific strength, mechanical properties close to human bones, far superior to pure titanium, and also have the characteristics of fatigue resistance, corrosion resistance and excellent biocompatibility.
Medical titanium plates are widely used in various artificial joints, artificial bones, bone fixation devices, dentures, dental implants, fixed bridges, etc. Medical titanium plates are used in a wide range of medical applications. In many artificial bone materials, medical titanium plates have become an indispensable part of medical devices.
Parallel spacing(mm) |
Tensile Strength Min,(Mpa) |
Yield Strength (0.2% offset) min(Mpa) |
Elongation in50mm, Min,% |
Bend Test | |||
L | LT | ST | Under 1.778mm in thickness | 1.778 to 4.75mm in thickness | |||
W<4.75 | 860 | 795 | 10 | - | - | 9T | 10T |
4.75~44.45 | 860 | 795 | 10 | - | - | - | - |
44.45~63.50 | 825 | 760 | 8 | - | - | - | - |
63.50~101.60 | 825 | 760 | 8 | 8 | 8 | - | - |
