ASTM B265 Ti6Al4V Gr5 Titanium Plate Full Length Custom Size Titanium Alloy Sheet
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001:2015 |
| Model Number | Ti6Al4V Gr5 Titanium Plate |
| Minimum Order Quantity | 10 kg |
| Price | USD 25.0/kg - USD 35.0/kg |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 3-5 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 60 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Titanium Ti6Al4V, UNS R56400, Ti Gr5 | Standard | ASTM B265 |
|---|---|---|---|
| Applications | Oil, Marine, Petrochemical, Power Plant, Machining | Supply State | Annealed |
| Sizes | 0.5mm To 100mm | Certification | ISO9001:2015 |
| Advantages | Competitive Price, Short Lead Time And On-time Delivery | Inventory | 0.8mm ~100mm, Various Sizes In Stock |
| Key Word | Ti 6Al4V Alloy Titanium Plates | ||
| Highlight | Full Length Titanium Alloy Sheet,Custom Size Titanium Alloy Sheet,ASTM B265 Titanium Alloy Sheet |
||
Product Description
ASTM B265 Ti6Al4V Gr5 Titanium Plate Full Length Custom Size Titanium Alloy Sheet
We have large inventory of titanium alloy plate in titanium Grade 5, Ti6Al4V Gr5 titanium plates are workhorse of so many titanium grades materials. Gr5 titanium alloy plate is widely used in petrochemical, marine, offshore, power plant, aerospace, metallurgy, sports and many other fields.
As a leading supplier of titanium plate in China, we have ASTM B265 titanium plate, ASME B265 titanium plate, AMS 4911 titanium plate, and medical grade ASTM F136 titanium plate. The titanium plates we have are in great surface, super mechenical properties, excellent welding performance and accurate dimensions. 6Al-4V per ASTM B265 for Titanium Sheet, Strip, and Plate in the Annealed Condition. We offer both Gr5 Ti6Al4V and Gr23 Ti6Al4V Eli sheet and plate. Titanium plates are well know for it's good heat resistance, corrosion resistance, elasticity resistance and formability.
Gr5 Titanium Plates and Titanium Sheets Sizes:
Thickness: 0.5mm ~100mm
Width: max. 2500mm
Length: max. 5000mm
Surface: pickling surface, milled surface, sandblasting surface, bright surface, etc,.
Standard: in compliant with ASTM B265, ASTM F136, AMS 4911, etc,.
Services offered: Waterjet cutting, laser cutting, welding, shape cutting, drilling, etc,.
Mechanical Properties of of Ti6Al4V Titanium Plate (Min.):
| Grade | Thickness(mm) | Tensile Strength | Yield Strength |
| Gr.5 6Al-4V | 0.8~25.0 | ≥895MPa | ≥830MPa |
6Al-4V is known as the workhorse of the aerospace industry because it is by far the most common Titanium alloy. 6Al-4V is 30% stronger than steel while with the weight 50% lighter. Commonly referred to as Ti 6AL-4V (or Ti 6-4), this designation refers to its chemical composition of almost 90% titanium, 6% aluminum, 4% vanadium, 0.25% (max) iron and 0.2% (max) oxygen. 6Al-4V is an alpha-beta alloy. Ti 6Al-4V offers a combination of high strength, light weight, formability and corrosion resistance which have made it a most common used high temprature titanium alloy plate and sheet for shipbuilding, aerospace industry, power plants, desalination, metal fabricating industries.
6Al-4V Plate Thickness ranges from >4.75mm to 60mm Thick, hot rolling.
6Al-4V Sheet Thickness range from 0.3mm to 6.0mmThick, cold rolling.
Due to customization, please contact us for satisfying your individualized requirement!
Titanium Plate Ti-6-4 Types
Anti-corrosion titanium alloy plate
Heavy titanium plate
Thin titanium sheet
Spectacle titanium sheet Gr5
UNS R56400 titanium plate
High strength titanium sheet
High temperature titanium plate
Aerospace titanium plate
Custom titanium sheet and plate
Our Services & Strength
1-Set up from 2001, more than 20 years manufacturering experiences in titanium industry.
2-Two real factory entitle, two complete production line of titanium bar and titanium tube, keep sure the high quality and delivery time.
3-ISO Quality Management System, and exclusive letters patent in titanium tube.
4-Professional 2 foreign sales teams, started 2008 years, 12 years service experiences.
3-ISO Quality Management System, and exclusive letters patent in titanium tube.
4-Professional 2 foreign sales teams, started 2008 years, 12 years service experiences.
5-Short lead time and on-time delivery.

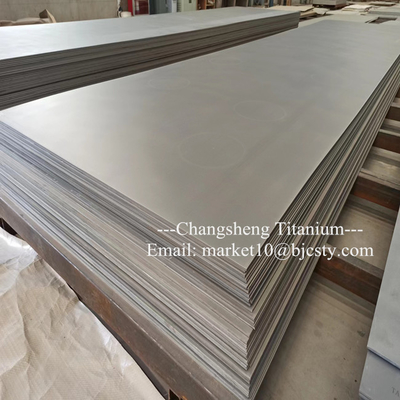

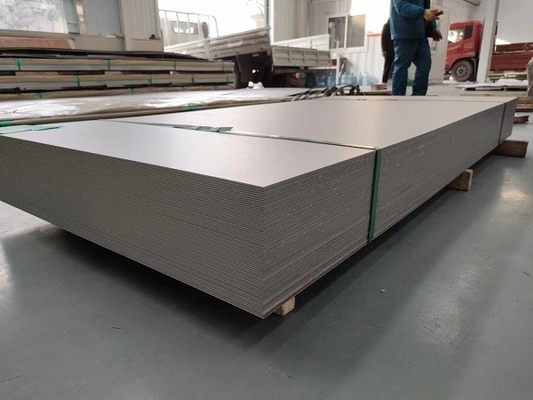

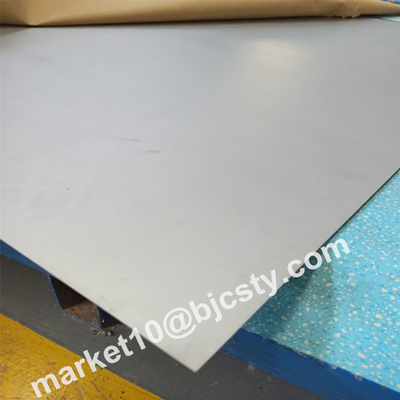

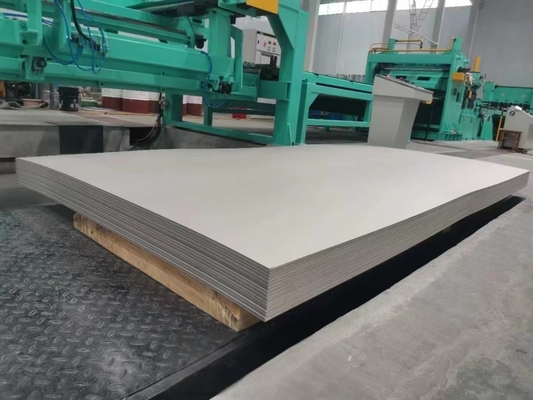

Gr.5 Titanium Plate Picture
Tags: Gr5 Titanium Plate, Grade 5 Titanium Alloy Sheet, High quality Titanium plates
