Ti Foil 0.05mm Titanium Grade 2 Foil In Roll ASTM F67 Annealed Stocks
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001:2015 |
| Model Number | 0.05mm Ti-Foil Titanium Gr2 Foil |
| Minimum Order Quantity | 10 kg |
| Price | USD 100.0/kg - USD 105.0/kg |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | 0.05mm Titanium Foil Grade 2 | Material | Commercially Pure Titanium Grade 2 |
|---|---|---|---|
| Foil Thickness | 0.05mm | Standard | ASTM F67 |
| Applications | Precision Components, Medical Devices, Panel,etc,. | Supply State | Bright And Vacuum Annealing |
| Certification | ISO9001:2015 | Advantages | SUper For Stamping And Engraving Process |
| Inventory | Large Inventory | Key Word | 0.05mm Medical Standard Titanium Foil In Stock |
| Highlight | Annealed Titanium Grade 2 Foil,ASTM F67 Titanium Grade 2 Foil,0.05mm Titanium Grade 2 Foil |
||
Product Description

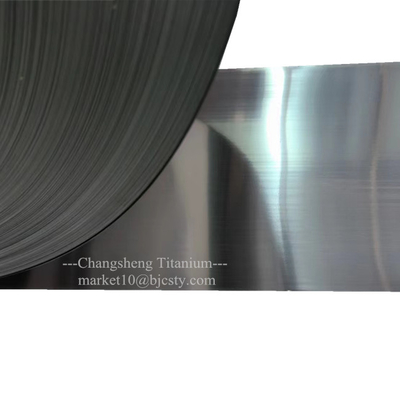

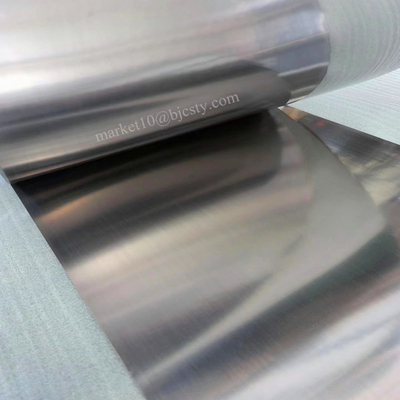

Ti Foil 0.05mm Titanium Grade 2 Foil In Roll ASTM F67 Annealed
Cold rolling surface foil in titanium Grade 2, with foil thickness 0.05mm, and in compliance with ASTM F67 medical standard for surgical implant applications and medical devices, as one of the top titanium supplier in China, we supply top quality titanium foils all over the world for more than 20 years. Annealing titanium foil produced by high lever titanium sponge material, with first-class equipments, mature and advanced processing technology, our 0.05mm medical titanium foil born with excellent performances. Our 0.05mm titanium foil strip no dents, no creases, no scratches, no welding, and carfully packed in roll.
Titanium Foil Specifications
| Product | Thickness | Width | Type | Supply Condition | Specs In Stock |
| Gr2 Titanium Foil | 0.05mm | max.320mm |
Foil in coil Foil in flat sheet |
Annealing | 0.05mm x 130mm |
Due to customization, foil in coil or in flat sheet are both ok, please contact us for satisfying your individualized requirement!
Titanium Foil Chemical Requirements
| ASTM F67 Chemical Requirements | |
| Element | Composition, %(mass) |
|
Grade 2 UNS R50400 |
|
| Nitrogen, max | 0.03 |
| Carbon, max | 0.08 |
| Hydrogen, max | 0.015 |
| Iron, max | 0.30 |
| Oxygen, max | 0.25 |
| Titanium | balance |
Features Of Titanium Foil
Commercially Pure Titanium Grade 2 has moderate strength and excellent cold forming properties. It provides excellent welding properties and has excellent resistance to oxidation and corrosion. Corrosion resistance in chemical and maritime industries, plate heat exchangers, reaction vessels, evaporators, condensers, electroplating equipment, desalinization plants and seawater heaters, medical equipment and structural engineering.
1. Grain size: above Grade 11
2. X-ray on-line thickness measurement, ADc automatic control
3. Large stock
4. Vacuum annealling
5. It is heat treatable and is known for its excellent strength to weight ratio, high corrosion resistance, and weldability. Titanium foil is used in a variety of applications including aerospace components, medical implants, and sporting equipment. It is a popular choice for use in 3D printing due to its unique properties.
6. Biocompatibility. ASTM F67 titanium foil due to the well characterrized level of biological response have been emplyed successfully in human implant applications in contact with soft tissuew and bone for over a decade.
7. It is also used in components for automotive and marine applications due to its high strength and low weight.
Our Services & Strength
1-Set up from 2001, nearly 20 years manufacturering experiences in titanium industry.
2-Two real factory entitle, two complete production line of titanium bar and titanium tube,
keep sure the high quality and delivery time.
3-ISO Quality Management System, and exclusive letters patent in titanium tube.
4-Professional 2 foreign sales teams, started 2008 years, 12 years service experiences.
3-ISO Quality Management System, and exclusive letters patent in titanium tube.
4-Professional 2 foreign sales teams, started 2008 years, 12 years service experiences.
5-Short lead time and on-time delivery.
Information of ASTM F67 Standard
ASTM F67---Standard specification for unalloyed titanium, for surgical implant applications (UNS R50250, UNS R50400, UNS R50550, UNS R50700). This specification covers the chemical, mechanical, and metallurgical requirements for four grades of unalloyed titanium used for the manufacture of surgical implants.

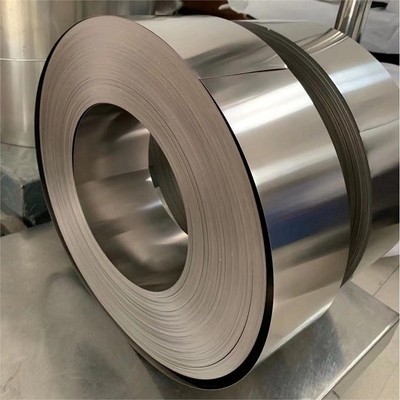

Titanium Foil In Coil
Tags: ASTM F67 titanium foil, 0.05mm titanium foil, Gr.2 titanium foil
