Titanium Blind Exhaust Flange Alloy Natural Gas Pipe Fittings Flange For Industry
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Surface | Polished, Acid Pickled, Bright Finish | Technics | Forged Casting |
|---|---|---|---|
| Material | Titanium | Type | Moulding Press |
| Standards | ASME B16.5, ASME B16.47, MSS SP-44 | Package | Wooden Cases, Wooden Pallet, Etc. |
| Working Temperature | -60°C~250°C | Grade | Grade 2 (Ti-2) And Grade 5 (Ti-6Al-4V) |
| Surface Process | Sandblasting, Pickling | Color | Bright Silver |
| Pressure Class | 150#~2500# | Din | PN6,PN10,PN16,PN25 Though PN250 |
| Standard | ASME/ANSI B16.5,DIN2630~2633,BS Etc | Corrosion Resistance | Excellent |
| Key Words | Eccentric Titanium Reducer | ||
| Highlight | Industry Titanium Blind Exhaust Flange,Alloy Titanium Blind Exhaust Flange,Titanium Gas Pipe Fittings Flange |
||
Product Description
Description

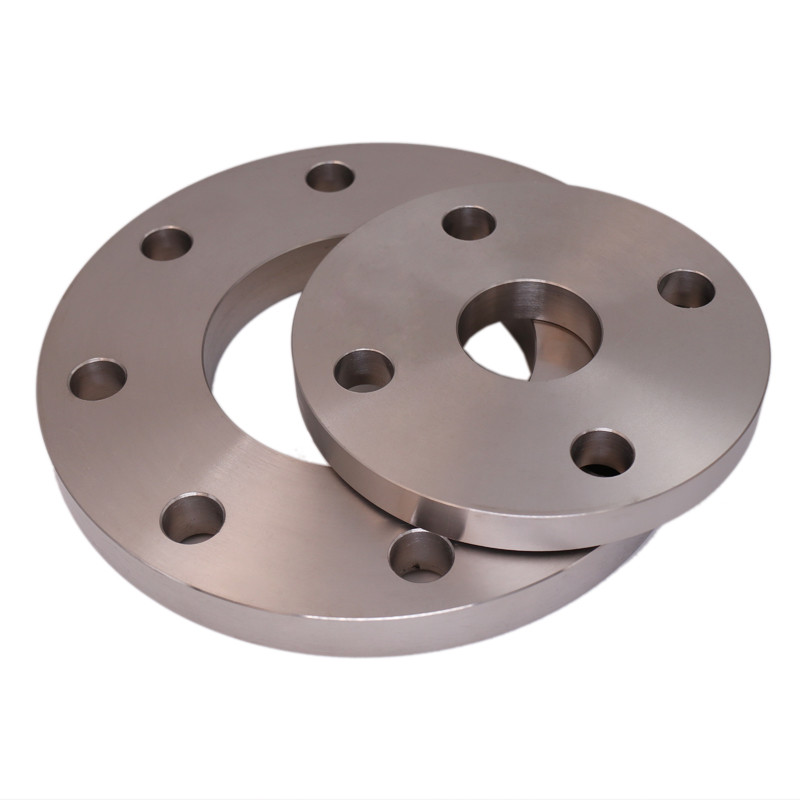

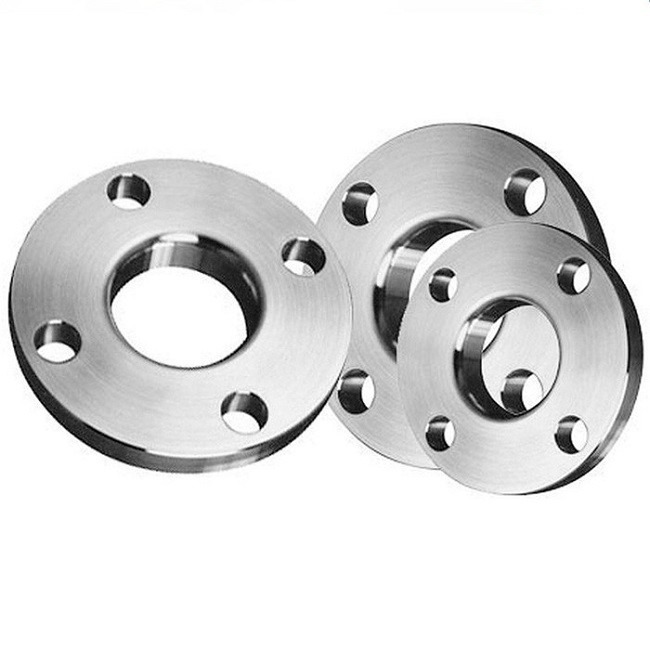

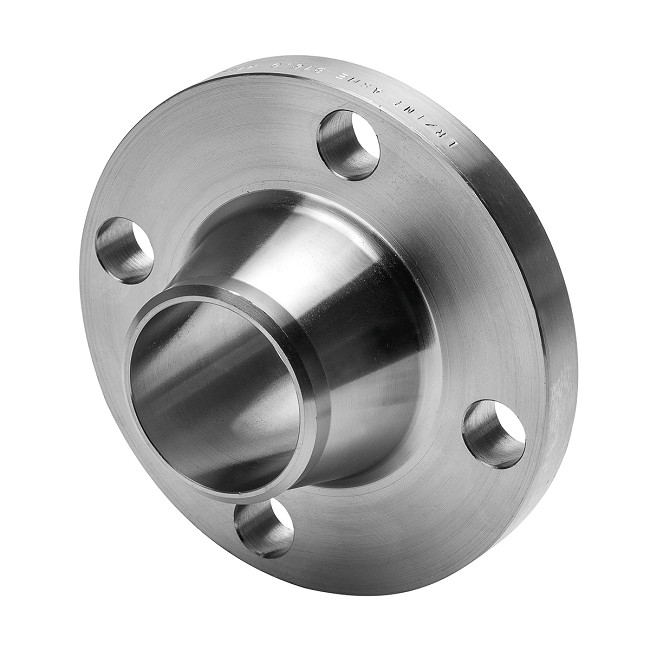

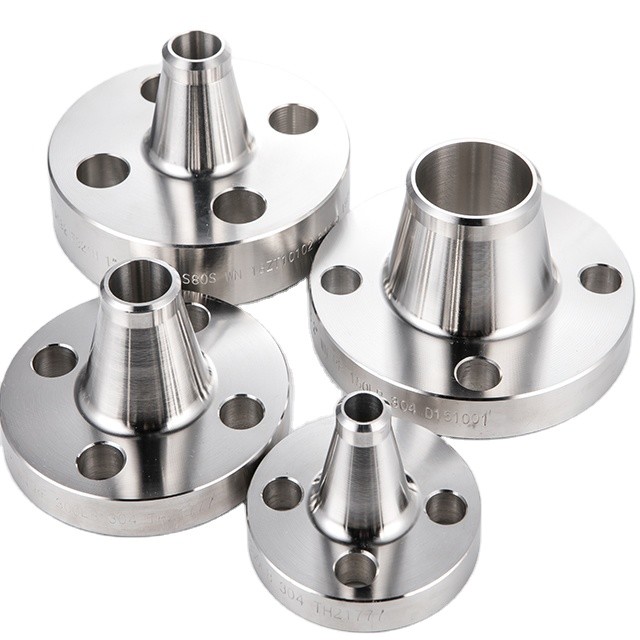

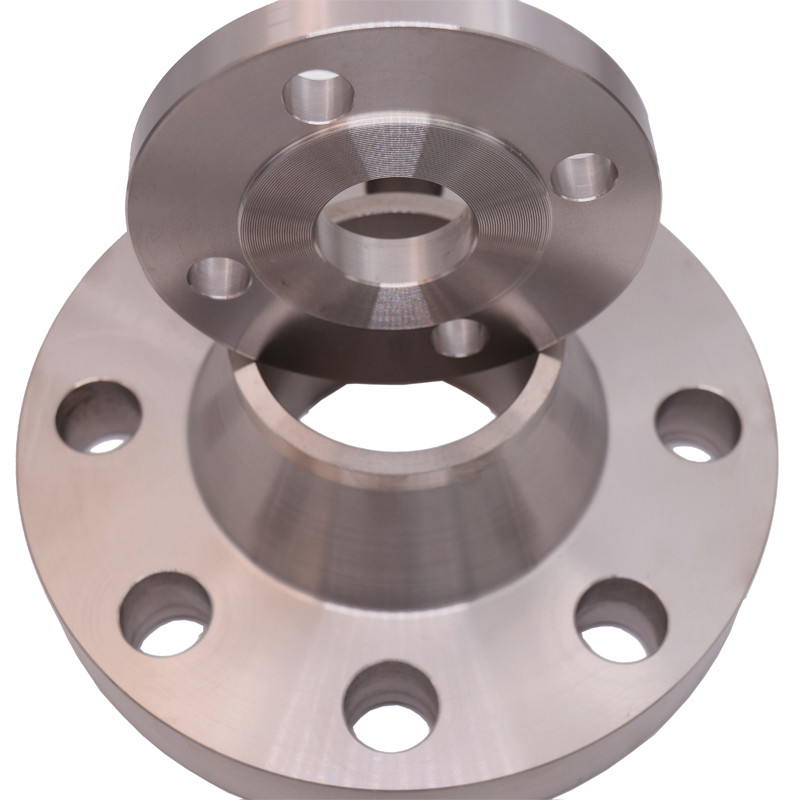

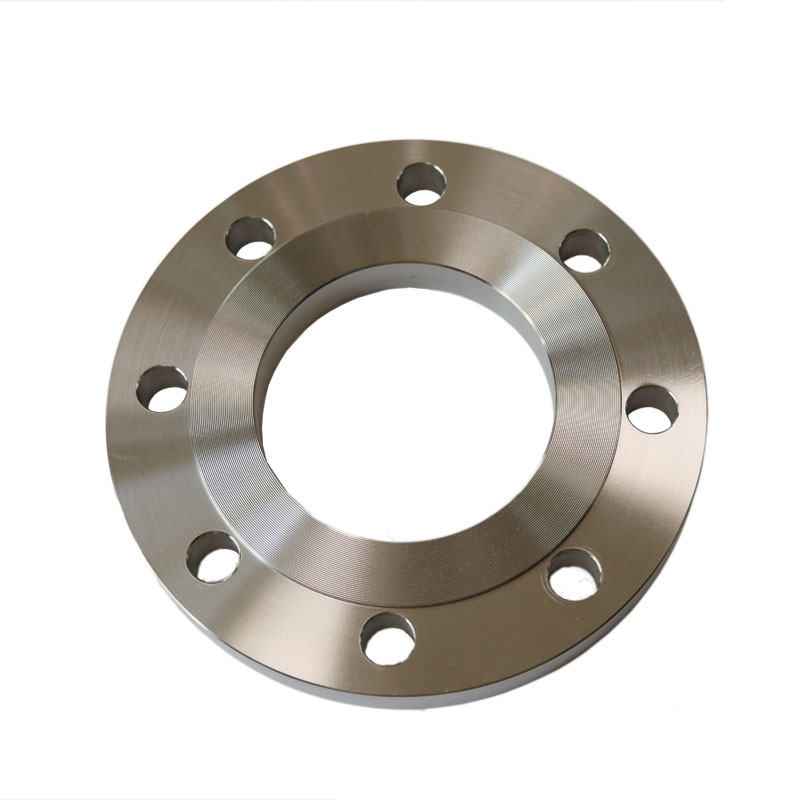

Titanium flanges are precision components made from non-ferrous titanium or titanium alloys, primarily used to connect pipes, valves, pumps, and other equipment in piping systems.
They are highly valued for their excellent corrosion resistance, acid and alkali resistance, long service life, and smooth, clean surfaces, making them suitable for chemical, petrochemical, marine, and industrial applications.
Specification
| Item | Description |
|---|---|
| Product Name | Titanium Flange |
| Material | Pure Titanium & Titanium Alloys (Gr1, Gr2, Gr5, Gr7, Gr9, Gr12, etc.) Also available: Pure Nickel, Inconel Alloy, Zirconium & Zirconium Alloy, Monel, Hastelloy, Incoloy Alloy |
| Standards | ANSI B16.5, ASTM B16.5, ASME B16.47, JIS B2220, DIN 2627–2628 AWWA, ASTM A182, ASME SA182 |
| Dimensions | 1/2" – 60" NB (NPS 1/2 – NPS 24 / DN 10 – 2000) |
| Pressure Class | PN0.25 – 32 MPa DIN: PN6, PN10, PN16, PN25, PN250 ANSI: 150#, 250#, 300#, 400#, 500#, 600#, 900#, 1500#, 2500# |
| Special Functions | Corrosion resistance, high-pressure resistance |
| Flange Surface Type | FF (Flat Face), RF (Raised Face), TG (Tongue & Groove), RJ (Ring Joint), MFM (Male & Female Face) |
| Applications | Chemical, Petroleum, Machinery, Industrial Equipment |
Advantages
-
Low density with high specific strength
-
Excellent corrosion resistance
-
Good heat resistance
-
Outstanding low-temperature performance
-
Non-magnetic and non-toxic
-
Good thermal stability
-
Low elastic modulus for reduced deformation
Applications
Mechanical equipment – corrosion-resistant joints and fittings
Electroplating and chemical equipment – durable in aggressive environments
Medical treatment and biocompatible systems
Precision parts and high-performance industrial assemblies
Aerospace components – aircraft engine compressors and structural parts
Defence and space – rockets, missiles, and high-speed aircraft structures
