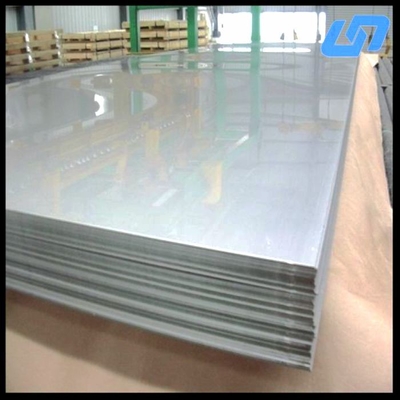

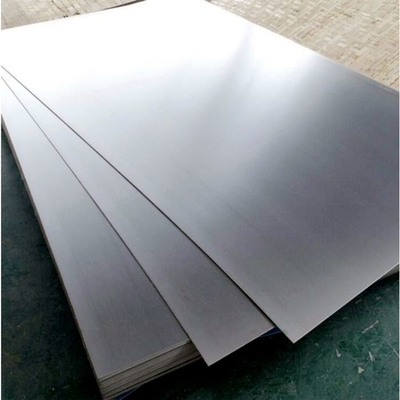

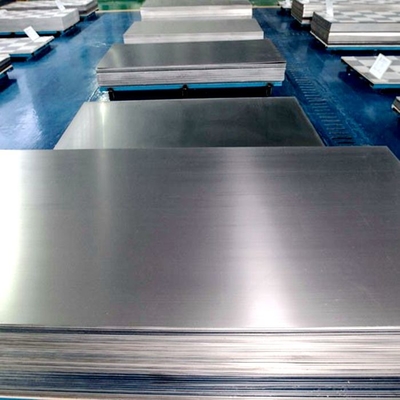

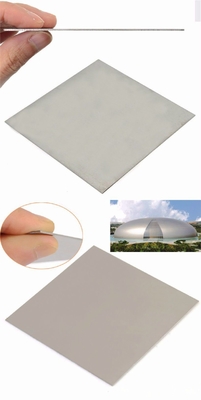

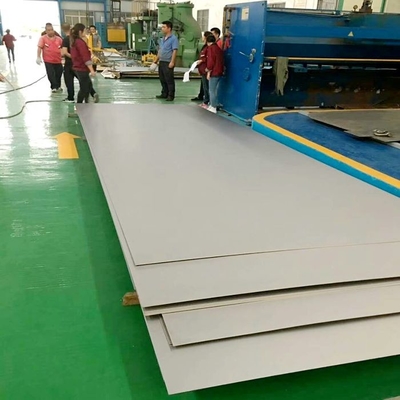

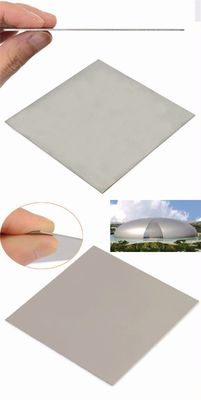

Laser Cutting Ams 4911 6al-4v Grade 5 Titanium Sheet For Medical Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Production Standards | ASTM B265, ASME SB265 | Wall Thickness | 0.3-20mm |
|---|---|---|---|
| Stanndard | ASTM B265 | Shape | Coil Or Flat |
| Processing Service | Bending ,Cutting | Size | Regular 1000*2000mm Or As Your Required |
| Thickeness | 0.5-20mm | Technical | Rolling And CNC |
| Stock Size Eg | Thickness 5mm X 1510mm In Width | Technique | Rolling, CNC |
| Stock | GR1 In Stock | Titanium Plate Material | Titanium Alloy Plate Grade 7(Pd) |
| Sample | Provided | Weight Fomula | T*W*L*4.51/1000000=Kg |
| Product | 20-micron Thick Grade 1 Titanium Foil | ||
| Highlight | Medical Use Laser Cutting Titanium Sheet,6al-4v Laser Cutting Titanium Sheet,Ams 4911 Laser Cutting Titanium Sheet |
||
Product Description
Available Forms
| Form | Thickness Range |
|---|---|
| Titanium Coil | 0.12" – 0.125" |
| Titanium Sheet | 0.12" – 0.125" |
| Titanium Plate | 0.125" – 4.00" |
Common Sheet/Plate Sizes
-
Thickness: from 0.012", width < 59", length < 118"
-
Typical stocked dimensions:
-
0.032" × 36" × 96"
-
0.040" × 36" × 96"
-
0.063" × 36" × 96"
-
0.071" × 36" × 96"
-
0.080" × 36" × 96"
-
0.090" × 36" × 96"
-
Mechanical Properties
| Property | Requirement |
|---|---|
| Tensile Strength | ≥ 900 MPa |
| Yield Strength (0.2% Offset) | ≥ 825 MPa |
| Elongation (A50mm) | ≥ 10% |
| Hardness | ≤ 36 HRC |
Chemical Composition
| Element | Min (%) | Max (%) |
|---|---|---|
| Aluminium (Al) | 5.50 | 6.75 |
| Vanadium (V) | 3.50 | 4.50 |
| Iron (Fe) | — | 0.30 |
| Oxygen (O) | — | 0.20 |
| Carbon (C) | — | 0.08 |
| Nitrogen (N) | — | 0.05 (500 ppm) |
| Hydrogen (H) | — | 0.015 (150 ppm) |
| Yttrium (Y) | — | 0.005 (50 ppm) |
| Other Elements, each | — | 0.10 |
| Other Elements, total | — | 0.40 |
| Titanium (Ti) | Remainder |
Applications
-
Aerospace Industry
Used in aero engine components and aircraft structures due to light density, high strength, and excellent oxidation and corrosion resistance. -
Medical and Healthcare
Used in artificial joints, dental implants, and prostheses for its biocompatibility, strength, and low density. -
Marine Engineering
Suitable for subsea structures, pipelines, and offshore components due to exceptional seawater corrosion resistance. -
Automotive Industry
Applied in high-performance and lightweight vehicle components, such as engine hoods and exhaust systems, to improve fuel efficiency and safety.
