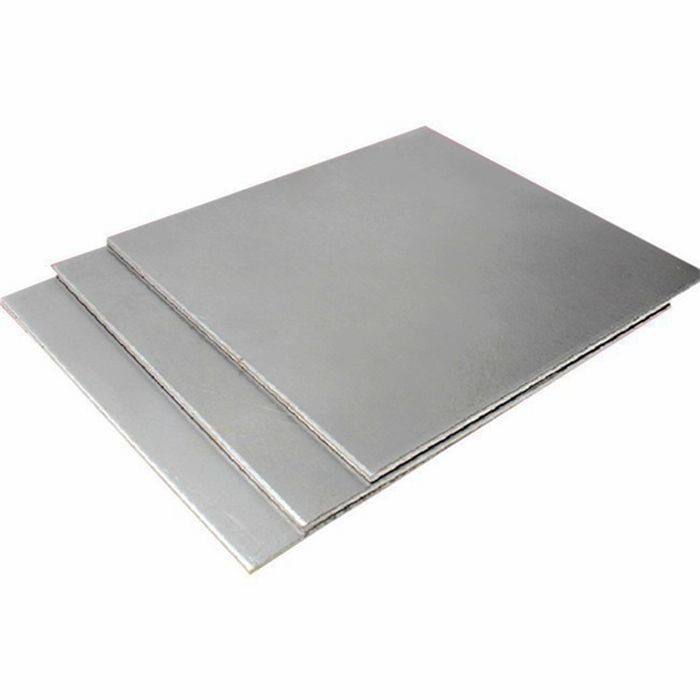

GR7 Titanium Sheet ASTM B265 Thickness 1 to 30mm for Industries

Place of Origin CHINA
Certification ISO9000:2015
Model Number GR7
Minimum Order Quantity 20KG
Price According to quantity
Packaging Details Clients’ requirement
Delivery Time 10 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Rolling Process Hot Rolled, Cold Rolled Feature High Elongation Rate
Processing CNC, Forge, Rolling And Welded Plate Width <2000mm
Surface Process Polished, Anodized, Sandblasted Advantage Durability Stability And Lower Weight
Stock Size Eg Thickness 1-30mm Lengh <6000mm
High Light

Industries GR7 Titanium Sheet


30mm Titanium Sheet


ASTM B265 Titanium Sheet

Leave a Message
Product Description

GR7 Titanium Sheet ASTM B265 Excellent Resistance for Industries


Grade: Grade 7 Titanium /Ti Gr 7 / 3.7235 / Ti2Pd / Ti1.5Pd

Standard: ASTM B265/UNS R52400

Dimension: Thickness 1.0 - 30mm,wide <2000mm,length<6000mm


What Is Gr7 Titanium Plate?


Grade 7 Titanium Plate is a particular kind of titanium alloy plate that primarily consists of titanium with an addition of 0.12% to 0.25% palladium. This addition enhances its corrosion resistance properties significantly. As a low-density alloy, Grade 7 titanium exhibits superior corrosion resistance across various environments, including exposure to seawater, industrial acids, and moderate reducing conditions.


Its widespread use spans multiple sectors such as aerospace, marine, chemical processing, and medical industries, owing to its impressive strength-to-weight ratio coupled with outstanding corrosion resistance. The versatility of Grade 7 titanium plate is reflected in its availability in diverse sizes, thicknesses, and specifications to cater to the specific demands of different applications.


The production process for this titanium alloy involves melting titanium together with the palladium. The resulting mixture is then subjected to either hot or cold rolling processes to achieve the necessary thickness and shape. Post-formation, the plate typically undergoes annealing or stress-relieving treatments to enhance its mechanical attributes. Furthermore, the plate can be finished with a range of surface treatments like polishing, sandblasting, or anodizing to meet the specific requirements of the end use.


Changsheng Titanium is a professional titanium plate suppliers since 2001 from China.


Titanium Grade 7 Chemical Composition

Ti Pd Fe max N max C max H max O max
99.3% 0.12-0.2% 0.3% 0.03% 0.08% 0.015% 0.25%

Titanium plate Grade 7 - Physical Properties at room temperature

Density 4.51
Specific heat (J/(g x K)) 0.52
Thermal conductivity (W/(m x K)) 20
Elastic modulus (KN/mm²) 105
Electrical resistance (Ohm x mm²/m) 0.47
Thermal expansion (10-6/K) 8.9

Grade 7 titanium plate - Mechanical properties at room temperature

Tensile strength Mpa 390 min.
Yield point Mpa 270 min.
Elongation % 22 min.


Acid Regeneration


Grade 7 Titanium Plate is frequently utilized in acid regeneration processes due to its exceptional resistance to corrosion, particularly in highly acidic environments. Acid regeneration is a crucial process within the chemical industry that involves the recovery and subsequent reuse of spent acids such as hydrochloric acid (HCl) and sulfuric acid (H2SO4), which are by-products of various chemical reactions.


In the context of acid regeneration, Grade 7 titanium plate material is commonly employed in the construction of acid tanks, heat exchangers, and other related process equipment that come into direct contact with these corrosive acids. The preference for Grade 7 titanium over other materials, like stainless steel, stems from its unparalleled resistance to acid corrosion, especially in applications involving high temperatures and pressures.


Referred to as Ti-Pd alloy, Titanium Grade 7 boasts enhanced anti-corrosion properties thanks to the addition of 0.12-0.25% Palladium. This increase in palladium content significantly elevates its corrosion resistance beyond that of Titanium Grade 2. With remarkable resistance to corrosion, the Grade 7 titanium plate adeptly handles exposure to saltwater and is well-suited for chloride media. Furthermore, it exhibits robustness against erosion and impact, making it a prime choice for use in chemical plants. These characteristics make it an ideal material for various stages of chemical production processes and related equipment.


Suppliers with extensive experience, spanning over two decades, in the field of Gr7 titanium plate provision, we offer comprehensive technical data to our clients, ensuring the right material selection for their specific application needs.
