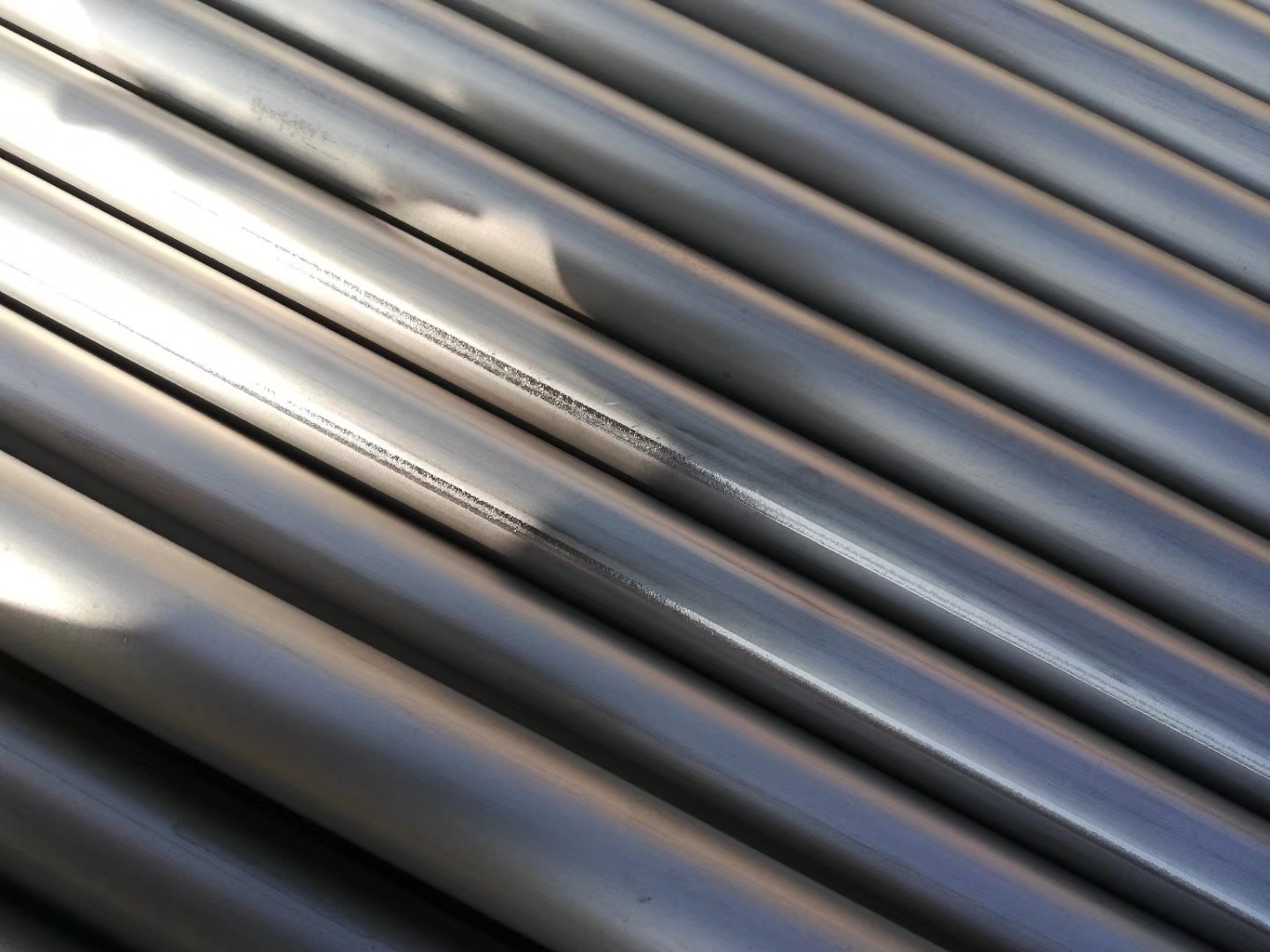

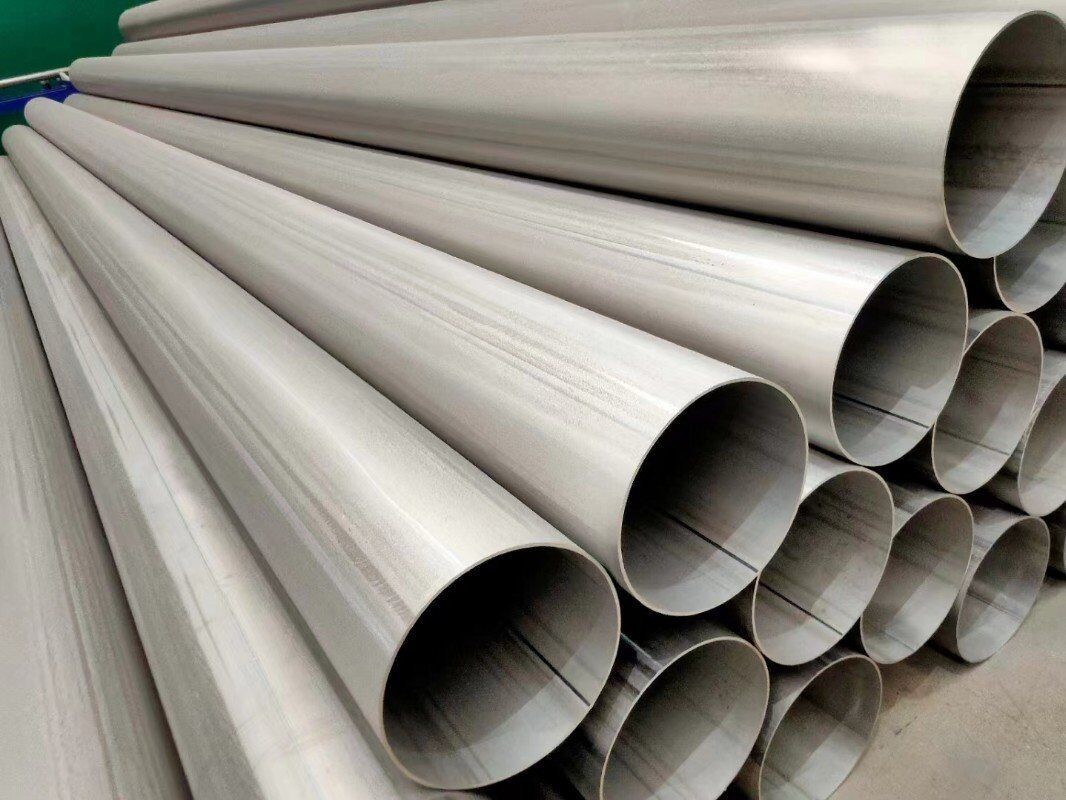

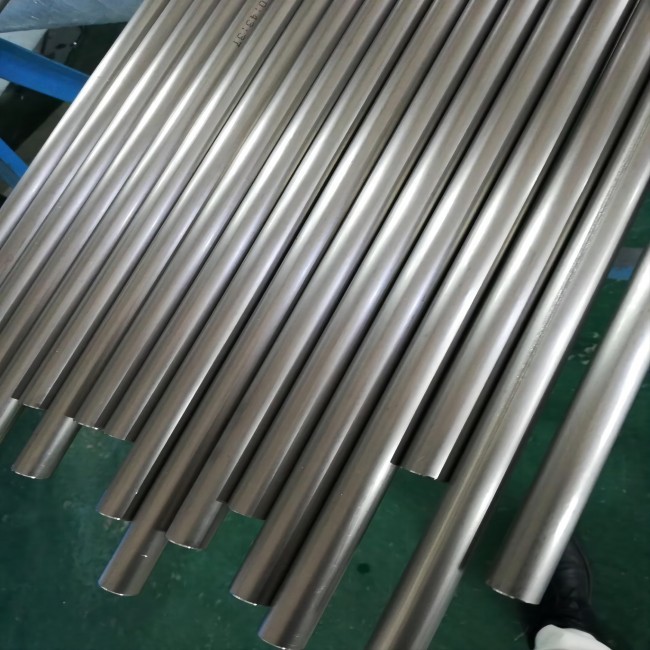

Manufacturer Gr2 Titanium Welded Pipe Rolled Smooth Surface For Industry Length 6000mm

  • Manufacturer Gr2 Titanium Welded Pipe Rolled Smooth Surface For Industry Length 6000mm
  • Manufacturer Gr2 Titanium Welded Pipe Rolled Smooth Surface For Industry Length 6000mm
  • Manufacturer Gr2 Titanium Welded Pipe Rolled Smooth Surface For Industry Length 6000mm
Place of Origin China baoji
Brand Name CSTY
Certification ISO9001
Model Number ASTM B338/862
Minimum Order Quantity 50kgs
Price usd14-19 per kg
Packaging Details Standard Export Package
Delivery Time 7-30days
Payment Terms L/C, T/T
Supply Ability 100 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction Length 3m-12m
MOQ 50KGS Material Titanium Tube
Package Standard Export Package Payment Term T/T, L/C
Standard ASTM B862/ ASTM B338 Surface Treatment Polished, Annealed, Pickled
Type Welded Pipe Wall Thickness 0.5mm-50mm
High Light

Length 6000mm Titanium Tube

,

Smooth Titanium Welded Pipe

,

Gr2 Titanium Welded Pipe
Leave a Message
Product Description



Titanium welded pipe Production Capability and Specification

The following list gives details of our production capability. For custom and specialist tubes contact us for further information.
* Ti Tube Standards:ASTM B338,B862
* Ti Tube Type: Welded Tube
* Ti Grade Material:CP Grade 1,2,3 4, Alloys: Grade 5, 7, 9, 12, 24
* Ti Welded Tube Dimensions: * Outer Diameter Range: 10– 1500 mm
* Wall Height Range: 1mm – 30mm
* Length Range: < 20000 mm

* We also follow the National Pipe Standards and hold a large stock to meet immediate demand.
* Monthly Output:2,00 tonnes
* Shape: Round
* Surface: Smooth
* Size: According customer’s requirements.
* Technique: Rolled
Mechanical Requirements of titanium welded pipe


Grade
Tensile strength(min)
Yield Strength(min)


Elongation(%)
ksi
MPa
min
max
ksi
MPa
ksi
MPa
Gr1
35
240
20
138
45
310
24
Gr2
50
345
40
275
65
450
20
Gr3
65
450
55
380
80
550
18
Gr4
80
550
70
483


15
Gr5
130
895
120
828


10
GR7
50
345
40
275
65
450
20
GR9
90
620
70
483
...
...
15

The density of titanium is 4.506-4.516g/cm^3, melting point is 1668, boiling point is 3535.
Therefore Titanium have low weight, excellent high strength and nonmagnetic festures, low density, excellent corrosion resistance features, high specificate strength and high temperature resistance features, so it is widely used in chemical industry field, medical field, electronics manufacture, mechanical parts field, automobile industry, and aerospace field, etc.
Titanium wilded pipe is widely used in heat exchange equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transportation pipelines. Many nuclear power industries use titanium tubes as standard tubes for their units.
Titanium wilded pipe production in large volumes and to short lead times requires great engineering excellence and one in which we excel.
