Grade: Pure Titanium Grade 2

Type: welded tubes and pipes

Standard: ASTM B338 ASTM B337 ASTM B862

Shape: round tubes

Outside diameter: 6mm to 480mm (12.7mm, 16mm, 19.05mm, 25.4mm, 38.1mm, 50.8mm, etc,.)

Wall thickness: 0.35mm to 10mm (0.5mm/0.71mm/0.8mm/1.0mm/1.2mm/1.6mm/2.11mm,etc.)

Supply state: Annealed

Test: Ultrasonic test, Hydraulic test
Processing: Cold/Hot rolling

Application: tubular heat exchanger, condenser, evaporator, distillation tower, reactor, etc,.



Detailed Information for Titanium Welding Pipe

Item name	Titanium Grade 2 Welding Tube ASTM B338 For Shell And Tube Condensers
Material	Gr2, pure titanium
Type	Welded
Standards	ASTM B338 ASTM B337 ASTM B862
Shape	Round tubes with plain ends
Outside diameter	12.7mm, 16mm, 19.05mm, 25.4mm, 38.1mm, 50.8mm, etc,.
Wall thickness	0.5mm/0.71mm/0.8mm/1.0mm/1.2mm/1.6mm/2.11mm,etc.
Length	max.12m, or as per clients request
Surface	Pickling surface
Test	Eddy current inspection, Hydraulic test, Ultrasonic test



Features of Titanium Welding Tube

1. High degree of automation, high production efficiency. Titanium welded pipe is the selection of high quality titanium strip, in the automatic pipe welding production line, after heat treatment, straightening, cutting, testing to obtain qualified pipe products. It only takes about 10 minutes from forming to packaging for a titanium welded pipe, and the production and inspection process are all automated.
2. Uniform wall thickness and high dimensional accuracy, less surface defects, high reliability. The uniformity of the wall thickness of the finished pipe is very high, and more importantly, there is no microcrack formation on the inner surface.
3. The weld seam strength is higher than the matrix strength. The welding of titanium tube adopts the optimized tungsten electrode argon gas protection welding with matrix metal self-fusion welding process, which does not fill the external metal, so as to ensure the unity of weld and matrix composition.
4. Cost advantage of titanium welded pipe. Competition in China's titanium welded pipe market is particularly fierce, and the product price has long been hovering at a historical low, and far lower than the price of similar products seamless pipe.

​

Mechanical Properties of Titanium Material

ASTM Grade	Alloy composition	Tensile strength		Yield strength		Elongation %
		ksi	Mpa	ksi	Mpa
GR1	Unallyed Ti(Pure)35A-CP1	35	240	25	170	24
GR2	Unallyed Ti(Pure)50A-CP2	50	345	40	275	20
GR12	Ti-0.3Mo-0.8Ni	70	483	50	345	18

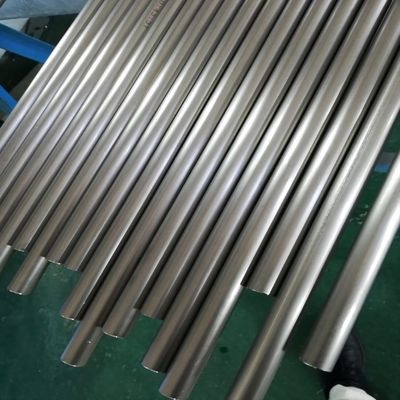

Surface of Titanium Welding Pipes

Titanium and titanium alloy have the advantages of high strength and good corrosion resistance, and are suitable for making thin-wall heat transfer parts. When it is used as a heat transfer element, the surface is smooth and the adhesion force is small, which can effectively prevent scaling and ensure a stable thermal conductivity for a long time. Gr1, Gr2, and Gr12 Titanium have moderate strength, good plasticity and good cold processing performance, and have been processed into various kinds of heat exchange tubes, which are widely used in the condenser and heat exchanger of nuclear power, seawater desalination, petrochemical industry, refrigeration, environmental protection and other fields. Titanium welded pipe will be more and more demand, the application field will be more and more extensive.
