10mm Thick Titanium Plate Grade 2 Width 1500mm In Stock
| Place of Origin | Baoji City, China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001:2015 |
| Model Number | Titanium Plate Grade 2 |
| Minimum Order Quantity | 1 piece |
| Price | USD 15.5/kg - USD 16.5/kg |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 3-5 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 60 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Pure Titanium Plate Grade 2 | Plate Thickness | 10mm |
|---|---|---|---|
| Width | 1500mm | Length | 6000mm |
| Supply State | Annealed | Surface | Acid-washing |
| Advantages | Ductility, Outstanding Corrosion Resistance | Production Standard | ASTM B265 |
| Aplications | Chemical Processing, Desalination, Power Generation, Etc,. | Lead Time | Large Inventory, Ready To Ship |
| High Light | 10mm Thick Titanium Plate,Width 1500mm Titanium Sheet,Desalination Titanium Alloy Sheet |
||
Product Description

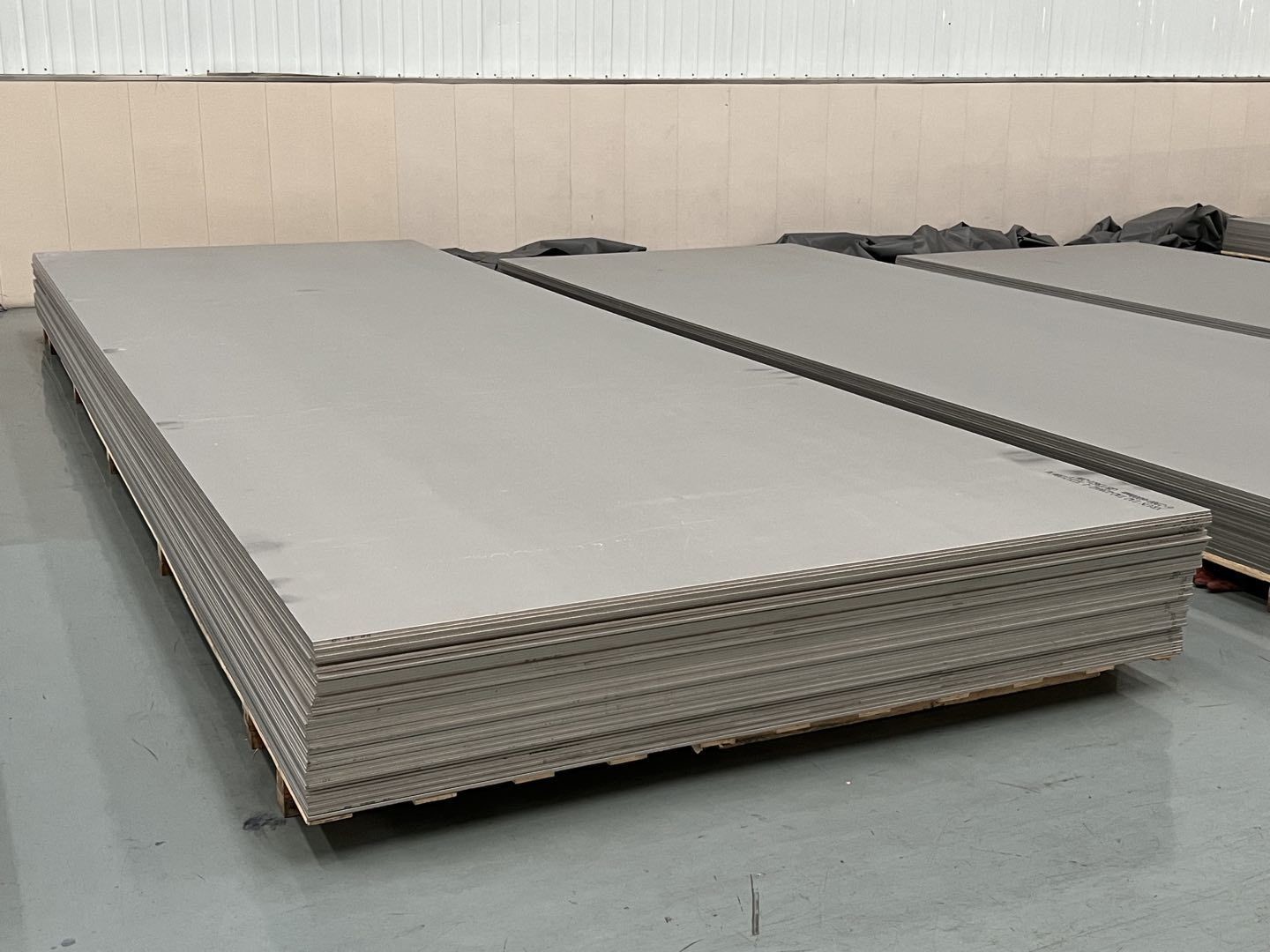

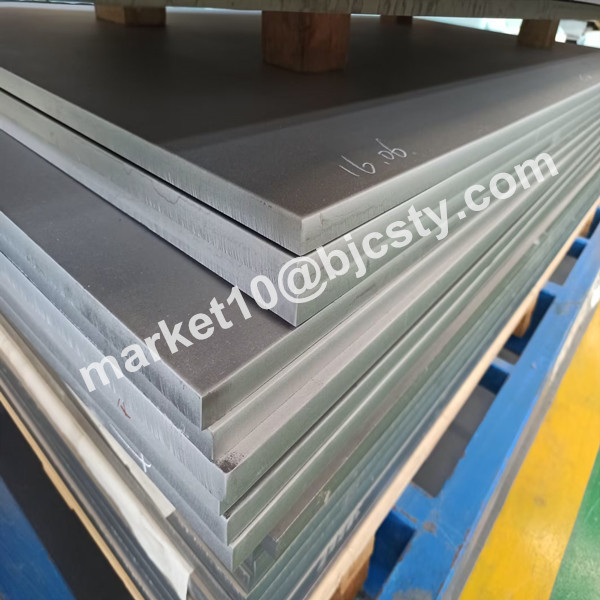

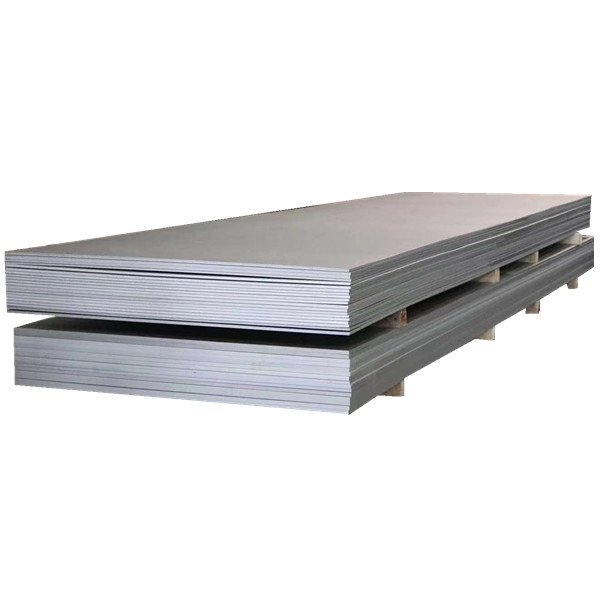

10mm Thick Titanium Plate Grade 2 Width 1500mm In Stock
Our company Baoji City Changsheng Titanium Co., Ltd stocks pure titanium plate Grade 2 in thickness 10mm in hot rolling. Titanium Plate Gr2(UNS R50400) is the “workhorse” of the commercially pure titanium family. It offers a combination of high strength, ductility, and outstanding corrosion resistance for many industrial applications. We offer full-size plates or custom cut sizes as request.
Stock Dimensional Information of 10mm Titanium Plate Grade 2
|
Thickness
|
Width
|
Length
|
Standard |
|
10.0mm
|
1500mm
|
6000mm
|
ASTM B265 |
Characteristics of TITANIUM Grade 2 (Commercially Pure) UNS R50400
Commercially Pure Titanium Plate Gr.2 (UNS R50400) can be easily welded, machined, and hot and cold worked. It is the most widely-used titanium grade offering an excellent balance of strength and ductility with outstanding corrosion resistance in many challenging service environments, such as alkaline solutions, oxidizing and organic acids, bleaches, wet chlorine, inorganic salts, salt brines, and seawater, etc,.Titanium plate Grade 2 (UNS R50400) has slightly lower strength than Titanium Grade 3 (UNS R50550) but is stronger than Titanium Grade 1 (UNS R50250). Its corrosion resistance is equal to the other commercially pure plate grades.
TYPICAL APPLICATIONS of Titanium Plate In Grade 2
- Aerospace
- Biotechnology and Pharmaceuticals
- Chemical Processing
- Desalination
- Hydrocarbon Processing and Petrochemicals
- Maritime application
- Oil and Gas Processing
- Power Generation — Biomass, Geothermal, Nuclear
- Pulp and Paper — Bleaching
Mechanical Properties of Pure Titanium Grade 2(Min.)
|
Tensil strength(≥) ksi (MPa)
|
Yeild strength(≥)) ksi (MPa)
|
Elongation(≥)%)
|
|
50(345)
|
40-65(275-450)
|
20 |
Our Services & Strength
1-Set up from 2001, nearly 20 years manufacturering experiences in titanium industry.
2-Two real factory entitle, two complete production line of titanium bar and titanium tube,
keep sure the high quality and delivery time.
3-ISO Quality Management System, and exclusive letters patent in titanium tube.
4-Professional 2 foreign sales teams, started 2008 years, 12 years service experiences.
3-ISO Quality Management System, and exclusive letters patent in titanium tube.
4-Professional 2 foreign sales teams, started 2008 years, 12 years service experiences.
Company Information:
Baoji City Changsheng Titanium Co.,Ltd. is located in Baoji City which is know as the"Titanium City".
Our factory was established in 2001.We focused on processing and sales of titanium and titanium
alloy (including titanium bar,titanium tubes,titanium sheet, titanium wire, titanium anode and titanium
casting,ect), The product is widely applied in chemical industry, metallurgy, petroleum, textile, medicine,
light industry, environmental protection, sports, mine,ocean and other fields. Our products have been
used in China over 15 years and exported to overseas had been steadily increased in North America,
Europe,Africa,South America,Middle East and Asia,etc.
RFQ:
1.Are you the manufacturing or trading company?
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
2.Do you have a dedicated R & D team? Can you design a product for us?
We have a dedicated technical team responsible for research and development. But most of titanium fittings are standard, we can follow ASTM or other you asked.
3.Can you provide samples? Is there a charge?
Samples can be provided for a fee.
4.What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
5.How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
Titanium Plate Inventroy
Tags: Titanium Plate Gr.2, 10mm Titanium Plates stock, Titanium Plate Supplier, etc,.
