Titanium Heat Exchanger Plate Titanium Sheet For Heat Exchanger ASTM B265
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | Titanium And Titanium Alloy | Grade | Grade 2, Grade 5, Grade 7 |
|---|---|---|---|
| Standard | ASTM B265 | Thickness | 0.6-40mm |
| Width | 1000-3000mm | Length | 1000-6000mm |
| Surface | Bright, Pickling | Shape | Coiled Sheet And Plate |
| Technical | Rolling, Forged | ||
| High Light | ASTM B265 Titanium Welded Pipe,0.6mm Titanium Heat Exchanger Plate,Pickling Surface Titanium Sheet |
||
Product Description
Titanium Heat Exchange Plate Descriptions
Titanium heat exchange plate is a type of heat transfer plate used in heat exchangers and other heat transfer systems.
Heat exchange plate titanium is typically made from a thin sheet of titanium, which is a very strong, lightweight, and corrosion-resistant metal. Titanium Sheet for Heat Exchanger is also highly heat conductive, making it an ideal material for use in heat exchange plates.
The heat exchangers plates are usually formed into a flat, thin sheet shape, which is then used to conduct heat from one medium to another. Titanium heat exchange plates are often used in systems that require heat transfer between two fluids, such as in a refrigeration system.
Titanium Heat Exchange Plate are also commonly used in solar heating systems, where they are used to transfer energy from the sun to a separate medium.
Titanium Heat Exchange Plate Physical Properties
| Grade | Tensile stength MPA-Min | Yield strength MPA-Min | Elongation %-Min |
| Gr1 | 240 | 170 | 24 |
| Gr2 | 345 | 275 | 20 |
| Gr3 | 450 | 380 | 18 |
| Gr4 | 550 | 483 | 15 |
| Gr5 | 895 | 828 | 10 |
| Gr7 | 400 | 275 | 18 |
| Gr9 | 620 | 483 | 15 |
| Gr12 | 483 | 348 | 18 |
| Gr23/ Gr5-Eli | 793 | 759 | 10 |
Titanium Heat Exchange Plate Chemical Composition
| Grade |
Fe Max |
O Max |
N Max |
C Max |
H Max |
Pd Max |
Al Max |
Va Max |
Ni Max |
Mo Max |
| / | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % |
| Gr1 | 0.2 | 0.18 | 0.03 | 0.08 | 0.015 | |||||
| Gr2 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | |||||
| Gr3 | 0.3 | 0.35 | 0.05 | 0.08 | 0.015 | |||||
| Gr4 | 0.5 | 0.4 | 0.05 | 0.08 | 0.015 | |||||
| Gr5 | 0.4 | 0.2 | 0.05 | 0.08 | 0.015 | 5.5-6.7 | 3.5-4.5 | |||
| Gr7 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12- 0.25 | ||||
| Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | 2.5-3.5 | 2.0-3.0 | |||
| Gr12 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.6-0.9 | 0.2-0.4 | |||
| Gr5eli/Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | 5.5-6.5 | 3.5-4.5 | |||
| Ti | Balance | |||||||||

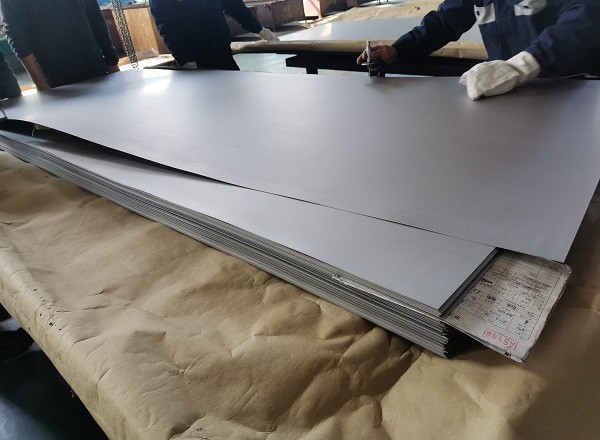

Titanium Heat Exchange Plate Picture Showing
Applications of Titanium Heat Exchange Plate
1. Automotive: Heat exchange plate made of titanium are used in the automotive industry for cooling and heating applications. They are used in radiators, exhaust systems, turbochargers, and intercoolers to transfer heat away from engine components and other parts.
2. Industrial: titanium Heat exchange plate are also used in industrial applications, such as boilers, heaters, and furnaces. Titanium plates are ideal for these applications due to their extreme corrosion resistance and high strength-to-weight ratio.
3. Marine: Titanium Sheet for Heat Exchanger is used in marine applications, such as for cooling water, fuel, and oil in ships and boats. They are also used for cooling and heating systems in submarines.
4. Aerospace: Titanium heat exchange plate are used in a variety of aerospace applications, such as as part of the cooling systems in aircraft and satellites. They are also used in spacecraft for cooling and heating components.
