Titanium Gr1 Welded Tube ASTM B338 Titanium Tube With Heavy Wallthickness
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterials | Titanium | Grade | Grade 1 |
---|---|---|---|
Standard | ASTM B338 | Technical | Welded Tube |
Test | 100% X-Ray Test | OD | 4mm MIN |
Wall Thickness | 0.5mm MIN | Length | Cuting Length Acceptable |
High Light | Heavy Wall Thickness Titanium Welded Tube,Corrosion Resistance Titanium Welded Pipe,Petrochemical Processing Titanium Welded Tube |
Titanium gr1 welded tube ASTM B338
Titanium gr1 welded tube ASTM B338 is an unalloyed titanium product, commonly referred to as commercially pure (CP) titanium.
Titanium gr1 welded tube ASTM B338 has the lowest strength and highest ductility of the titanium grades.
Titanium welded tube ASTM B338 offers excellent corrosion resistance in both oxidizing and reducing environments and possesses excellent weldability and fabricability.
Titanium Grade 1 welded tube is the most widely used titanium alloy due to its excellent combination of high strength and ductility, along with its low cost. Ti-Gr1 is used in chemical and petrochemical processing, power generation, biomedical implants, and automotive and aerospace applications.
Titanium gr1 welded tube ASTM B338 Physical Properties
Grade | Tensile stength MPA-Min | Yield strength MPA-Min | Elongation %-Min |
Gr1 | 240 | 170 | 24 |
Gr2 | 345 | 275 | 20 |
Gr3 | 450 | 380 | 18 |
Gr4 | 550 | 483 | 15 |
Gr5 | 895 | 828 | 10 |
Gr7 | 400 | 275 | 18 |
Gr9 | 620 | 483 | 15 |
Gr12 | 483 | 348 | 18 |
Gr23/ Gr5-Eli | 793 | 759 | 10 |
Titanium gr1 welded tube ASTM B338 Chemical Composition
Grade |
Fe Max |
O Max |
N Max |
C Max |
H Max |
Pd Max |
Al Max |
Va Max |
Ni Max |
Mo Max |
/ | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % |
Gr1 | 0.2 | 0.18 | 0.03 | 0.08 | 0.015 | |||||
Gr2 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | |||||
Gr3 | 0.3 | 0.35 | 0.05 | 0.08 | 0.015 | |||||
Gr4 | 0.5 | 0.4 | 0.05 | 0.08 | 0.015 | |||||
Gr5 | 0.4 | 0.2 | 0.05 | 0.08 | 0.015 | 5.5-6.7 | 3.5-4.5 | |||
Gr7 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12- 0.25 | ||||
Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | 2.5-3.5 | 2.0-3.0 | |||
Gr12 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.6-0.9 | 0.2-0.4 | |||
Gr5eli/Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | 5.5-6.5 | 3.5-4.5 | |||
Ti | Balance |

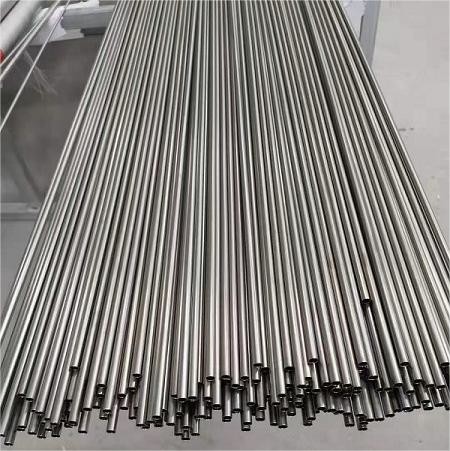

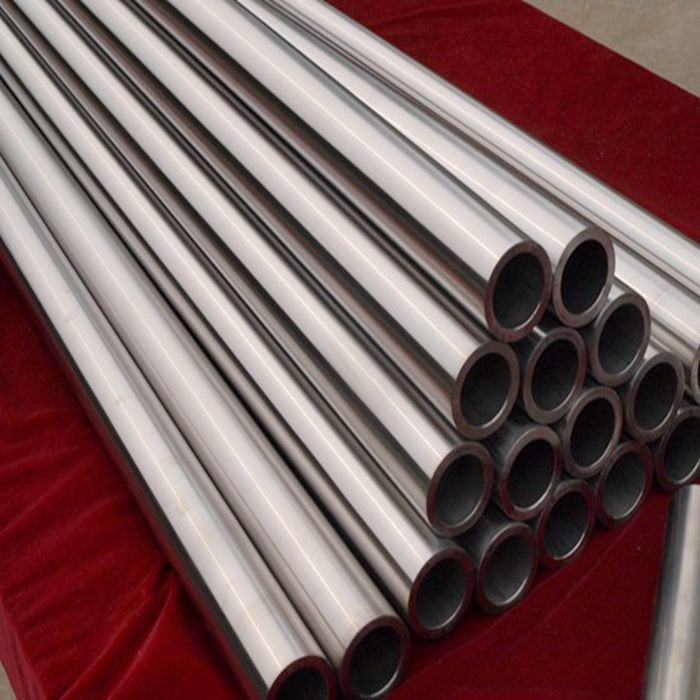

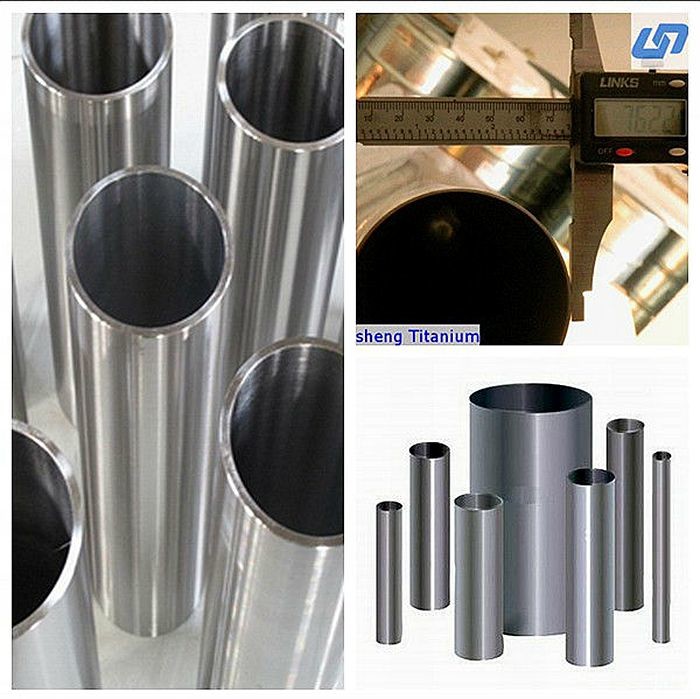

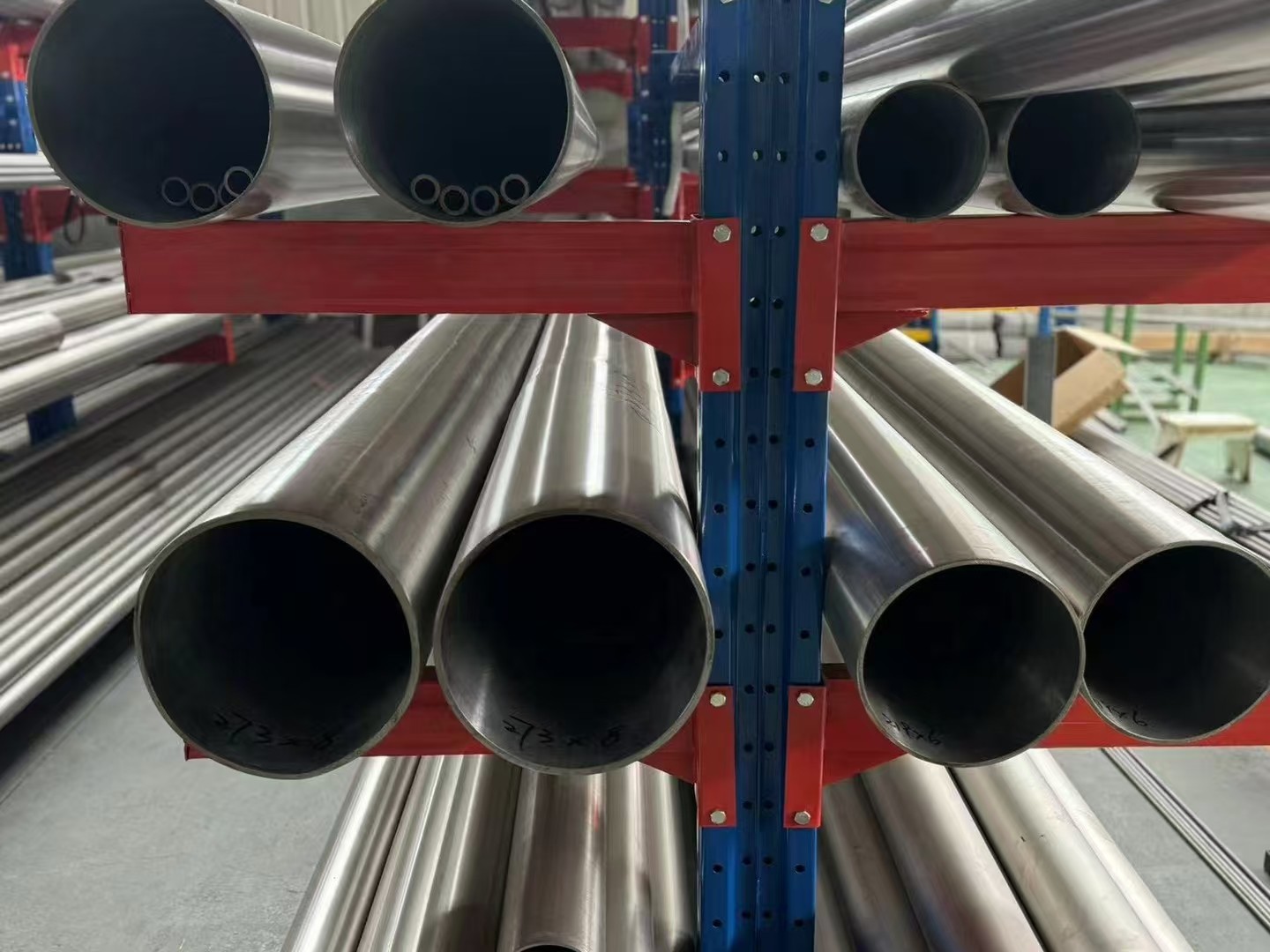

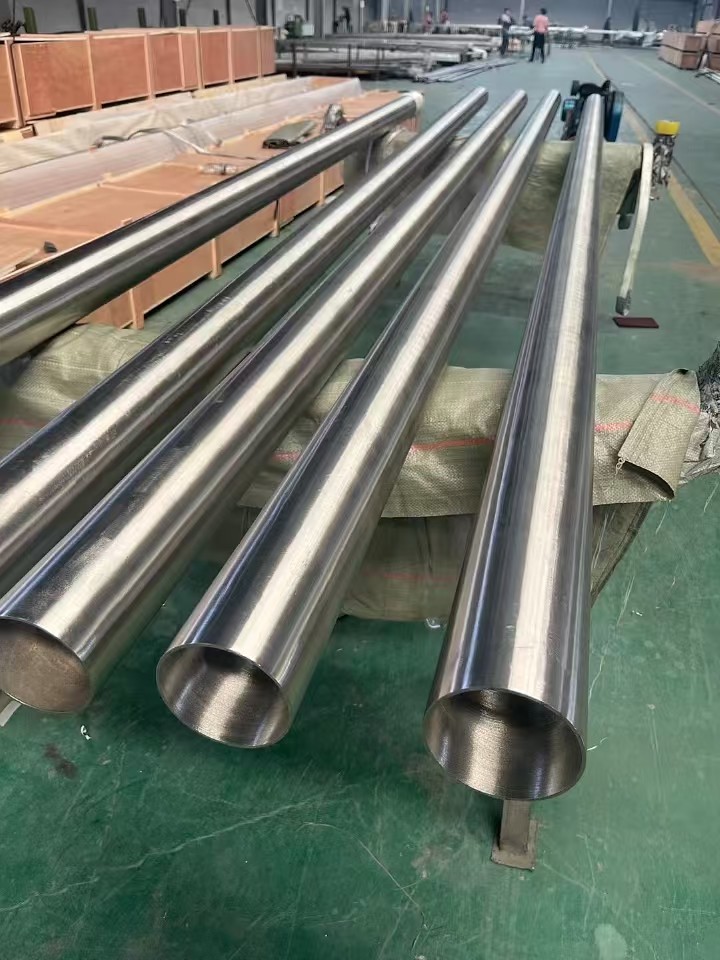

Titanium gr1 welded tube ASTM B338 Picture Showing
