Titanium Foil Ti Coiled Foil ASTM B265 For Industrial And Medical Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterials | Titanium And Titanium Alloy | Grade | Grade 1,Grade 5, Grade 2 |
---|---|---|---|
Thickness | ≥0.02mm | Width | ≥150mm; ≥300mm;≥500mm |
Surface | Polished | Standard | ASTM B265, ASTM F67, ASTM F136 |
Technique | Rolling, CNC | ||
High Light | Medical Polished Titanium Foil,CNC Gr1 Titanium Foil Roll,ASTM B265 Industrial Titanium Foil |
Descriptions for Titanium Foil
Titanium foil is a thin sheet of foil made from titanium metal.
Titanium coiled foil is used for various applications in engineering, manufacturing, and medical fields.
Titanium coiled foil has excellent corrosion resistance, durability, and strength.
Ti coiled foil is often used as an electrical conductor, heat shield, or protective layer in industrial processes.
Ti gr1 foil can also be used in medical implants, where its strength and flexibility make it an ideal material.
Physical Properties for Titanium Foil
Grade | Tensile stength MPA-Min | Yield strength MPA-Min | Elongation %-Min |
Gr1 | 240 | 170 | 24 |
Gr2 | 345 | 275 | 20 |
Gr3 | 450 | 380 | 18 |
Gr4 | 550 | 483 | 15 |
Gr5 | 895 | 828 | 10 |
Gr7 | 400 | 275 | 18 |
Gr9 | 620 | 483 | 15 |
Gr12 | 483 | 348 | 18 |
Gr23/ Gr5-Eli | 793 | 759 | 10 |
Chemical Composition for Titanium Foil
Grade |
Fe Max |
O Max |
N Max |
C Max |
H Max |
Pd Max |
Al Max |
Va Max |
Ni Max |
Mo Max |
/ | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % |
Gr1 | 0.2 | 0.18 | 0.03 | 0.08 | 0.015 | |||||
Gr2 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | |||||
Gr3 | 0.3 | 0.35 | 0.05 | 0.08 | 0.015 | |||||
Gr4 | 0.5 | 0.4 | 0.05 | 0.08 | 0.015 | |||||
Gr5 | 0.4 | 0.2 | 0.05 | 0.08 | 0.015 | 5.5-6.7 | 3.5-4.5 | |||
Gr7 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12- 0.25 | ||||
Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | 2.5-3.5 | 2.0-3.0 | |||
Gr12 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.6-0.9 | 0.2-0.4 | |||
Gr5eli/Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | 5.5-6.5 | 3.5-4.5 | |||
Ti | Balance |

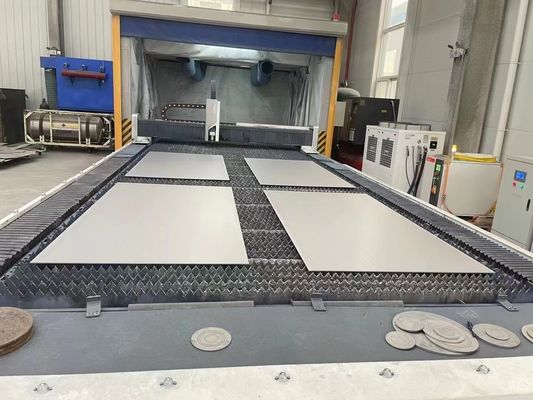

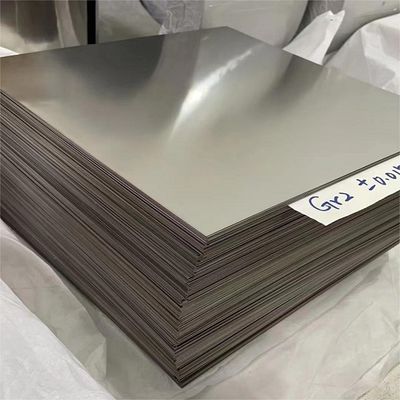

Picture showing for Titanium Foil
Applications of Titanium Foil
1. Heat Exchangers: Titanium foil is used in the manufacturing of heat exchangers for its durability and corrosion resistance.
2. Chemical Reactors: Titanium coiled foil can be used in chemical reactors due to its resistance to corrosion.
3. Automotive Parts: Ti foil can be used to make parts for cars, motorcycles, and other vehicles due to its high strength and low weight.
4. Electronics: Ti gr1 foil can be used to make electrical components, such as coils and capacitors, due to its conductive properties.
5. Aerospace: Ti coiled foil is used in the aerospace industry for its strength and ability to withstand extreme temperatures.
