Titanium Grade 2 Welding Tube ASTM B338 OD25mm For Shell And Tube Condensers

Place of Origin Shaanxi, China
Brand Name Changsheng
Certification ISO9001:2015
Model Number Titanium Grade 2 Welding Tube
Minimum Order Quantity 5kg
Price USD 18.8/KG - USD 21.8/KG
Packaging Details Soft film wrapped inside, export standard crate outside.
Delivery Time 3-5 work days
Payment Terms L/C, T/T
Supply Ability 30 Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Pure Titanium Gr2 Diameter 6mm To 219mm
Thickness 0.5mm To 30mm Surface Pickling Surface
Shape Round Tube Supply State Anealed
Standard ASTM B338 Application PTA Oxidation Reaction Condenser, Heat Exchanger, Evaporator, Tank
Advantage Good Welding Propertity, Ligh Weight, Corrosion Resistance Popular Size Ф25mm × 1mm, Ф19. 05mm × 1. 245mm, Ф16mm × 1. 2mm
High Light

Grade 2 Titanium Welding Tube


OD25mm Titanium Welding Tube


Condensers Titanium Welded Pipe

Leave a Message
Product Description

Titanium Grade 2 Welding Tube ASTM B338 For Shell And Tube Condensers

Titanium Gr2 welding tubes are the first choice as the heat exchange tube of shell and tube condensers, heat exchangers, evaporators. Titanium welded pipes are widely used in power plants, food & beverage, heavy industry, marine, chemicals, oil & gas industries, vacuum salt making, automobile industry, medical & sports, paper and textile industry, electric power industry, metallurgy industry, chlor-alkali industry, fertilizer industry, seawater desalination industry. Gr2 titanium welded tubes are main material of heat exchange tube. As a global titanium tube supplier, we have a large inventory of titanium welding tubes.

Grade: Pure Titanium Grade 2
Type: welded tubes and pipes
Standard: ASTM B338 ASTM B337 ASTM B862
Shape: round tubes
Outside diameter: 12.7mm, 16mm, 19.05mm, 25.4mm, 38.1mm, 50.8mm, etc,.
Wall thickness: 0.5mm/0.71mm/0.8mm/1.0mm/1.2mm/1.6mm/2.11mm,etc.
Supply state: Annealed
length within:12m

Test: Ultrasonic test, Hydraulic test
Processing: Cold/Hot rolling

Application: heat exchanger, condenser, evaporator, distillation tower, reactor, etc,.


Detailed Information in Form for Titanium Grade 2 Welding Tube

Item name

Titanium Grade 2 Welding Tube ASTM B338 For Shell And Tube Condensers

Material Gr2, pure titanium
Type Welded
Standards ASTM B338 ASTM B337 ASTM B862
Shape Round tubes with plain ends
Outside diameter 12.7mm, 16mm, 19.05mm, 25.4mm, 38.1mm, 50.8mm, etc,.
Wall thickness 0.5mm/0.71mm/0.8mm/1.0mm/1.2mm/1.6mm/2.11mm,etc.
Length max.12m, or as per clients request
Surface Pickling surface
Test Eddy current inspection, Hydraulic test, Ultrasonic test


Features of Welded Titanium Grade 2 Tube

  1. High degree of automation, high production efficiency. Titanium welded pipe is the selection of high quality titanium strip, in the automatic pipe welding production line, after heat treatment, straightening, cutting, testing to obtain qualified pipe products. It only takes about 10 minutes from forming to packaging for a titanium welded pipe, and the production and inspection process are all automated.
  2. Uniform wall thickness and high dimensional accuracy, less surface defects, high reliability. The uniformity of the wall thickness of the finished pipe is very high, and more importantly, there is no microcrack formation on the inner surface.
  3. The weld seam strength is higher than the matrix strength. The welding of titanium tube adopts the optimized tungsten electrode argon gas protection welding with matrix metal self-fusion welding process, which does not fill the external metal, so as to ensure the unity of weld and matrix composition.
  4. Cost advantage of titanium welded pipe. Competition in China's titanium welded pipe market is particularly fierce, and the product price has long been hovering at a historical low, and far lower than the price of similar products seamless pipe.

Mechanical Properties of Titanium Metal Material

ASTM Grade
Alloy composition
Tensile strength
Yield strength
Elongation %
Unallyed Ti(Pure)35A-CP1
Unallyed Ti(Pure)50A-CP2
70 483 50 345 18

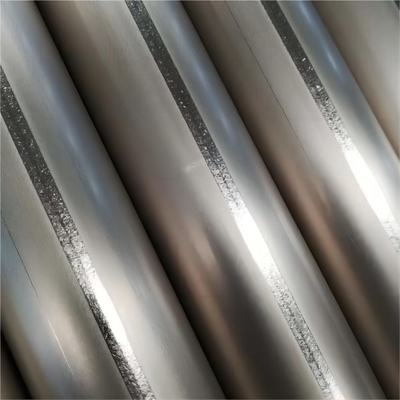

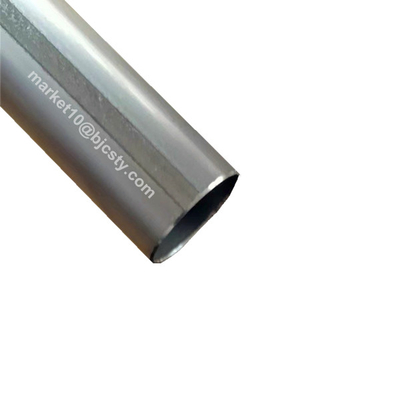

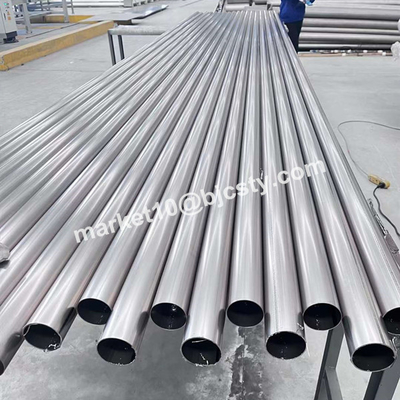

Pictures of Grade 2 Titanium Welding Pipes

Titanium Grade 2 Welding Tube ASTM B338 OD25mm For Shell And Tube Condensers 0
Titanium Grade 2 Welding Tube ASTM B338 OD25mm For Shell And Tube Condensers 1
Titanium and titanium alloy have the advantages of high strength and good corrosion resistance, and are suitable for making thin-wall heat transfer parts. When it is used as a heat transfer element, the surface is smooth and the adhesion force is small, which can effectively prevent scaling and ensure a stable thermal conductivity for a long time. Gr1, Gr2, and Gr12 Titanium have moderate strength, good plasticity and good cold processing performance, and have been processed into various kinds of heat exchange tubes, which are widely used in the condenser and heat exchanger of nuclear power, seawater desalination, petrochemical industry, refrigeration, environmental protection and other fields. Titanium welded pipe will be more and more demand, the application field will be more and more extensive.
