Titanium Welded Pipe Tube ASTM B338 ASTM B862 Gr1 Gr2 OD6-89mm WT0.35-2.0mm
Place of Origin | China |
---|---|
Brand Name | CSTI |
Certification | GB/T19001-2016/ISO9001:2015 |
Model Number | Titanium Welded tube-20220707 |
Minimum Order Quantity | 10kgs |
Price | $28.00 - $35.00/kg |
Packaging Details | film and wooden case,carton Packaging can be according to customer requirements. |
Delivery Time | 10-35 work days |
Supply Ability | 5000 Kilogram/Kilograms per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Titanium Welded Tube/Pipe | Material | Gr1, Gr2,Gr12 |
---|---|---|---|
Standard | GB/T3625,ASTM B338, ASTM B862 | Outside Diameter | 6mm-89mm |
Wall Thickness | 0.35mm-2.0mm | Length | According To Your Own Requirements Or Coild Tube |
Tolerance | As Per Executive Standard Requirements, For Those Tubes Which Require High Precision, We Can Make According To Your Own Tech Requirements | Application | Power Plant Condenser, Sea Water Desalinization, Petroleum, Chemicals, Medical Appliance, Ship Building, Papermaking, Food Processing, Fluid Transportation Piping, Automobile Exhaust Pipe |
Highlight | OD 6mm Titanium Welded Tube,ASTM B338 Titanium Welded Tube,Titanium Welded Tube high precision |
Titanium Welded Pipe Tube ASTM B338 ASTM B862 Gr1 Gr2 OD6-89mm WT0.35-2.0mm
Titanium welded tubes that conform to ASTM B338 and ASTM B862 standards are high-quality products that are used in a wide range of industrial applications.
Gr1 is the most commonly used grade of titanium and is suitable for applications that require good corrosion resistance and high ductility. Gr2 is a slightly stronger and more corrosion-resistant grade, while Gr12 is a high-strength titanium alloy that is used in applications that require excellent corrosion resistance and high-temperature stability.
Titanium welded tubes are made by welding titanium strips or sheets together to form a tube. The welding process used can be either TIG (tungsten inert gas) welding or plasma welding. These tubes are often used in applications that require good corrosion resistance, high strength, and lightweight construction, such as in the aerospace, chemical, and oil and gas industries.
Titanium Welded Pipe Tube ASTM B338 ASTM B862 Gr1 Gr2 OD6-89mm WT0.35-2.0mm Specification
Executive Standard: GB/T3625,ASTM B338, ASTM B862.
Material: TA1, TA2, TA10, Gr1, Gr2.
Outside diameter: 6mm-89mm
Wall thickness: 0.35mm-2.0mm
Length: According to your own requirements or coild tube.
Tolerance: As per executive standard requirements, for those tubes which require high precision, we can make according to your own tech requirements.
Application: Power Plant Condenser, Sea Water Desalinization, Petroleum,Chemicals, Medical Appliance, Ship Building, Papermaking, Food Processing, Fluid Transportation Piping, Automobile Exhaust Pipe and so on.
Advantage: Well-proportioned wall thickness and high precision wall thickness.
Information: Beside the normal executive standard, we could also make the tubes according to your own requirements, such as wall thickness tolerance, hardness, surface requirements and etc by designing different technical requirements and production technology, try our best to support you.
Chemical Composition
|
N |
C |
H |
Fe |
O |
Al |
V |
Pd |
Mo |
Ni |
Ti |
Gr1 |
0.03 |
0.08 |
0.015 |
0.20 |
0.18 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr2 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr5 |
0.05 |
0.08 |
0.015 |
0.40 |
0.20 |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
bal |
Gr7 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
bal |
Gr9 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
2.5~3.5 |
2.0~3.0 |
/ |
/ |
/ |
bal |
Gr12 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
0.2~0.4 |
0.6~0.9 |
bal |
Tensile requirements
Grade |
Tensile strength(min) |
Yield strength(min) |
Elongation(%) |
||
ksi |
M Pa |
ksi |
M Pa |
||
1 |
35 |
240 |
20 |
138 |
24 |
2 |
50 |
345 |
40 |
275 |
20 |
5 |
130 |
895 |
120 |
828 |
10 |
7 |
50 |
345 |
40 |
275 |
20 |
9 |
90 |
620 |
70 |
438 |
15 |
12 |
70 |
438 |
50 |
345 |
1 |

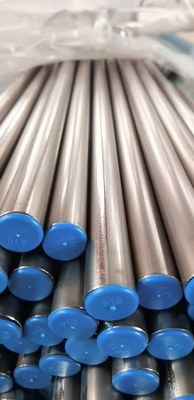

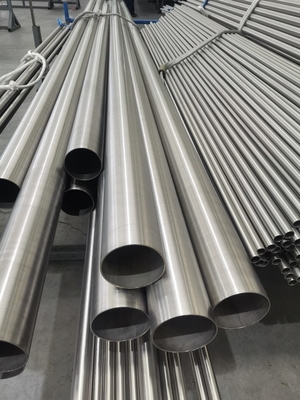

Product Show
Exhibition & Customer Visiting
Titanium Welded Pipe Tube ASTM B338 ASTM B862 Gr1 Gr2 OD6-89mm WT0.35-2.0mm Application Case
Titanium Welded Pipe Tube have numerous applications in various industries. Here are a few examples:
1.Aerospace Industry: Titanium welded tubes are extensively used in the aerospace industry for manufacturing aircraft components such as fuel tanks, hydraulic systems, and structural parts. The lightweight and high-strength properties of titanium make it an ideal material for such applications.
2.Chemical Industry: Titanium welded tubes are highly resistant to corrosion and are therefore widely used in the chemical industry for manufacturing equipment such as heat exchangers, condensers, and reactors.
3.Oil and Gas Industry: Titanium welded tubes are used in the oil and gas industry for manufacturing heat exchangers, pipelines, and other equipment that require high strength and corrosion resistance.
4.Medical Industry: Titanium welded tubes are extensively used in the medical industry for manufacturing surgical implants, such as artificial hip joints and dental implants. The biocompatibility of titanium makes it an ideal material for such applications.
5.Marine Industry: Titanium welded tubes are highly resistant to corrosion, making them an ideal material for manufacturing marine equipment such as seawater cooling systems, desalination plants, and offshore oil rigs.
Overall, titanium welded tubes that conform to ASTM B338 and ASTM B862 standards and are available in grades Gr1, Gr2, and Gr12, with an OD of 6mm to 89mm and a WT of 0.35mm to 2.0mm, have numerous applications in various industries, and their high strength, lightweight, and corrosion-resistant properties make them an ideal material for such applications.
