Titanium Flanges WN RF Class150 Welding Neck Flanges Raised Face for Heat Exchanger
Place of Origin | China |
---|---|
Brand Name | CSTY2022 |
Certification | ISO9001 |
Model Number | Welded neck flange |
Minimum Order Quantity | 1pc |
Price | $30.00~$45.00/kg |
Packaging Details | Export wooden box package with metal binding to ensure the shipping safe and your suggestion welcome. |
Delivery Time | 10~15 work days |
Payment Terms | T/T, L/C |
Supply Ability | 2000 Pieces per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStandard | ASME B16.5 DIN EN1092 | Size | 1/2"~ 60"NB NPS 1/2 - NPS 24 (DN 10 - 2000) |
---|---|---|---|
Shape | Welding Neck | Pressure Class | 150# 250# 300# 400# 500# 600# 900# 1500# 2500# |
Grade | Gr1 Gr2 GR5 Gr7 Gr9 Gr12 Or Other Customized Material | Application | Industrial, Heat Exchanger, Medical, Auto Exhaust, Industry/medical |
Surface | Polished, Pickling, Acid Pickled, Bright Finish, Polishing | Color | Sliver, Titanium Original Color, Ti Natural, Grey |
Highlight | Raised Face Titanium Pipe Flange,Class150 Titanium Flanges,WN RF welding neck flanges |
Titanium Flanges WN RF Class150 Welding Neck Flanges Raised Face
Titanium welding neck flanges with raised face (WN RF) are a type of flange that is commonly used in piping systems. They are designed to be welded to the end of a pipe, and provide a secure connection between two pipes or a pipe and a piece of equipment.
The term "raised face" refers to the fact that the flange has a raised area around the bore hole, which helps to center the gasket and provide a more secure seal. This raised area is typically 1/16" to 1/4" high, and extends beyond the bolt holes.
Welding neck flanges have a long tapered hub, which allows for easy alignment and welding to the pipe. The tapered design also reduces the stress concentration at the base of the flange, making it less susceptible to cracking and other types of damage.
Titanium is a popular material for flanges due to its excellent corrosion resistance and strength-to-weight ratio.
Titanium Flanges WN RF Class150 Welding Neck Flanges Raised Face Specification
Material Grade:Gr1 Gr2 GR5 Gr7 Gr9 Gr12 or other customized material
Standard:ANSI B16.5, ASTM B16.5, ASME B16.47, JIS B2220, DIN2627-2628,AWWA ASTM A182, AND ASME SA182
Size:1/2"~ 60"NB NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure Class:
PN0.25~32Mpa
(DIN) PN6 PN10 PN16 PN25 though PN250
150# 250# 300# 400# 500# 600# 900# 1500# 2500#
Flange surface:FF RF TG RJ MFM
Chemical requirements
|
N |
C |
H |
Fe |
O |
Al |
V |
Pd |
Mo |
Ni |
Ti |
Gr1 |
0.03 |
0.08 |
0.015 |
0.20 |
0.18 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr2 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr5 |
0.05 |
0.08 |
0.015 |
0.40 |
0.20 |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
bal |
Gr7 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
bal |
Gr9 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
2.5~3.5 |
2.0~3.0 |
/ |
/ |
/ |
bal |
Gr12 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
0.2~0.4 |
0.6~0.9 |
bal |
Tensile requirements
Grade |
Tensile strength(min) |
Yield strength(min) |
Elongation(%) |
||
ksi |
M Pa |
ksi |
M Pa |
||
1 |
35 |
240 |
20 |
138 |
24 |
2 |
50 |
345 |
40 |
275 |
20 |
5 |
130 |
895 |
120 |
828 |
10 |
7 |
50 |
345 |
40 |
275 |
20 |
9 |
90 |
620 |
70 |
438 |
15 |
12 |
70 |
438 |
50 |
345 |
18 |

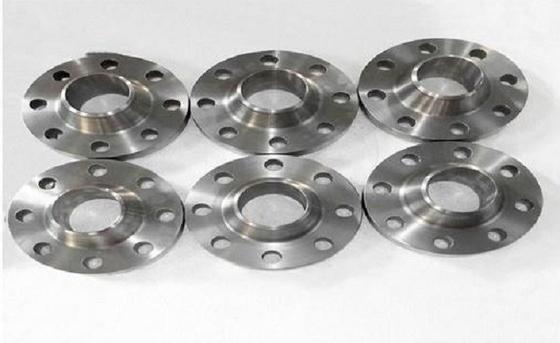

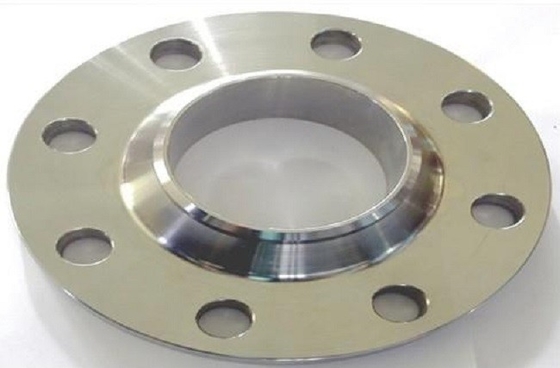

Drawing and photos of Ti flange WN
Quality & Inspection:
1. PMI test to verify material grade.
2. Dimension controlling during fabricating and finished.
3. All of the products have been 100% press tested before shipping.
4. Packed in Fumigation-free plywood box.
5. Third party inspection available.
6.Trade Assurance :You can pay to alibaba directly.If the goods does not meet your requirement or late shipment,
Alibaba will pay your money.So you are very safe in whole process.
Titanium Flanges WN RF Welding Neck Flanges Raised Face Application Case
Titanium welding neck flanges with raised face (WN RF) are used in a variety of applications where high strength and corrosion resistance are required. Here are some examples of where these flanges might be used:
1.Chemical industry: Titanium WN RF flanges are commonly used in the chemical industry, where they are used to connect pipes and equipment that are exposed to highly corrosive chemicals. The raised face design helps to provide a secure seal, while the titanium material offers excellent corrosion resistance.
2.Oil and gas industry: Titanium WN RF flanges are also used in the oil and gas industry, where they are used to connect pipelines that transport oil and gas over long distances. The flanges are often used in offshore applications, where they are exposed to harsh environments such as saltwater and extreme temperatures.
3.Aerospace industry: The aerospace industry requires lightweight, strong and corrosion-resistant materials for its components. Titanium WN RF flanges are used in aerospace applications where weight reduction is critical, such as in the construction of aircraft fuel tanks and other components.
4.Medical industry: Titanium WN RF flanges are also used in the medical industry, where they are used to connect pipes and equipment in medical gas delivery systems. The titanium material is non-toxic and biocompatible, making it suitable for use in medical applications.
Overall, titanium WN RF flanges are widely used in industries where high strength and corrosion resistance are required, as well as in applications where weight reduction is critical. Proper selection and installation of these flanges is important to ensure a safe and reliable connection.
