100" Titanium Flanges Class 300 Gr5 Forged Casting
Place of Origin | China |
---|---|
Brand Name | CSTY2022 |
Certification | ISO9001 |
Model Number | Weld neck flange, Socket weld flange, Threaded flange, Slip on flange |
Minimum Order Quantity | 1pc |
Price | $7.00 - $85.00/ Piece |
Packaging Details | Export wooden box package with metal binding to ensure the shipping safe and your suggestion welcome. |
Delivery Time | 10~15 work days |
Payment Terms | T/T, L/C |
Supply Ability | 2000 Pieces per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStandard | ASME B16.5 DIN EN1092 | Shape | Weld Neck Flange, Socket Weld Flange, Threaded Flange, Slip On Flange |
---|---|---|---|
Size | 3/8"-100" | Grade | Titanium Gr5 |
Color | Bright Silver | Pressure | Class150/300/600/9001500/2500 |
Application | Industrial, Heat Exchanger, Medical, Auto Exhaust, Industry/medical | Technics | Forged Casting |
Highlight | 100" Titanium Flanges,Class 300 Titanium Flanges,Gr5 Plate flange |
Grade 5 Titanium flange astm b16.5 Weld neck flanges, Slip-On Flanges,Blind Flanges,Socket Weld Flanges,Threaded Flanges
1. Product Description
Type |
Code |
Plate flange |
PL |
Slip on flange |
SO |
Weld neck flange |
WN |
Socket weld flange |
SW |
Threaded flange |
TH |
Blind flange |
BL |
Integral type flange |
IF |

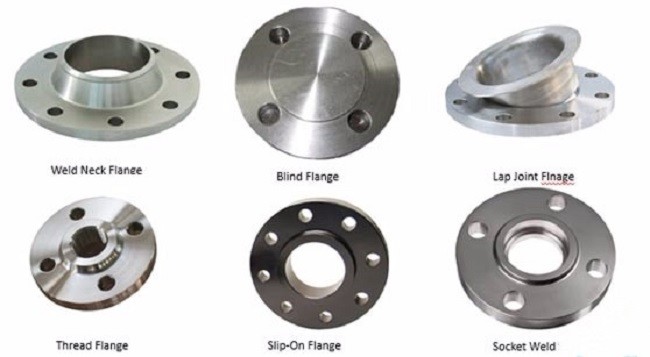

2. Many different types of titanium flanges:
The oil, gas, and petrochemical industries use many different types of titanium flanges, with each type used in specific situations in order to maximize the life of the flange, ease of installation, and overall cost.
Weld neck flanges
The weld flange is the standard against which all other ANSI flanges are measured when it comes to strength and wear life. Long weld neck flanges are the standard because they are used for many different high-pressure applications at a variety of extreme temperatures and are designed to limit turbulence and erosion at the joint.
Slip-On Flanges
In general, these flanges are rated at about two-thirds of the strength of a standard long weld neck flange and they have a fatigue life of about one-third of that of a comparable long-weld neck flange. They are connected to pipes using two filet welds, one at the outside of the flange and another at the inside of the flange. This makes them a bit more time consuming to install on a pipe, as well as reduces the versatility of the flange because combining them with elbow and tees is not possible. All fittings used with slip-on flanges must have a straight end.
Blind Flanges
Blind pipe flanges seal off pipes, valves, and ASME pressure vessel openings while providing an option to expand the pipeline network in the future. These flanges are also often used for high-pressure testing within the pipeline network.
Socket Weld Flanges
Socket weld flanges are just about as strong as slip on flanges, but are about 50% stronger when it comes to resisting fatigue. These flanges are attached using a single fillet weld on the outside of the flange. This makes them less labor intensive to install.
Threaded Flanges
The best thing about threaded flanges is that they can be installed into a pipe system without welding. These are used for smaller pipe sizes most of the time and only for pipe systems that have thick walls.
3. Application: Petroleum, chemical, shipbuilding, machinery, metallurgy etc.
4. Packing
4. Baoji City Changsheng Titanium Co.,Ltd
* In the year 2001, set up the forging workshop.
* In 2006, registered for Changsheng Titanium Co.
* In 2008, started the global business, established Changtai Metals Trading Co.
* In 2008, worked with alibaba.com, and to be the golden supplier of alibaba.
* In 2010, researched and developed the technology of big seamless titanium tube.
* In 2012, finished the trial production of big seamless titanium tube sucessfully, and applied for the national patent.
* In 2013, made mass production of big seamless titanium tube.
* In 2014, developed the technology of Grade 5 tube, introduced Germany production equipment.
* In 2014, enlarged the production line of customized parts, made titanium radiators and heat exchangers for Canada Saltswork and American Ural Company.
*In 2015, finished the trial production of Grade 5 tubes, and started to make mass production.
* In 2016, set up foreign sales team in Xi'an City.
* In 2017, enlarged the production of tube.
* In 2018, enlarged the production of plate and anode.
* In 2019, we focus on India market, plan to attend two exhibitions India in September & November
5. FAQ
1. Are you the manufacturing or trading company?
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
2. Do you have a dedicated R & D team? Can you design a product for us?
We have a dedicated technical team responsible for research and development. But most of titanium fittings are standard, we can follow ASTM or other you asked.
3. Can you provide samples? Is there a charge?
Samples can be provided for a fee.
4. What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
5. How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
6. After-sales products, how to deal with problems?
Based on our statistics for each year, the probability of problems with titanium products is around 0.8%. There are two main reasons for the problem:
1) Among the products that have problems, 93% are misplaced in pre-sales communication, and the product that the customer needs is not really clear.
2) 5% is an unexpected situation and the extension of the construction period.
3) 2% is the problem of transportation and packaging. During long-distance transportation, the packaging is damaged and the surface is damaged.
7. What is your company's response to the product in question?
1) Verify and blame for pre-sales communication issues. Compensation is handled according to the proportion of liability.
2) We are 100% responsible for problems caused by damaged packaging during transportation.
Tag: titanium flange, Weld neck flanges, Slip-On Flanges,Blind Flanges,Socket Weld Flanges,Threaded Flanges
