Gr11 Titanium Stamping Sheet 0.5mm To 0.8mm For Plate Heat Exchanger Sheets Manufacturing

Name: Gr11 Titanium Stamping Sheet 0.5mm To 0.8mm For Plate Heat Exchanger Sheets Manufacturing
Brand: Changsheng Titanium
SKU: Titanium Stamping Sheet GR11
Price: 23.5 USD
Availability: InStock
Rating: 5 (158 reviews)

Place of Origin	China
Brand Name	Changsheng Titanium
Certification	ISO9001:2015
Model Number	Titanium Stamping Sheet GR11
Minimum Order Quantity	1 kg
Price	USD 23.5/kg - USD 24.5/kg
Packaging Details	Soft film wrapped inside, export standard crate outside.
Delivery Time	7-15 work days
Payment Terms	L/C, T/T
Supply Ability	30 Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Material	Titanium Stamping Sheet GR11	Thickness	0.5mm,0.6mm,0.8mm,etc.
Width	100mm To 1270mm	Supply State	Annealed
Supply Shape	In Coil, In Flat,or Filmed	Advantages	High Elongation Rate
Standard	ASTM B265	Applications	Titanium Plate Heat Exchanger
Keyword	Titanium Plate Heat Exchanger Sheets
High Light	0.5mm Titanium Heat Exchanger , GR11 Titanium Heat Exchanger , 0.8mm titanium sheet coil

Leave a Message

Product Description

Titanium Stamping Sheet GR11 0.5mm-0.8mm For Plate Heat Exchanger Sheets Manufacturing

Company offers commercially pure Titanium sheets grade 1 and titanium alloy sheets grade 11 & grade 17 at a resonable market price for the clients. Titanium sheet coils are made from fine quality pure titanium material in comply with ASTM B265 standard that we collect from reliable sources. Our company Baoji City Changsheng Titanium Co., Ltd has been occupied in titanium businesses for more than 20 years.
We specializes in exporting high quality Titanium sheet that are used for heat exchanger industry and many other industries.

Detailed Information of Titanium Plate Heat Exchanger Sheets GR11:

Material: Titanium Gr11 (Ti-0.0Pd)

Nomal Thickness of Sheets: 0.5mm - 1.0mm

Elongation Rate: >47%

Cupping Value: >9.5mm

Sheet Surface: Bright

Max. Width of the Sheet: 1270mm

Features: Deep drawing and high elongation rate

Advantage: Large stock, short lead time, competitive price

Supply Forms:

In coil sheet
In flat sheet
Be filmed
Also as per customers requirements

Due to customization, please contact us for satisfying your individualized requirement!

Mechanical Properties of of Titanium Sheets Gr11 (Min.):

Grade	Density	Tensile Strength	Non-proportional extension strength	Elongation	Cupping Value
Gr.11	4.5 g/cm3	MPa – 240	MPa-140	47%	9.5mm

Chemical Compositions of Titanium Sheets Gr11:

ASTM No.	Pd	N max	C max	H max	Fe max	O max	Balance
Grade 11	0.12~0.25	0.03	0.08	0.015	0.20	0.18	Ti

Characteristics:

1) Excellent corrosion resistance in many media.
2) Deep drawing and high elongation rate.
3) Smooth surface, no dirt layer, dirt coefficient greatly reduced.
4) High heat exchanging efficiency, energy saving.
5) Withstand with high temperature.
6) Long-life service.

Company Information:

Baoji City Changsheng Titanium Co.,Ltd. is located in Baoji City which is know as the"Titanium City".

Our factory was established in 2001.We focused on processing and sales of titanium and titanium

alloy (including titanium bar,titanium tubes,titanium sheet, titanium wire, titanium anode and titanium

casting,ect), The product is widely applied in chemical industry, metallurgy, petroleum, textile, medicine,

light industry, environmental protection, sports, mine,ocean and other fields. Our products have been

used in China over 15 years and exported to overseas had been steadily increased in North America,

Europe,Africa,South America,Middle East and Asia,etc.

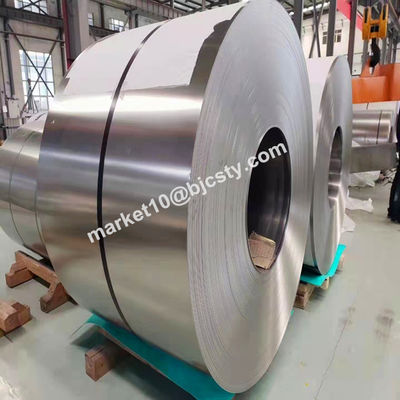

Pictures of titanium sheet in coil

Tags: Grade 11 Pd titanium sheets, Titanium heating sheets, Titanium plate heat exchanger plates, etc,.
