ASTM B265 Titanium Alloy Plate Gr12 Anti Corrosion For Ti Steel Composite Plate

Place of Origin China
Brand Name Changsheng
Certification ISO9001:2015
Model Number Titanium Alloy Plate Gr12
Minimum Order Quantity 10 kg
Price USD 45.0/kg - USD 55.0/kg
Packaging Details Soft film wrapped inside, export standard crate outside.
Delivery Time 7-15 work days
Payment Terms L/C, T/T
Supply Ability 30 Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material Titanium Alloy Plate Grade 12(Ti-03Mo-0.8Ni) Thickness 1mm To 60mm
Width 100mm To 2000mm Supply State Annealed
Surface Polished,Acid-washing,Sandblasting Advantages Anti-corrosion
Standard ASTM B265 Plate Surface Pickling And Smooth Surface
Applications Power Plant, Chemical, Petrochemical,Shipbuilding,etc.
High Light

Gr12 Titanium Alloy Plate


ASTM B265 Titanium Alloy Plate


Ti Steel Composite Plate

Leave a Message
Product Description

Titanium Plate Grade 12 Ti-0.3Mo-0.8Ni Alloy Plate Gr12 For Ti/Steel Composite Plate

Gr12 titanium plate has good corrosion resistance in chloride solution, hydrochloric acid, sulfuric acid and weak reducing acid, so it is widely used in petroleum, chemical industry and ocean engineering. Anti-corrosion titanium plate Grade12 is a near alpha titanium alloy with strong corrosion resistance in high temperature and high concentration of chloride. At the same time, it has good plasticity, cold formability and weldability. It is widely used as sealing surface material of container equipment, which is used to manufacture stripper, vacuum salt making device and pipeline.


Material: Titanium Alloy Grade 12(Ti-0.3Mo-0.8Ni)
Thickness: 1mm to 60mm
Width: 100mm to 2000mm
Longth: 100mm to 6000mm
Surface: Acid-washing, sandblasting
MOQ: 10kg
Our company Baoji City Changsheng Titanium Co., Ltd has been occupied in titanium businesses for more than 20 years.
We are specialized in supplying high quality Titanium sheets and titanium plates that is used to many industries. The
company offers pure titanium sheets and titanium alloy plates at a resonable market price for the clients. Gr12 Titanium Sheets
and Gr12 titanium plates are made from fine quality titanium material in comply with ASTM B265 standard that we collect from
reliable sources.

Ti/Steel Composite Plate:

Base Material: Q235,Q345R,Q345B, Q245R, SA516Gr70, etc,.
Clad Material: Gr1,Gr2, Gr7, Gr12.

Description of Titanium Metal Grade 12:

Ti-0.3Mo-0.8Ni (Grade 12) alloy is a kind of low alloying Ti - Mo - Ni alloy which improves the crack corrosion performance
of pure titanium. The alloy contains 0.5% Mo and 0.8% Ni, which not only strengthens the alloy, but also has good anti-crevice
corrosion performance for high temperature, low PH chloride and weak reductive acid. Its corrosion resistance is significantly
better than that of pure titanium and close to TA9 alloy. Ti-0.3Mo-0.8Ni alloy has been widely used in chemical industry. The
alloy can be used in annealing. Its main products are titanium sheets, titanium rods, titanium tubes, forging and titanium wires.


Characteristics of Titanium Plate Grade 12:

Ti-0.3Mo-0.8Ni Grade 12 alloy is widely used in the condition that the pure titanium can be corroded by cracks. The typical

equipment includes heat exchanger for producing zinc chloride or hydrochloric acid vapor, stripper for bromine and vacuum

salt production device.


Mechanical Properties of of Titanium Plates(Min.):

Grade Tensile strength,min Yield strength,0.2% offset



  ksi (min) MPa(min) ksi (min) MPa(min)
GR1 35 240 25 170 24
GR2 50 345 40 275 20
GR5 130 895 120 828 10E
GR7 50 345 40 275 20
GR9 90 620 70 483 15
GR12 70 483 20 345 18
Our Services & Strength
1-Set up from 2001, nearly 20 years manufacturering experiences in titanium industry.
2-Two real factory entitle, two complete production line of titanium bar and titanium tube,
   keep sure the high quality and delivery time.
3-ISO Quality Management System, and exclusive letters patent in titanium tube.
4-Professional 2 foreign sales teams, started 2008 years, 12 years service experiences.
Company Information:
Baoji City Changsheng Titanium Co.,Ltd. is located in Baoji City, China which is know as the"Titanium City".
Our factory was established in 2001and we are ISO9001:2015 certified. We focused on processing and
sales of titanium and titanium alloy (including titanium bar,titanium tubes,titanium plate, titanium wire,
titanium anode and titanium forging,ect), The product is widely applied in chemical industry, metallurgy,
petroleum, textile, medicine, light industry, environmental protection, sports, mine,ocean and other fields.
Our products have been used in China over 15 years and exported to overseas had been steadily
increased in North America, Europe, Africa, South America, Middle East and Asia,etc.

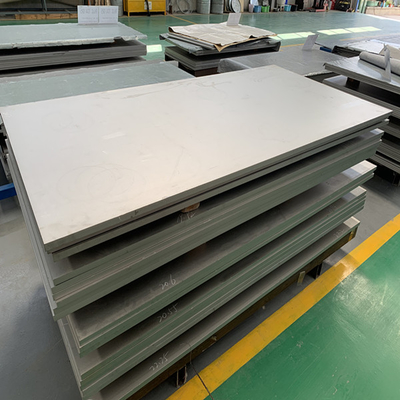

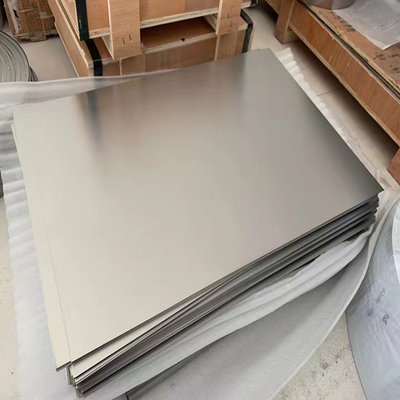

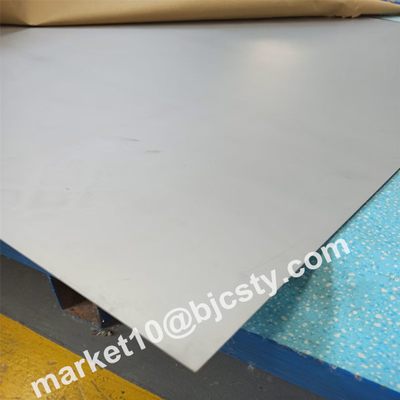

In Stock Titanium Plate Pictures
ASTM B265 Titanium Alloy Plate Gr12 Anti Corrosion For Ti Steel Composite Plate 0

Tags: ASTM B265 Titanium Plate, Gr12 Titanium plate tensile strength, Gr12 Titanium sheet corrosion resistance
