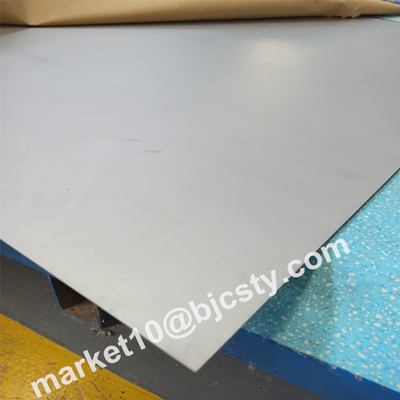

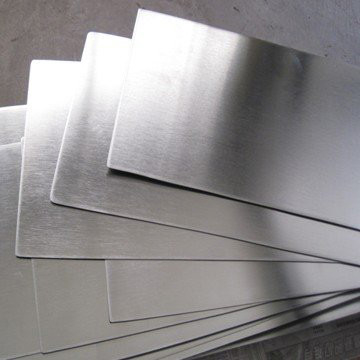

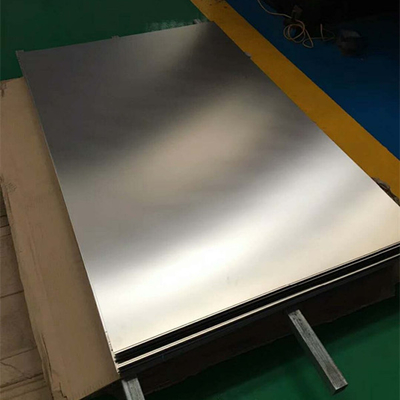

Titanium Plate Grade 7 TiPd Plate GR.7 5mm Thick For Titanium Clad Steel Plate
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001:2015 |
| Model Number | Titanium Plate Grade 7 |
| Minimum Order Quantity | 10 kg |
| Price | USD 205.00/kg - USD 215.00/kg |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Titanium Alloy Plate Grade 7(Pd) | Thickness | 1mm To 60mm |
|---|---|---|---|
| Width | 100mm To 2000mm | Supply State | Annealed |
| Surface | Polished,Acid-washing,Sandblasting | Advantages | Anti-corrosion |
| Standard | ASTM B265 | Applications | Power Plant,Chemical, Petrochemical,Shipbuilding,etc. |
| Keywords | Gr7 Titanium Alloy Sheets | Lead Time | 3 Days For Stock Plates |
| Highlight | 5mm Titanium Heat Exchanger,Pd Titanium Heat Exchanger,Clad Steel titanium alloy sheet |
||
Product Description
Titanium Plate Grade 7 Ti(Pd) Plate GR.7 5mm Thick For Titanium Clad Steel Plate. Leading titanium plate supplier in China. Corrosion resistance titanium plate Grade 7 is one of our main titanium mill material for exporting.We offer Gr7 titanium alloy plate in various sizes. Our company Baoji City Changsheng Titanium Co., Ltd has been occupied in titanium businesses for more than 20 years. We are specialized in manufacturing high quality Titanium sheets and titanium plates that is used to many industries. The company offers pure Titanium sheets and titanium alloy plates at a resonable market price for the clients. Titanium Sheets and titanium
plates are made from fine quality titanium material in comply with ASTM B265 standard that we collect from reliable sources.
Detailed Information of Titanium Plate Grade 7:
Material: Titanium Alloy Grade 7(Pd)
Thickness: 1mm to 60mm
Width: 100mm to 2000mm
Longth: 100mm to 6000mm
Surface: Acid-washing, sandblasting, Polishing
MOQ: 10kg
Description of Titanium Alloy Grade 7:
Titanium Grade 7 (Ti-0.12Pd,Ti-0.15Pd, Ti-2.0Pd), the most corrosion resistant of all currently available titanium alloys,
this grade is especially well suited to applications requiring resistance to general as well as localized crevice corrosion
in a wide range of reducing acid environments, including chlorides, and where low pH and high temperatures above
180ºF (83ºC) to 500ºF (260ºC) are prevalent. Grade 7 also exhibits good strength, welding and forming characteristics.
Due to customization, please contact us for satisfying your individualized requirement!
Characteristics of Titanium Plate Grade 7:
1) Excellent corrosion resistance in many media, the wall can be more thinner than other materials, thus improve the heat transfer effect.
2) Smooth surface, no dirt layer, dirt coefficient greatly reduced.
3) Low density, high strength, small volume and weight.
4) High heat exchanging efficiency, energy saving.
5) Withstand with high temperature.
6) Long-life service.
7) It is non-magnetic, non-toxic.
Mechanical Properties of of Titanium(Min.):
| Grade | Tensile strength,min | Yield strength,0.2% offset |
Elongation (%) |
||
| ksi (min) | MPa(min) | ksi (min) | MPa(min) | ||
| GR1 | 35 | 240 | 25 | 170 | 24 |
| GR2 | 50 | 345 | 40 | 275 | 20 |
| GR5 | 130 | 895 | 120 | 828 | 10E |
| GR7 | 50 | 345 | 40 | 275 | 20 |
| GR9 | 90 | 620 | 70 | 483 | 15 |
Our Services & Strength
1-Set up from 2001, nearly 20 years manufacturering experiences in titanium industry.
2-Two real factory entitle, two complete production line of titanium bar and titanium tube,
keep sure the high quality and delivery time.
3-ISO Quality Management System, and exclusive letters patent in titanium tube.
4-Professional 2 foreign sales teams, started 2008 years, 12 years service experiences.
3-ISO Quality Management System, and exclusive letters patent in titanium tube.
4-Professional 2 foreign sales teams, started 2008 years, 12 years service experiences.
RFQ:
1.Are you the manufacturing or trading company?
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
2.Do you have a dedicated R & D team? Can you design a product for us?
We have a dedicated technical team responsible for research and development. But most of titanium fittings are standard, we can follow ASTM B338 / ASME SB338 or other you asked.
3.Can you provide samples? Is there a charge?
Samples can be provided for a fee.
4.What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
5.How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
Tags: Titanium Alloy Sheets, Titanium Alloy Plates Grade 7, 5mm Titanium Plates in stock, Gr7 Titanium Alloy Plates Factory Supplier
