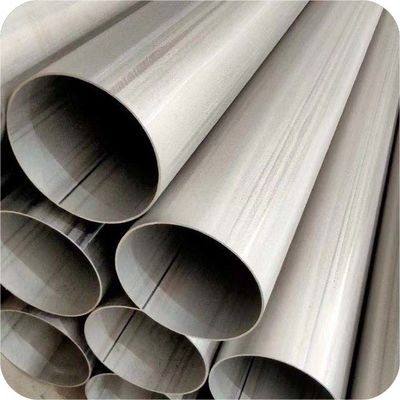

Gr2 Titanium Welded Pipe THK5.0mm For Petroleum
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Gr2 Welding Titanium Pipe | OD | 45-600mm |
---|---|---|---|
W.T. | 0.1-5.0mm | Length | 1000-6000mm |
Surface | Sand Blast ,Acid Wash,Polished | Standard | ASTM B862 |
Technique | Welded | Shape | Round |
Application | Industrial | Certificate | ISO9001:2015 |
Highlight | 5.0mm Titanium Welded Pipe,Acid Wash Titanium Welded Pipe,Gr2 tube ti |
Gr2 Pure Titanium Welded Pipe For Petroleum
Welded pipe is made of titanium and titanium alloy strip or wide plate by crimping rolling into the shape of the pipe,Titanium and titanium alloy welded pipe, has excellent strength, hardness, small density, light weight, high temperature resistance, low temperature resistance, good machining performance, excellent corrosion resistance, non-magnetic non-toxic, good heat exchange performance. It also has memory and superconductivity.
The Titanium welded pipes provided by our company have the following characteristics:
1. Heat treatment: In-line bright annealing.
2. Well-proportioned wall thickness and high precision wall thickness.
3. Beside the normal executive standard, we could also make the tubes according to your own requirements, such as wall thickness tolerance, hardness, surface requirements and etc by designing different technical requirements and production technology, try our best to support you.
4. Quality test for titanium welded pipe:
100% Ultrasonic Test,100% Eddy current test,100% Hydraulic Test,100% X-ray test
EN1024/3.1,Mechanical properties test,Chemical composition test,Hardness test
Flattening test,Flaring test
Application:
Power Plant Condenser, Sea Water Desalinization, Petroleum, Chemicals, Medical Appliance, Ship Building, Papermaking, Food Processing, Fluid Transportation Piping, Automobile Exhaust Pipe and so on.
Specification For Titanium Welded Pipe :
Outside(mm)
|
Inside
|
Wall Thinkckness
|
Length
|
Tolerance
|
130.1-170.1mm
|
120.1mm
|
5-25mm
|
1000-6000mm
|
≤0.5
|
134.8-174.2mm
|
124.8mm
|
5-25mm
|
1000-6000mm
|
≤0.5
|
207.8-247.8mm
|
197.8mm
|
5-25mm
|
1000-6000mm
|
≤0.5
|
384.3-424.3m
|
374.3mm
|
5-25mm
|
1000-6000mm
|
≤0.5
|
542-582mm
|
532mm
|
5-25mm
|
1000-6000mm
|
≤0.5
|
FAQ
1. Are you the manufacturing or trading company?
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
2. Do you have a dedicated R & D team? Can you design a product for us?
We have a dedicated technical team responsible for research and development. But most of titanium fittings are standard, we can follow ASTM or other you asked.
3. Can you provide samples? Is there a charge?
Samples can be provided for a fee.
4. What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
5. How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
6. After-sales products, how to deal with problems?
Based on our statistics for each year, the probability of problems with titanium products is around 0.8%. There are two main reasons for the problem:
1) Among the products that have problems, 93% are misplaced in pre-sales communication, and the product that the customer needs is not really clear.
2) 5% is an unexpected situation and the extension of the construction period.
3) 2% is the problem of transportation and packaging. During long-distance transportation, the packaging is damaged and the surface is damaged.
7. What is your company's response to the product in question?
1) Verify and blame for pre-sales communication issues. Compensation is handled according to the proportion of liability.
2) We are 100% responsible for problems caused by damaged packaging during transportation.
Tag:Titanium welded pipe,titanium pipe welding,welding titanium pipe
