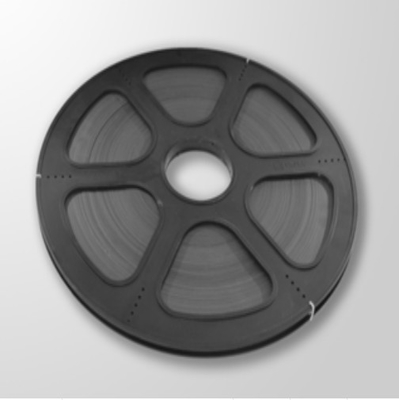

MMO Ribbon cathodic protection anode of the outer bottom plate of the storage tank

  • MMO Ribbon cathodic protection anode of the outer bottom plate of the storage tank
  • MMO Ribbon cathodic protection anode of the outer bottom plate of the storage tank
  • MMO Ribbon cathodic protection anode of the outer bottom plate of the storage tank
Place of Origin CHINA
Brand Name CHANGSHENG
Certification ISO9000:2015
Model Number CS-MMOR
Minimum Order Quantity 10 pcs
Packaging Details Clients’ requirement
Delivery Time 20 working days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Substrate Gr1 Titanium Ribbon Current 17mA-86mA
Popular Size 6.35*0.635mm /12.7*0.9mm Service Life 20-50years
Size Customizable Usage Storage Tank
Highlight

MMO cathodic protection anode ribbon
Leave a Message
Product Description

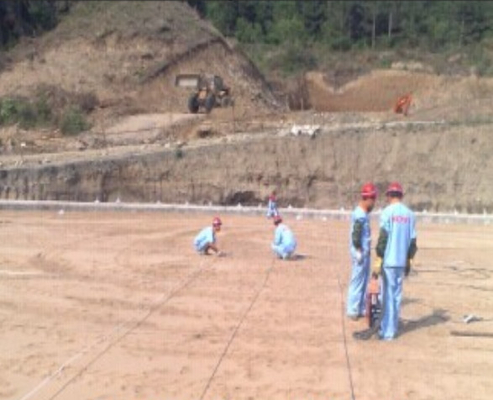

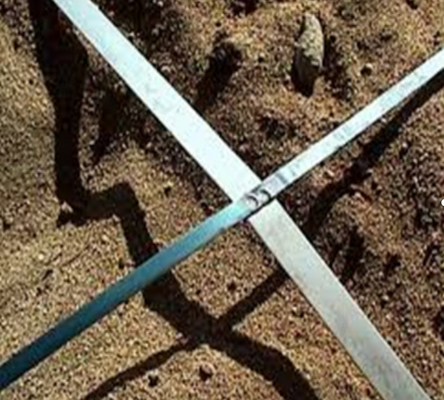

MMO strip anode is widely used in cathodic protection of the outer bottom plate of the storage tank. The MMO strip anode strip and the titanium conductive sheet are cross-spot welded to form an anode network, which is buried together in the sand cushion layer at the bottom of the storage tank.



Product specifications and performance:

Item
Width
(mm)
W.T
(mm)
Length
(m)
Current output
(mA/m)
Life Span
(Year)
Application

Strip anode		 6.35 0.635 152 17 20-50
Storage Tank

Strip anode		 6.35 0.635 152 34 20-50
Storage Tank

Strip anode		 6.35 0.635 152 43 20-50
Storage Tank

Conductive strip		 12.7 0.9 152 86 20-50
Storage Tank




The titanium substrate used is a strip that meets ASTM B265 Gr1.

Chemical composition		 (Fe) (C) (N) (H) (O) (Ti)
Others

Maximum content		 0.20% 0.08% 0.03% 0.02% 0.18% 余量
Balance		 0.40%
Coating system: Iridium-Tantalum coating

Strengthening life test standard: NACE TM0108-2008
Test conditions Testing time

In 1mol/L NA2SO4 solution, current density is 15000A/㎡
Strengthening life is more than 72 hours



MMO cathode protection anode rod



The MMO rod anode is the main body of the probe anode. The probe anode is mainly used in the impressed current cathodic protection system on the inner surface of pipelines, water tanks, pressure vessels, etc.




Item		  DIA
(mm)
Lenght
(mm)
Surface Area
(㎡)
Current output(A/m)
Life Span
(Year)
Application

Titanium anode rod		 12 1000 0.04 4 20
Pipes, water tanks,
pressure vessels

Titanium anode rod		 12 1000 0.04 24 20
Pipes, water tanks,
pressure vessels

Titanium anode rod		 20 1000 0.06 6 20
Pipes, water tanks,
pressure vessels

Titanium anode rod		 20 1000 0.06 36 20
Pipes, water tanks,
pressure vessels

*Other specifications and sizes can be customized according to customer needs.

The titanium substrate used is a plate that meets ASTM B338 Gr1.




Chemical composition		 (Fe) (C) (N) (H) (O) (Ti)
Others

Maximum content		 0.20% 0.08% 0.03% 0.02% 0.18%
Balance		 0.40%
Coating system: Ruthenium-Iridium coating

Strengthening life test standard: NACE TM0108-2008
Test conditions Testing time

In 1mol/L NA2SO4 solution, current density is 15000A/㎡
Enhanced life span greater than 48 days
