Titanium anode for ammonia nitrogen wastewater treatment Ir series coating

Place of Origin China
Brand Name CSTI
Certification ISO9001
Model Number Titanium anode for ammonia nitrogen wastewater treatment-20230506
Minimum Order Quantity 1 Piece
Price $20.00 - $100.00/ Piece
Packaging Details 1. Packing with moisture-proof paper; 2. Packing with foam plastics in all sides; 3. Packing products in standard wooden cases.
Delivery Time 10~15 work days
Payment Terms T/T, L/C
Supply Ability 1000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Substrate Grade 1 Titanium Coating IrO2 (Iridium Oxide) Coating, With Thickness Of 2-5 Microns
Shape Flat Plate, Mesh, Or Custom Designs Available Size Customizable
Maximum Operating Voltage 6 V Current Density 1-5 A/m2
Oxygen Evolution Potential 1.3 V Vs Ag/AgCl Hydrogen Evolution Potential -0.5 V Vs Ag/AgCl
Electrode Efficiency ≥ 90% Lifetime 3-5 Years, Depending On Usage And Maintenance
High Light

COD Degradation Titanium Cathode Plate


High Iridium Titanium Cathode Plate


IrO2 Titanium Electrode Anode

Leave a Message
Product Description

Titanium anode for ammonia nitrogen wastewater treatment

Ammonia nitrogen wastewater mainly comes from chemical fertilizer, coking, petrochemical, pharmaceutical, food, landfill, etc. A large amount of ammonia nitrogen wastewater discharged into water bodies not only causes eutrophication of water bodies, resulting in black and smelly water bodies, increasing the difficulty and cost of water treatment, and even toxic effects on people and organisms.
At present, with the rapid development of chemical fertilizer, petrochemical and other industries, the resulting high nitrogen nitrogen wastewater has become one of the constraints of the development of the industry.Nitrogen and nitrogen are one of the important causes of pollution, especially the pollution caused by high concentration ammonia nitrogen wastewater. Therefore, the economic and effective control of high concentration pollution has become an important topic of the current environmental protection workers, has been highly valued by the industry.
Titanium is commonly used material for anodes in wastewater treatment applications due to its high resistance to corrosion. In the treatment of ammonia nitrogen wastewater, titanium anodes can be used in a variety of electrochemical processes, including electrocoagulation, electrooxidation, and electrochemical reduction. In electrocoagulation, a direct current is applied to the titanium anode, causing metal ions to dissolve into the wastewater, which then reacts with the pollutants. This reaction causes the pollutants to coagulate and settle, making it easier to remove them from the wastewater. In electrooxidation, the titanium anode is used to generate hydroxyl radicals, which can break down pollutants in the wastewater. This process can be effective for treating a wide range of pollutants, including ammonia nitrogen. In electrochemical reduction, the titanium anode is used to generate hydrogen gas, which can react with pollutants in the wastewater to break them down into harmless substances.

Overall, the use of a titanium anode in the treatment of ammonia nitrogen wastewater can be an effective and efficient method for reducing the concentration of pollutants in the wastewater. However, the specific electrochemical process used will depend on the specific characteristics of the wastewater and the desired treatment outcomes.

Here is some technical data for titanium anode used in ammonia nitrogen wastewater treatment:


  • High-quality Grade 1 titanium substrate

  • IrO2 (Iridium Oxide) coating, with thickness of 2-5 microns

Physical Characteristics:

  • Shape: Flat plate, mesh, or custom designs available

  • Size: Customizable

  • Electrical Resistivity: 0.056 micro-ohm-cm (at 20°C)

  • Thermal Conductivity: 15.6 W/mK (at 20°C)

Electrochemical Characteristics:

  • Maximum Operating Voltage: 6 V

  • Current Density: 1-5 A/m2

  • Oxygen Evolution Potential: 1.3 V vs Ag/AgCl

  • Hydrogen Evolution Potential: -0.5 V vs Ag/AgCl

  • Surface Area: Customizable

  • Electrode Efficiency: ≥ 90%

  • Lifetime: 3-5 years, depending on usage and maintenance

Environmental Characteristics:

  • Temperature Range: Up to 80°C

  • pH Range: 0-14

  • Chemical Resistance: Resistant to most acids and bases, as well as many other chemicals

  • Corrosion Resistance: Resistant to corrosion, even in harsh environments


  • Electrocoagulation, electrooxidation, and electrochemical reduction of wastewater containing ammonia nitrogen and other pollutants

  • Suitable for use in both batch and continuous flow systems

Note that the technical data provided is just an example, and specifications may vary depending on the manufacturer and specific application. It's important to consult with our technical team to ensure that the titanium anode is appropriate for the specific wastewater treatment system.

Our control and Test :

(1) Main quality indicators: titanium substrate, precious metal ratio, accelerated life, coating binding force to the titanium substrate(coating adhesion)
(2) With advanced technology & equipment, abundant experiences and skilled workers,during the production of Titanium Anode, each process must be strictly supervised and tested, including the surface treatment of titanium material, coating quality, coating evenness, coating binding force to the titanium substrate(coating adhesion) and so on.
(3) We have own R&D, Production and Sales department, we always struggling to supply the product with the most excellent quality and the most favorable price and supply the most efficient service.
(4) Each production process are looked at to make sure the specifications and performance are qualified.
(5) Strict Pre-delivery inspection for each order,only when all specifications and performance are met,the product is allowed to be sent out.

Test we done:


Test Items





No stains, indentation and impurities



Binding force

Transparent adhesive tape

No peeling at the bend


bullion content




chlorine evolution potential




Chlorine evolution polarizability MV




strengthening lifetime Min



Test conditions

1.Electrolyte composition:Sulfuric acid electrolyte (AR).electrolyte :0.25mol/L

2.Test temperature :20-40℃

3.electric current density:20000A/m2 (3)Tank voltage:4.2-15V

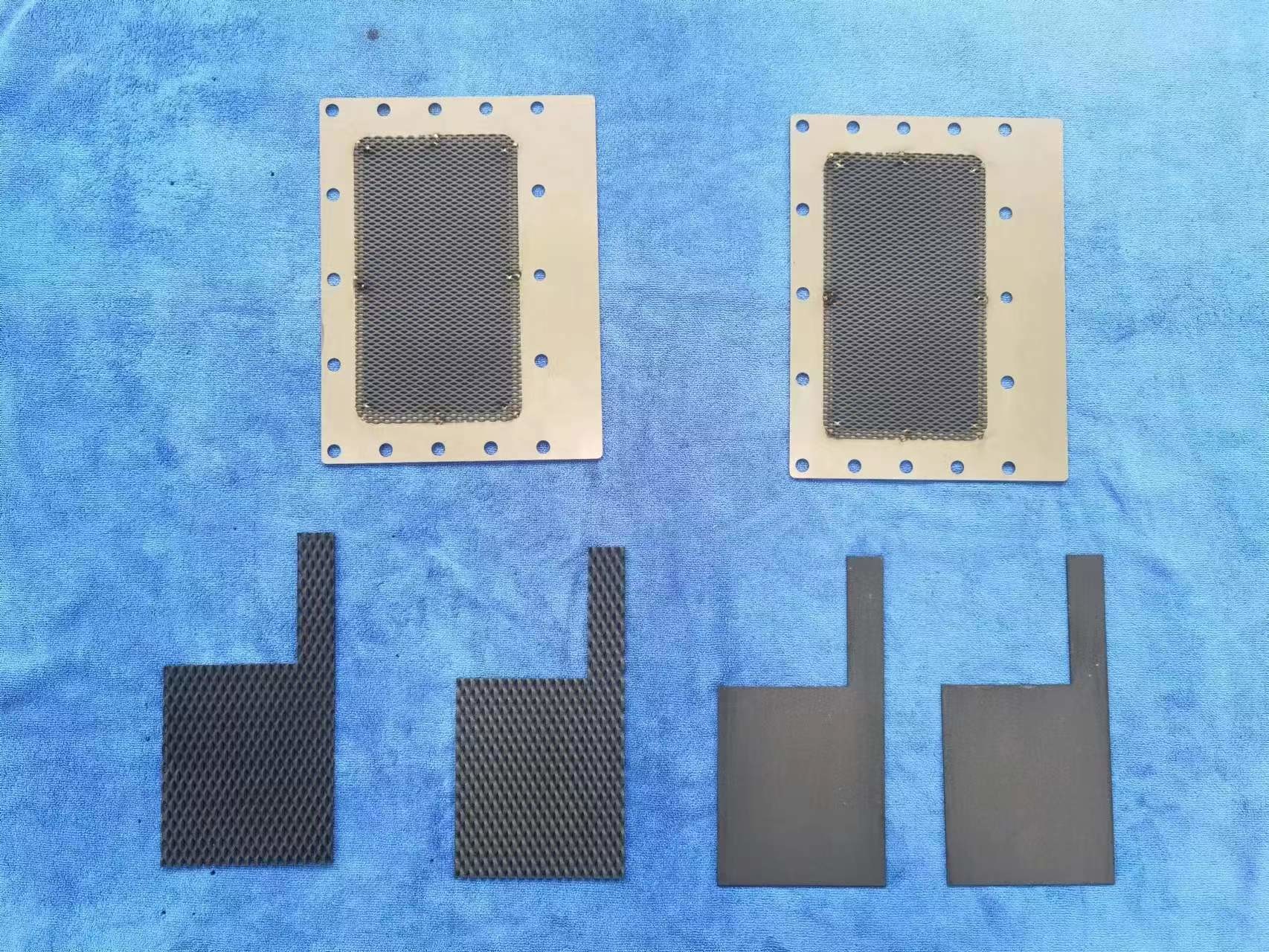

Titanium anode for ammonia nitrogen wastewater treatment Ir series coating 0

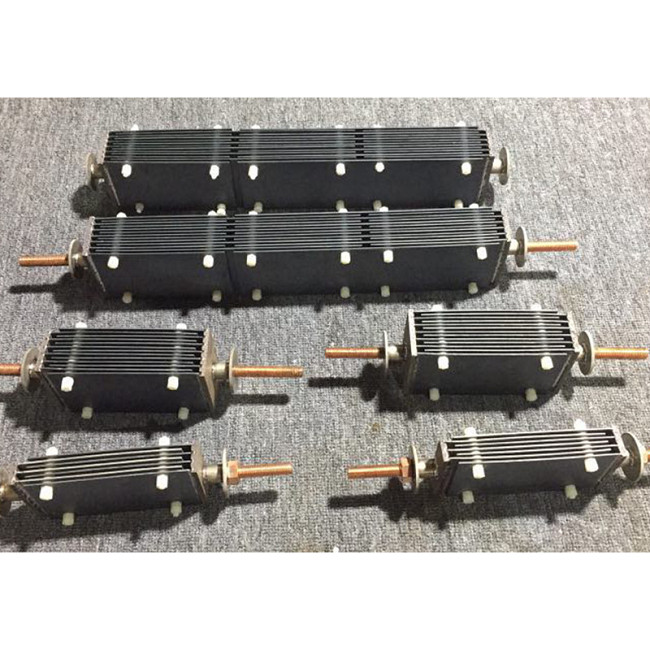

Titanium anode for ammonia nitrogen wastewater treatment Ir series coating 1

Here is an example of a real-world application of titanium anodes for ammonia nitrogen wastewater treatment:

Case Study: Wastewater Treatment Plant in China


A wastewater treatment plant in China was experiencing difficulties in treating ammonia nitrogen in their wastewater effluent. The plant was using traditional biological methods for treatment, but the process was not efficient in removing high levels of ammonia nitrogen.

To address the issue, the plant installed a new electrochemical system using titanium anodes with an IrO2 coating. The system utilized a process called electrooxidation, which applies a voltage to the electrodes to generate active oxidizing agents that react with ammonia nitrogen and other pollutants in the wastewater.

The electrochemical system was designed with multiple titanium anodes in a reactor tank, and the wastewater was continuously circulated through the reactor to ensure effective treatment. The process allowed for complete removal of ammonia nitrogen and other pollutants, and the treated wastewater met the local discharge standards.

The use of titanium anodes with an IrO2 coating proved to be an effective solution for the plant's ammonia nitrogen treatment needs. The electrochemical system was able to achieve high removal rates of ammonia nitrogen, while also being cost-effective and requiring low maintenance.

Overall, this case study highlights the potential benefits of using titanium anodes for ammonia nitrogen wastewater treatment, particularly in situations where traditional treatment methods are not effective.
