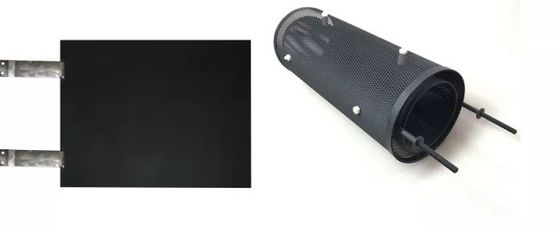

Ir-Ta Coated Mixed Metal Oxide MMO Titanium Tubular Electrode Electroplating
| Place of Origin | CHINA |
|---|---|
| Brand Name | CSTY |
| Certification | ISO9001:2015 |
| Model Number | Gr1 pure titanium |
| Minimum Order Quantity | 10kgs |
| Price | $35.00 - $125.00/ kg |
| Packaging Details | film and wooden case,carton Packaging can be according to customer requirements. |
| Delivery Time | 15~20 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000 Kilogram/Kilograms per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 3V | Corrosion Resistance | High |
|---|---|---|---|
| Solution | Salt Water/NaCl Solution | Dimension | Custom-made Sizes Available |
| Substrate Material | Pure Titanium GR1 | Material | Titanium |
| Electrode Efficiency | ≥ 90% | Lifetime | Available For 50,100 Years |
| Size | Customizable | Ph Value | 1-12 |
| Life | More Than 3 Years | Width | 1000-1500mm |
| Coating Type | RuO2 / RuO2-IrO2 | Service Time | 1-10years |
| Coating | Platinum | ||
| Highlight | Electroplating Titanium Tubular Electrode,MMO Titanium Tubular Electrode,Ir-Ta Coated Titanium Tubular Electrode |
||
Product Description
Description
Titanium anodes are widely used in electrophoretic coating (E-coating) processes, a type of electrochemical deposition. In this process, the anode attracts negatively charged coating particles suspended in the solution, which are then deposited onto the surface of a substrate.
Titanium is an ideal material for anodes due to its excellent corrosion resistance, low electrical resistance, and long service life. It maintains performance in harsh chemical environments while remaining cost-effective compared to other metals.
Specification
| Item | Description |
|---|---|
| Product name | Titanium Anode |
| Material | Gr1 Titanium Plate |
| Regular size | 2×350×L mm, 2×360×L mm, 2×400×L mm |
| Shape | Plate, Mesh, Tubular, Bar, Wire |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Material Coating | Iridium Oxide (IrO₂) |
| Coating Weight | ≈12 g/m² |
| Coating Area | Single-sided coating |
| Medium | Electrophoretic paint (E-coat) |
| Coating Type | Customized |
| Operating Temperature | ≤ 32°C |
| Current Density | ≤ 80 A/m² |
| Operating Life (Guaranteed) | > 2 years |
| Application | Electrophoretic coating of car bodies and metal parts |
Applications
1. Electrochemical Industry
Electrolysis: Used in the production of chlorine, alkali, and hydrogen due to high efficiency and durability.
Battery Manufacturing: Improves the stability and lifespan of various battery systems.
Solar Cells: Essential in dye-sensitised solar cells for enhanced energy conversion efficiency.
2. Chemical Industry
Catalyst Support: Serves as a stable and efficient base for catalysts used in the petroleum, chemical, and pharmaceutical industries.
Anion Exchange Membrane: Used in the fabrication of anion exchange membranes to effectively remove harmful ions and impurities from wastewater.
