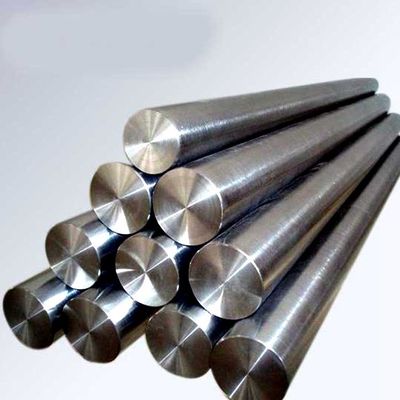

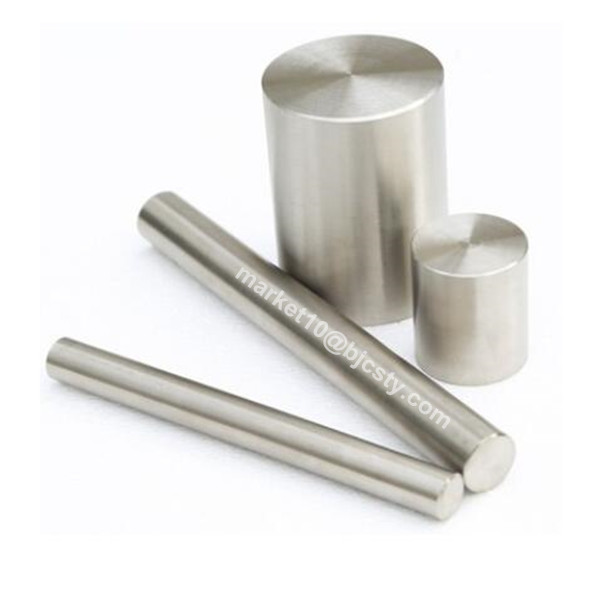

Niobium Rod 99.95% Pure Alloy Bar Titanium Niobium Superconductor Rod
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Boiling Point | 4742°C | Specification | Customized |
|---|---|---|---|
| Application | Cover For Niobium Crucibles | Oxidation States | +2, +3, +4, +5 |
| Conditions | Annealed | Processing | Cold Rolling |
| Ionization Energies | 652.1, 1380, 2416, 3700 KJ/mol | Purity | ≥ 99.95% |
| Atomic Weight | 92.90638 G/mol | Feature | High Strength |
| Size | As Your Need | Electron Affinity | 86.1 KJ/mol |
| Tensile Strength | 125Mpa | Model Numbe | Niobium |
| Type | Wire | ||
| Highlight | Titanium Niobium Superconductor Rod,99.95% Pure Niobium Rod,Alloy Bar Niobium Rod |
||
Product Description
Introduction
Niobium rods are manufactured by forging and polishing high-purity niobium powder. They are widely used in industries such as steelmaking, metallurgy, atomic energy, superconductors, and medical equipment.
Niobium is a refractory metal — a group of metals characterised by extremely high melting points (above 1772°C), low vapour pressure, and excellent thermal stability. Among refractory metals, niobium has a relatively low density of only 8.6 g/cm³, combining strength and lightness with superior corrosion resistance.
Refractory metals, including niobium, also feature a low coefficient of thermal expansion, high elastic modulus, and excellent stability under extreme temperature conditions, making them valuable in high-performance applications.
Chemical Composition
| Grade | Main Component | Fe | Si | Ni | W | Mo | Ti | Ta | O | C | H | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nb1 | Remainder | 0.004 | 0.004 | 0.002 | 0.005 | 0.005 | 0.002 | 0.07 | 0.015 | 0.004 | 0.0015 | 0.003 |
| Nb2 | Remainder | 0.01 | 0.01 | 0.005 | 0.02 | 0.01 | 0.004 | 0.10 | 0.02 | 0.01 | 0.0015 | 0.008 |
Applications
Niobium and niobium alloy rods and wires are widely used in the fields of chemistry, electronics, aviation, and aerospace due to their high melting point, corrosion resistance, and excellent cold working properties.
Typical applications include:
Structural materials for aircraft engines and rocket nozzles
Reactor internal components and cladding materials in the nuclear industry
Corrosion-resistant components in environments exposed to nitric, hydrochloric, or sulfuric acid
Superconducting materials, medical instruments, and electronic components
Ordering Information (Optional)
| Item | Details |
|---|---|
| Material Grade | Nb1, Nb2 |
| Diameter Range | Customizable per requirement |
| Length | Up to 2000 mm |
| Surface Finish | Polished, Forged, or Machined |
| Standard | ASTM B392 / GB/T 15024 |
| Delivery Time | 8–10 working days (standard lead time) |
| MOQ | 1 piece (sample orders accepted) |
