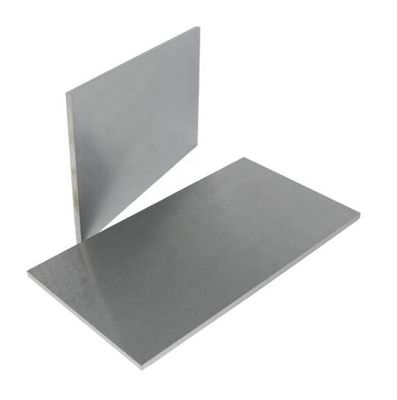

Niobium Sheet Plate Foil 0.03-10mm Jewelry Superabrasives R04200-1 R04210-2
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Density | 8.57 G/cm3 | Oxidation States | +5, +3 |
|---|---|---|---|
| Trial Order | Accepted | Shape | Powder, Ingot, Foil, Wire, Sheet, Plate, Tube, Rod, Target, Crucible, Sputtering Target, Evaporation Material, Pellet, Disc |
| Standard | ASTM B393 | Condition | Vacuum Annealing/temper/quench |
| Boiling Point | 4744°C | Surface | Polished,burnishing |
| Product Standard | ASTM B393-89 | Yield Strength | 73Mpa |
| Dimension | 2~20mm Thickness | Thermal Conductivity | 53.7 W/m·K |
| Dimensions | ￠3~￠120mm | Method | Electron Beam Furnace Smelted |
| Applications | Superconductors, Aerospace, Nuclear Reactors, Electronics, Medical Devices | ||
| Highlight | 0.03-10mm Niobium Sheet Plate Foil,Jewelry Niobium Sheet Plate Foil,R04200-1 Niobium Sheet Plate Foil |
||
Product Description
Introduction
Niobium is a soft, ductile transition metal whose oxide, niobium pentoxide (Nb₂O₅), forms a protective layer similar to aluminium oxide and zinc oxide, preventing corrosion of the underlying metal.
When added to stainless steel, niobium enhances high-temperature performance by reducing overheating sensitivity and temper brittleness while improving strength, toughness, and creep resistance.
Niobium plates feature a small thermal neutron absorption cross-section, excellent corrosion resistance, and high strength at elevated temperatures. They are ideal for use in nuclear reactor structures, nuclear fuel cladding, and as alloying additives in nuclear materials.
Niobium also exhibits a high superconducting transition temperature. Niobium compounds and alloys are therefore widely used in the production of superconducting materials.
Size
| Type | Thickness (mm) | Width (mm) | Length (mm) |
|---|---|---|---|
| Foil | 0.03–0.09 | 30–150 | < 2000 |
| Sheet | 0.1–0.5 | 30–600 | 30–2000 |
| Board | 0.5–10 | 50–1000 | 50–2000 |
Chemical Composition
| Grade | Main Component | Fe | Si | Ni | W | Mo | Ti | Ta | O | C | H | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nb1 | Remainder | 0.004 | 0.004 | 0.002 | 0.005 | 0.005 | 0.002 | 0.07 | 0.015 | 0.004 | 0.0015 | 0.003 |
| Nb2 | Remainder | 0.01 | 0.01 | 0.005 | 0.02 | 0.01 | 0.004 | 0.10 | 0.02 | 0.01 | 0.0015 | 0.008 |
Applications
Niobium exhibits excellent corrosion resistance and maintains ductility even at low temperatures. It can be processed through punching, cutting, deep drawing, and stamping.
Niobium Plate
Used in high-temperature and corrosive environments in industries such as chemical processing, electroplating, medical, and aerospace.
Niobium Sheet
Commonly applied in jewellery, superabrasives, thin film deposition, high-energy physics, springs, superconducting magnets, aerospace, consumer electronics, and medical equipment.
Niobium Foil
Used in corrosion-resistant chemical applications, capacitors, optical targets, superconductors, medical treatment, and refrigeration systems.
