Platinum Plated Titanium Electrode Plate For Water Electrolysis

Place of Origin Baoji, City, China
Brand Name Changsheng
Certification ISO9001:2015
Model Number Pt Coated Titanium Plate Anode
Minimum Order Quantity 5pcs
Price $38.0/pc - $165.0/pc
Packaging Details Soft film inside, export plywood crate outside
Delivery Time 15-20 work days
Payment Terms L/C, T/T
Supply Ability 30 Tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Platinum-Plated Titanium Electrode Plate Coating Material Platinum Precious Metal
Substrate Material Pure Titanium GR1 Pt Purity 99.99%
Pt Coating Thickness 0.5μm - 15 μm Working Current < 8000 A/m2
Temperature < 80℃ Application Electrolytic Ion Water, Electroplating, HHO Generator
High Light

Platinum Plated Titanium Electrode Plate

,

Water Electrolysis Titanium Electrode Plate

,

Titanium Anodes Plate

Leave a Message
Product Description

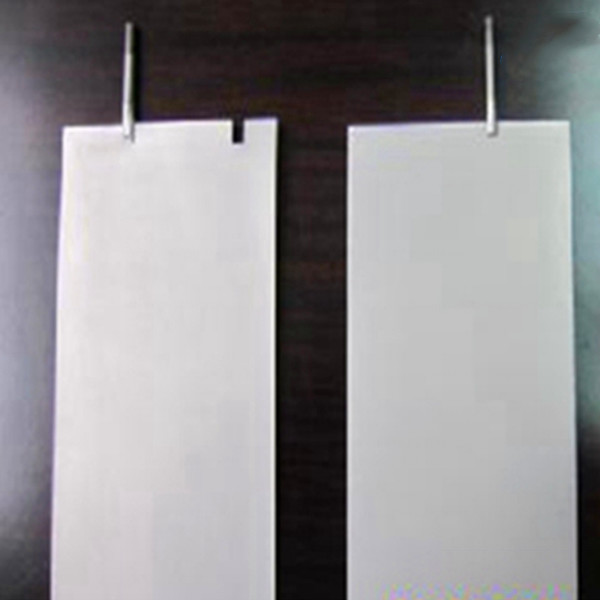

Platinum Plated Titanium Electrode Plate For Water Electrolysis

Platinum-plated titanium anode is an insoluble anode, platinum coating and titanium substrate firmly combined, stable performance, can replace pure gold, pure platinum anode, used in gold and other precious metals plating tank.



Coating Material--Platinum

*Purity: 99.99%
*Precious metal content: ≥ 21.48 g/㎡
*Coating Thickness: 0.5μm - 15 μm
*Features of Platinum: Excellent corrosion resistance, electrical conductivity and catalytic activity.


Substrate Material: Pure Titanium Plate Gr1

*Purity: >99.6%
*Acceptable process size: 1200mm x 1500mm
*Features: Higher purity, better corrosion resistance than other pure grade titanium, Good plasticity


Technical parameter for Platinum Coated Titanium Plate Electrode


Shape: plate. other shapes Mesh, Basket, Rod, Wire, Tubular, or as inquiring

Working Current: < 8000 A/m2

Workmanship: Plating

Coating Material: Pt Noble Metal

Content: ≥ 21.48 g/m2

Coating Thickness: 0.3-15μm

Temperature: < 80℃

PH Value: 1-12



Electrochemical performance and life test

Name Enhanced weight loss (mg) Polarizability
(mv)
Oxygen evolution potential(V) Test Condition
Pt/Ti ≤1 <40 <1.76 1mol/L H2SO4



Features of Pt Plated Titanium Anode

1. Platinum electrode has strong corrosion resistance and high catalytic activity.

2. High oxygen evolution potential, low hydrogen evolution potential, not only excellent anode material, but also excellent cathode material.

3. High current efficiency, corrosion resistance, can reverse pole.

4.Pt layer has good ductility, so that the anode has good bonding force.



Applications of Platinized Titanium Anode

Electrolysis of metal, galvanized steel plate, electrolytic preparation of ionized water, electrolytic chemical preparation of perchlorate and hypochlorite, electroplating industry, cathodic protection, seawater desalination, organic electrolytic synthesis, descaling sterilization and other fields.


Why Choose us as your anode supplier?

1. Processing according to drawing, support customization
2. High quality assurance
3. On-time delivery
4. Information confidentiality
5. Stable process
6. Repair and re-plating are provided

The packaging shall protect the platinum-plated surface to avoid strong bending or bending of electrodes. The packaging shall be placed in wooden cases and filled with foam plastic which shall not be loose.

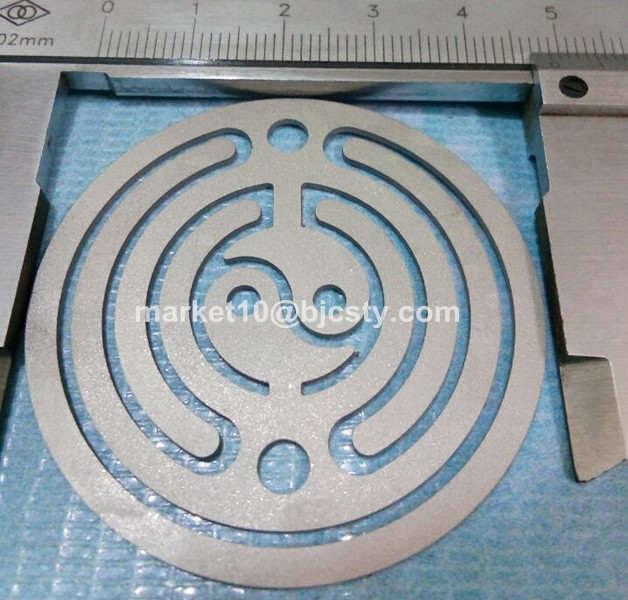

Bespoke Pt Coated Titanium Anode
Platinum Plated Titanium Electrode Plate For Water Electrolysis 0

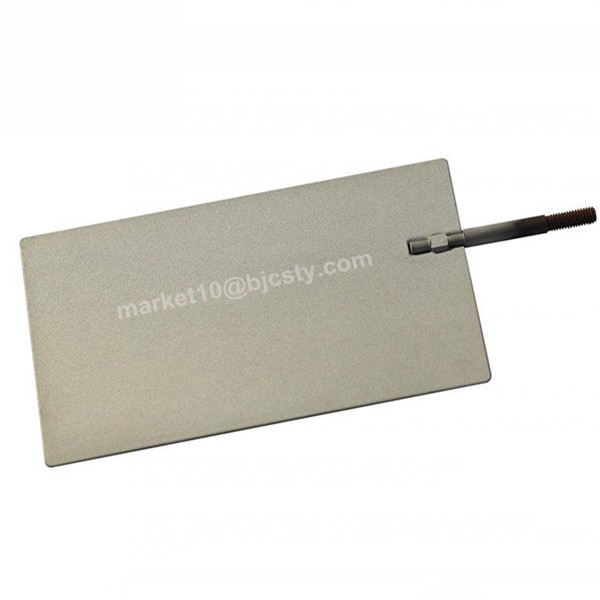

Platinum coated titanium electrode wirh connecting pole
Platinum Plated Titanium Electrode Plate For Water Electrolysis 1
