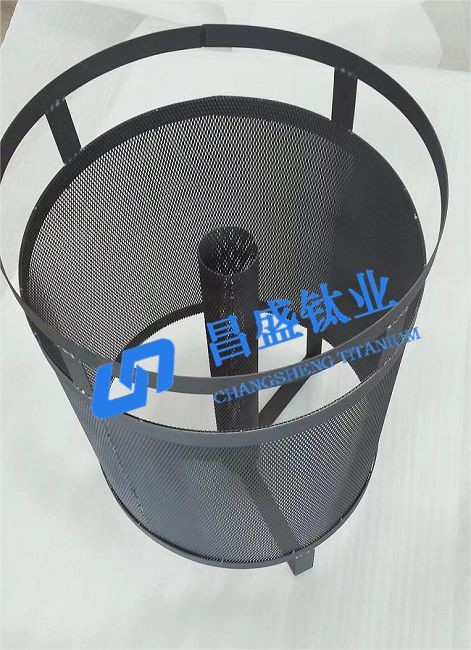

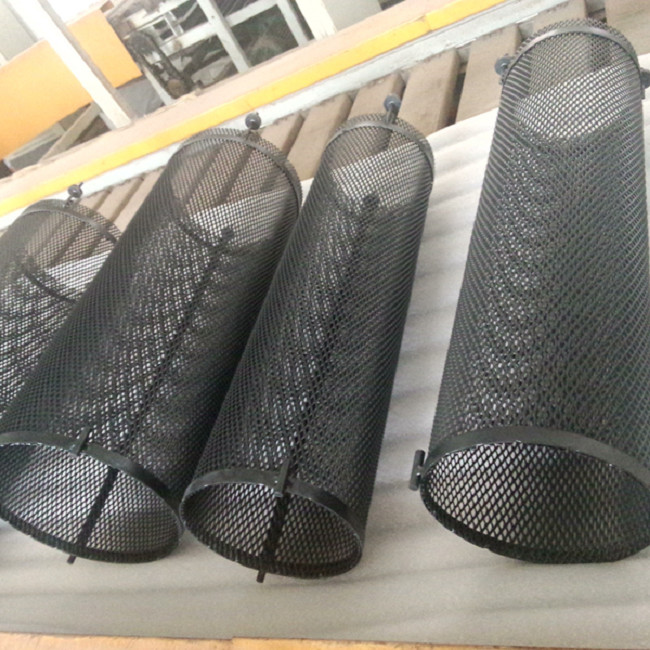

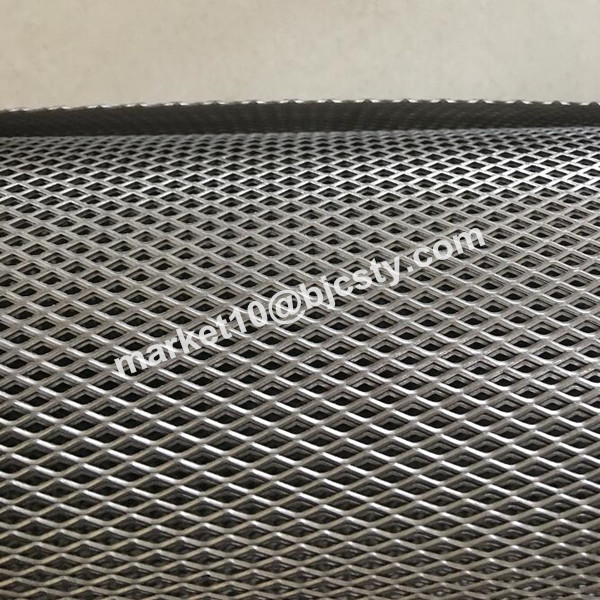

Titanium Coated Mesh For Anode Titanium Mesh Anode

Place of Origin	China
Brand Name	Changsheng
Certification	ISO 9001;2015
Model Number	ASTM
Minimum Order Quantity	10pc
Price	100usd/set
Packaging Details	packed with export wooden case
Delivery Time	10-15days
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000T/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Keyword	MMO Coating Titanium Anode	Maximum Operating Voltage	6 V
Wire Diameter	0.15-0.20mm Is Commonly Used	Coating Content	8g~15g
Corrosion Resistance	High	Size	Customizable
Popular Size	12mm、36mm、3.56mm、510mm、5*12mm	Effective Area	2.7 M²
Current	15mA-100mA	Substrate	Gr1 /Gr2 As Basement
Surface Treatment	Polished	Usage	Storage Tank
Supply State	Anealed	Ampere Density	<2000A/m2
Pt Purity	99.99%
Highlight	Titanium Coated Mesh Anode , Ruthenium Iridium Coated Titanium Mesh Anode , Titanium Electrode Mesh Anode

Leave a Message

Product Description

Product Overview

Titanium Coated Mesh for Anode is a high-performance anode material widely used in electroplating, electrolysis, and water treatment applications.
It combines the superior corrosion resistance of titanium with the excellent electrochemical performance of noble metal oxide coatings.
This product offers long service life, high current efficiency, energy savings, and environmental protection, making it an ideal choice for modern electrolytic systems.

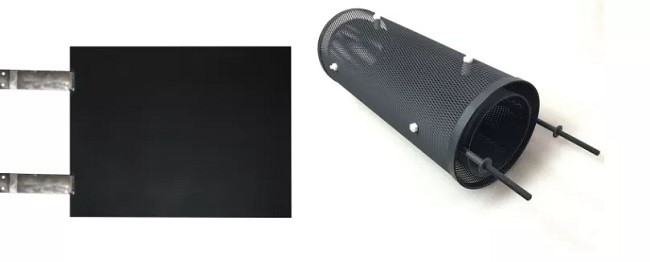

We can manufacture and supply various types of titanium-based anodes according to customer requirements, including titanium mesh, ribbon, sheet, rod, tube, and plate anodes.

Titanium Substrate Composition

Grade	N (%)	C (%)	H (%)	Fe (%)	O (%)	Ti (%)
Gr1	0.03	0.08	0.015	0.20	0.18	Balance
Gr2	0.03	0.05	0.015	0.30	0.25	Balance

Available Coating Types

Coating Type	Coating Thickness
Platinum (Pt)	0.5 μm / 1 μm
Mixed Iridium + Platinum	0.5 μm / 1 μm
Mixed Ruthenium + Iridium	6–8 μm
Mixed Iridium + Tantalum	6–8 μm

Typical Characteristics of Titanium Mesh Anode

Coating composition: Mixed Ruthenium and Iridium

Chlorine evolution potential: < 1.13 V

Polarizability: ≤ 40 mV

Accelerated life test: ≥ 3000 min at 1000 A/m²

Anode weight loss: ≤ 10 mg

Suitable working medium: Chloride-containing solution, pH ≤ 7

Coating Loading & Service Life

Coating Weight	Estimated Service Life
8 g/m²	> 6,000 hours
10 g/m²	> 8,000 hours
12 g/m²	> 10,000 hours
15 g/m²	> 12,000 hours
20 g/m²	> 15,000 hours

Recommended Working Parameters

Current density: < 600 A/m²

Operating temperature: 40–60°C

Chlorine concentration: 30–50 g/L

Polarity reversal: Suitable

Reversal frequency: Every 2–4 hours

Regular Sizes Available

Size (mm)	Set Configuration
63.5 × 150	13 pcs/set
64 × 110	7 pcs/set
80 × 120	1 pc/set
30 × 183	7 pcs/set
80 × 185	7 pcs/set

Applications

Water Electrolysis & Ionisers
Production of alkaline and acidic water
Wastewater Treatment
Organic and chemical wastewater treatmentPesticide and dye wastewater treatment
Drinking water disinfection
Swimming pool and spa water purification
Hospital and food industry sanitation
Sodium Hypochlorite & Chlorine Generators
Swimming pool disinfection
Water sterilisation and purification
Seawater Electrolysis & Electrodialysis
Desalination and fresh water production
Resource recovery from wastewater
Paper, chemical, medical, and light industries
Chlor-Alkali Industry
Electrolysis of brine for chlorine and caustic soda production
Electroplating Industry
Used for plating Au, Cr, Zn, Cu, and other metals

Key Benefits

Excellent corrosion resistance and long operating life

High current efficiency and stable performance

Low overpotential and reduced energy consumption

Environmentally friendly — no toxic by-products

Customizable coating type, mesh size, and dimensions
