Titanium Medical Rod Gr23 Ti-6al4v Eli ASTM F136

Place of Origin China
Brand Name Changsheng
Certification ISO 9001;2015
Model Number ASTM
Minimum Order Quantity 50kg
Price 35usd/kg
Packaging Details packed with export wooden case
Delivery Time 30days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50T/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Materials Titanium Alloy Grade Grade 5, Ti-6al-4v,UNS R56400
Standard ASTM B348, ASTM F136 Diameter 3-30mm
Length 1000-6000mm Surface Polished
High Light

Titanium Gr23 Medical Rod


Ti6al4v Eli Bar


Medical Titanium Round Bar

Leave a Message
Product Description

Titanium Medical Rod Gr23 According to ASTM F136

Titanium Medical Rod Gr23 for implant is biomedical materials are used to manufacture medical devices, prostheses or artificial organs and auxiliary therapeutic devices in the human body. There are mainly alloys such as Gr5Eli, and Ti5Al2.5Tin. They have high specific strength, mechanical properties close to human bone, strength far superior to pure titanium, and also have the characteristics of fatigue resistance, corrosion resistance and excellent biocompatibility.

Titanium Medical Rod Gr23 is also called Gr5 eli, this kind of titanium alloy biomaterial can be classified into "metal materials" in "materials for surgical implants". In contrast, titanium alloy materials can be used as cardiovascular, bone and joint, bone joint, spine, orthopedic device, cardiac pacemaker and defibrillator in three categories of medical devices, namely, non active surgical implants, active surgical implants and orthopedic devices Raw materials for cochlear implants, nerve stimulators and other implant products. Biomedical titanium alloys can be divided into   α  titanium alloy, α + β titanium alloy, β  titanium alloy and TiNi shape memory titanium alloy according to their microstructure. Compared with medical stainless steel and cobalt based alloy, titanium alloy medical materials have the characteristics of small proportion, high specific strength, low modulus of performance, corrosion resistance, easy cutting and good biocompatibility.

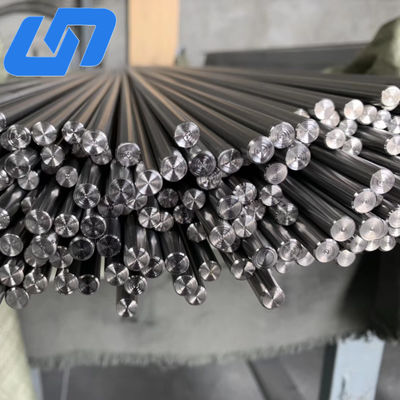

Titanium Medical Rod Gr23 in Stock

-Diameter: 3mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm medical bar in stock

-Length:1000-6000mm, available to cut as your request length.

-Delivery Time:7 days for the medical rod in stock; 15-20days for customized Titanium Medical Rod Gr23 .

-Small MOQ:50Kg.

-Available providing samples and mill cert for you to test.

Titanium Medical Rod Gr23 Specifications:


Place of Origin: Shaanxi, China Technique: Forged
Application: Medical implants Grade: Gr23/Gr5Eli/UNS R56401
Length: Max 6000mm Diameter 0.5-4.9mm, 5-99mm, 100-600mm

Processing Service:


Bending, Welding, Decoiling, Cutting, Punching

Production Standard:




Surface: Polished Metallographic Inspection Grade 7 Min
products: bar, plate and wire Tolerance: h6-h9



Third Party Inspection: SGS,TUV, etc

Titanium Medical Rod Gr23 Mechanical Properties and Chemical Composition

Physical Properties
Grade Tensile stength MPA-Min Yield strength MPA-Min Elongation %-Min
Gr1 240 170 24
Gr2 345 275 20
Gr4 550 483 15
Gr5 895 828 10
Gr7 400 275 18
Gr9 620 483 15
Gr12 483 348 18
Gr23/ Gr5-Eli 793 759 10













Pd Max



Va Max



Mo Max
/ Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt %
Gr1 0.2 0.18 0.03 0.08 0.015
Gr2 0.3 0.25 0.03 0.08 0.015
Gr4 0.5 0.4 0.05 0.08 0.015
Gr5 0.4 0.2 0.05 0.08 0.015   5.5-6.7 3.5-4.5
Gr7 0.3 0.25 0.03 0.08 0.015 0.12- 0.25
Gr9 0.25 0.15 0.03 0.08 0.015   2.5-3.5 2.0-3.0
Gr12 0.3 0.25 0.03 0.08 0.015       0.6-0.9 0.2-0.4
Gr5eli/Gr23 0.25 0.03 0.03 0.08 0.0125   5.5-6.5 3.5-4.5
Ti Balance

Titanium Medical Rod Gr23 Ti-6al4v Eli ASTM F136 0

Mill cert of 3mm Titanium Medical Rod Gr23


Titanium Medical Rod Gr23 Ti-6al4v Eli ASTM F136 1

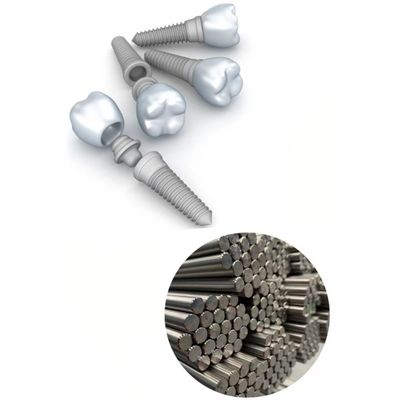

Titanium Medical Rod Gr23 used in Medical Implants and Instruments


-1,Titanium Medical Rod Gr23 is commonly used to construct orthopedic instruments such as bone screws, plates, and rods.

-2,Medical titanium bar is commonly used in implant surgeries, such as joint replacements, spinal fusion, and fracture fixation.

-3,Titanium Medical Rod Gr23  is especially useful in orthopedic applications because of their high strength-to-weight ratio, corrosion resistance, biocompatibility, and low elastic modulus.

-4,Titanium medical rod is used in various instruments such as intramedullary nails, external fixators, and hooks.

-5,These devices are used to stabilize and support fractured and dislocated bones, as well as to align and hold bones in place during the healing process.

-6,Titanium medical grade rods are also used in hip and knee joint replacement surgeries, where they are used to create the framework of the artificial joint.

-7 Medical titanium bar is also used in other medical instruments such as bone saws, bone drills, and bone reamers. These instruments are used to prepare bone for surgical procedures, such as the placement of orthopedic implants.

-8,Medical titanium bar are also used to create medical devices such as pacemakers, defibrillators, and stents.
