Titanium Anode Rod For Water Heater Liner Protection Dia3x393mm Length Current 50mA-100mA
Place of Origin | China |
---|---|
Brand Name | CSTI |
Certification | ISO9001:2015 |
Model Number | Titanium anode rod for water heater1206 |
Minimum Order Quantity | 1 Piece |
Price | $10.00 - $15.00/ Piece |
Packaging Details | 1. Packing with moisture-proof paper; 2. Packing with foam plastics in all sides; 3. Packing products in standard wooden cases. |
Delivery Time | 10~25 work days |
Payment Terms | T/T, L/C |
Supply Ability | 100000 pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Specifications | Φ3 * 393mm (L) | Current | 50mA-100mA |
---|---|---|---|
Voltage | 3V | Life | More Than 3 Years |
Application | Anode Wire For Water Heater Liner Protection | Electrochemical Performance And Life Test | Reference Standard HG / T2471-2007 Q / CLTN-2012 |
Highlight | Water Heater Liner Protection Titanium Electrode,3mm Titanium Anode Rod,50mA Titanium Anode Rod |

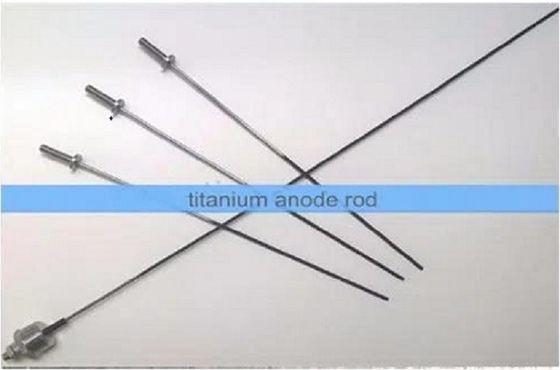

Titanium Anode Rod for water heater
1. Application: Anode wire for water heater liner protection
2. Product specifications: Φ3 * 393mm (L)
3. Current: 50mA-100mA
4. Voltage: 3V
5. Life: more than 3 years
6. Electrochemical performance and life test (reference standard HG / T2471-2007 Q / CLTN-2012)
Item |
Strengthen weightlessness mg |
Polarizability mv |
Chlorine evolution potential V |
Test condition |
Ru/Ir titanium anode | ≤10 | 40 | <1.13 | 1mol/L H2SO4 |
Baoji city changsheng can provide Life Test
Product use background and introduction:
In the process of using electric water heaters, people sometimes experience water heater leakage, electricity leakage, and reduced water output. This phenomenon is likely to be caused by corrosion and perforation of the liner and heating pipe caused by the magnesium rod not being replaced in time after the magnesium rod is consumed. Generally speaking, the magnesium rods of electric water heaters must be replaced every two years, but there are also products from manufacturers with poor manufacturing levels that do not reach the design life, and those with rapid corrosion may be consumed in less than one year. Short life and frequent replacement Increase of use cost and so on are many disadvantages of magnesium rod anticorrosion technology. The life of the water heater liner is the most prominent problem that plagues the water heater industry. Once the water heater liner leaks, it represents the suspension of the life of the water heater, and may even cause economic losses to the user. The main cause of water heater leakage is corrosion of anions in tap water. And water quality varies greatly across China. It is difficult to find an effective liner protection technology for all water quality.
When current passes through the electrode, Cl_ in the tap water moves to the metal oxide-coated titanium electrode as the anode, and is concentrated near the anode. The Cl_ concentration in the water heater liner as the cathode will be greatly reduced, which slows down the water heater. The corrosion rate of the bile greatly prolongs the service life of the water heater liner, and also reduces the consumption of magnesium rods.
Tag: titanium anode rod for water heater,titanium powered anode rod for water heater,water heater powered titanium anode rod
