titanium electrode for electrolysis Metal Electrodeposition Ruthenium Coating Series
| Place of Origin | China |
|---|---|
| Brand Name | CSTI |
| Certification | ISO9001:2015 |
| Model Number | RUTHENIUM COATING SERIES TITANIUM ANODE-20221104 |
| Minimum Order Quantity | 1 Piece |
| Price | $100.00 - $1,000.00/ Piece |
| Packaging Details | 1. Packing with moisture-proof paper; 2. Packing with foam plastics in all sides; 3. Packing products in standard wooden cases. |
| Delivery Time | 10~25 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 100000 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Substrate | Pure Titanium(Gr1) | Coating | RuO2 |
|---|---|---|---|
| Current Density | ≤10000A/㎡ | Coating Thickness | ≥10μm |
| Oxygen Evolution Potential | Chlorine Evolution Potential≥1.13V(relative To Calomel Electrode) | Application | Chlor-alkali Industry, Diaphragm Process For Alkali Production, Chlorate Industry, Acidic Water Electrolysis, Sea Water Electrolysis, Sterilization For Circulating Water In Power Plant, Metal Electrodeposition, Ion Water Electrolysis, Electrodialysis |
| Highlight | Ruthenium Coating Titanium Anode Plate,Acidic Water Electrolysis Titanium Anode Mesh,Chlorate Industry Titanium Mesh Anode |
||
Product Description

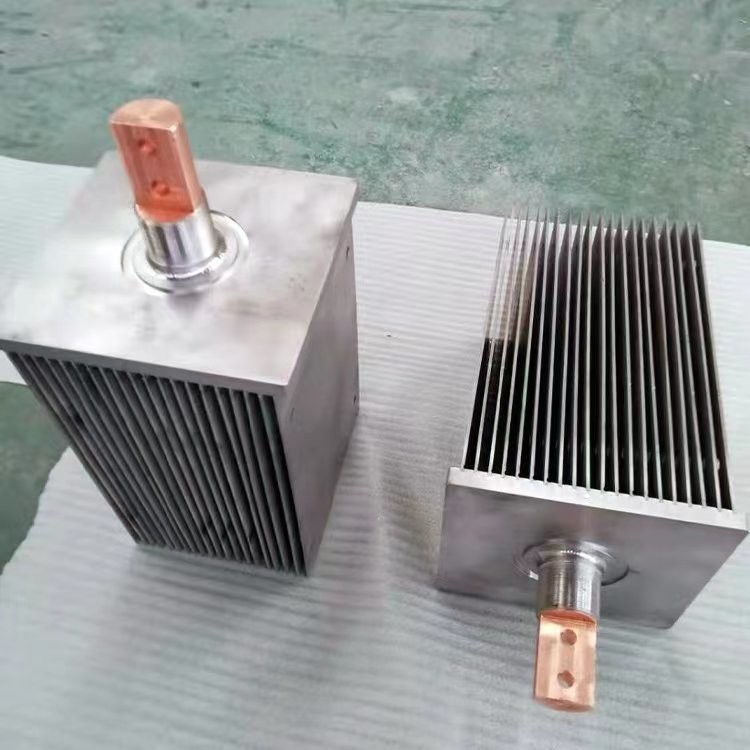

Titanium electrode for electrolysis ruthenium coating series
Substrate: Pure Titanium(Gr1)Coating: RuO2
Coating Content: ≥10g/㎡
Coating Thickness: ≥10μm
Current Density: ≤10000A/㎡
Chlorine evolution potential≥1.13V(relative to calomel electrode)
CHLORINE PRODUCTION OF SODIUM HYPOCHLORITE GENERATOR
| Current Density A/m2 | Chlorine ion content ppm | Chlorine production g/h.㎡ |
| 300-500 | 3000-5000 | 850--1050 |
Baoji city changsheng can provide Life Test
Coating X-Ray Test
Coating Thickness Test
Helium Leak Detection Test,
Contact Resistance Test
Performance Test and other test.
Feature
1. good corrosion resistance and pole reversal performance
2. High current efficiency and low energy consumption.
3. Long working life,can use more than 8 years in Chlor-alkali industry
4. Substrate can be reused
Test data in Chlor-alkali industry
1. Chlorine evolution potential ≥1.13V
2. Chlorine evolution polarizability: ≤40MV
3. Strengthening life test: ≥3000min
Current Density: ≤10mg
4. Strengthening weight lessness: ≤10mg
Application
Chlor-alkali industry, diaphragm process for alkali production, Chlorate industry, acidic water electrolysis, sea water electrolysis, Sterilization for circulating water in power plant, metal electrodeposition, Ion water electrolysis, electrodialysis etc.
Tag: titanium electrode for electrolysis,ruthenium coating,Chlor-alkali,Chlorate industry,acidic water electrolysis,metal electrodeposition
