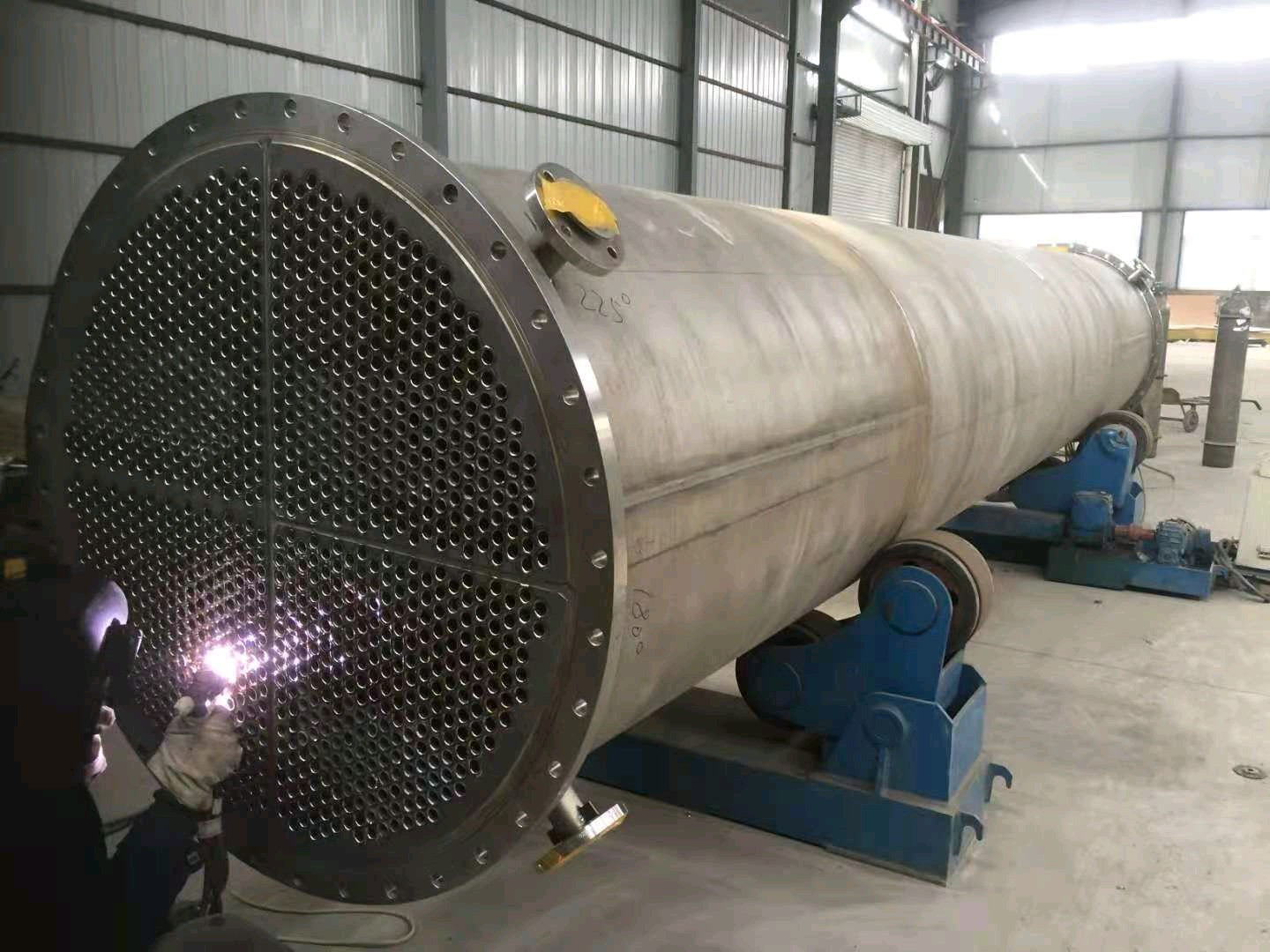

Titanium Tubular Heat Exchanger/ Titanium Condenser For Seawater Desalination

Place of Origin China
Brand Name Changsheng Titanium
Certification ISO 9001
Model Number cs2022
Minimum Order Quantity 1
Price USD 31000/PC
Packaging Details Standard Export Package
Delivery Time 25 work days
Supply Ability 50 pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Materials Grade 2 Titanium Purity: >99.8% Shape Fixed Tube-sheet Exchanger
Pressure No Attributes Best Corrosion Resistance To Chlorine Chemicals
Dimension 1.2*3.5M Thickness 10mm
Weight 1.3 Tons
Highlight

Titanium Tubular Heat Exchanger

,

Condenser Tubular Heat Exchanger

,

Seawater Desalination Tube Heat Exchanger

Leave a Message
Product Description



Specification of titanium condenser:

Core Components



Titanium tubular shell,

Titanium tube bundles

Titanium / titanium clad steel tube sheets

Titanium end head

Main Materials

 Grade 2 titanium purity: >99.8%
Shape  Fixed tube-sheet exchanger
Pressure   No
Dimension

 Shell Dia.1.27m, Length:3.5m

 Tube Size: 12.7*0.9*3.3m

 Tube Qty: 828 pcs

Gross weight  1.3 tons
Package  Standard Export Equipment Packaging
Cert  "U" Stamp
Warranty of core components  2 years

Place of Origin

 China



Structural design of titanium condenser:



The condenser is an integral part of the refrigeration system and is a type of heat exchanger. The working process of the condenser is an exothermic process, which can convert gas or vapor into liquid and quickly transfer the heat inside the tube to the air near the tube. Therefore, the condenser temperature is higher.



The tubular heat exchanger is composed of a core body and an outer shell. The core body is mainly composed of heat exchange tubes, and the outer shell is composed of a cylinder body and an end socket. The upper and lower heads each have two openings, and the heads between the centers of the openings are the same. 90° angle, so that all fluids participate in heat transfer, no dead zone. The problems of simple structure, large volume, rough shape and low efficiency of traditional heat exchangers are changed.


Titanium Tubular Heat Exchanger/ Titanium Condenser For Seawater Desalination 0





Material selection of titanium tubular heat exchanger:



Titanium metal is resistant to corrosion by many types of acids due to the easy formation of a stable, protective and highly adhesive oxide film. This film forms immediately when a fresh surface is exposed to air or moisture. When a clean surface of titanium is exposed to air, an oxide film forms quickly and continues to grow slowly. Film growth is accelerated under strong oxidizing conditions such as heating in air, anodic polarization in an electrolyte, or exposure to oxidants such as hyponitric acid, chromic acid, etc. Therefore, titanium applications are common in the manufacture of process equipment.



Titanium Tubular Heat Exchanger/ Titanium Condenser For Seawater Desalination 1



Life Cycle Advantages of Titanium Tubular Heat Exchangers;


Titanium heat exchangers are highly cost-effective over the life of the equipment. Titanium heat exchangers can operate for decades if properly maintained, making them a very economical option.



Titanium heat exchangers can:



Provides longer service life compared to other materials of construction
Eliminate costly downtime due to equipment failure
Elimination of requirements for spare parts inventory
Provides excellent corrosion resistance
Provides high heat transfer efficiency
Accommodates high steam pressure to reduce required surface area
All-welded metal construction eliminates breakage during handling, installation and operation





Application of titanium condenser:



In case of strong acid, high pressure, high temperature, nuclear energy and other environments, TITANIUM TUBESHEET is widely used for titanium heat exchanger, in seafood breeding, sea water heat exchange, salt water heat exchange,marine engineering chemicalindustry, nuclear power project, sea water desalination, chemical containers, such as tubular heat exchangers, pressure vessels, boilers, condensers, central air conditioning, evaporators and other industries and fields.



Titanium Tubular Heat Exchanger/ Titanium Condenser For Seawater Desalination 2





Titanium Fabrications:

In 1975, our engineers entered the titanium industry and followed the earliest group of titanium experts and engineers in China to study, develop and practice the application of titanium. In 2001, Changsheng Titanium Enterprice was established to manufacture titanium equipment. We support structural design, manufacturing and installation guidance

  • Titanium Heat Exchangers
  • Titanium Columns
  • Titanium Condensers
  • Titanium Reactors
  • Titanium Pressure Vessels
  • Titanium Piping Systems
  • Titanium Pipe Fittings



Titanium Tubular Heat Exchanger/ Titanium Condenser For Seawater Desalination 3

Titanium Tubular Heat Exchanger/ Titanium Condenser For Seawater Desalination 4
