Anti Acid Titanium U Tube 1000 Square Meters Heat Exchanger Gr2
| Place of Origin | Baoji City, China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001 |
| Model Number | Titanium Tube Bundle |
| Minimum Order Quantity | 1 piece |
| Price | USD 100.0/pc to USD 200.0/pc |
| Packaging Details | Export Standard Packaging |
| Delivery Time | 25-30 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 Ton per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Titanium Tube Bundle | Titanium Tube Bundle Material | Gr1,Gr2 |
|---|---|---|---|
| Titanium Tube Bundle Application | Tank,Heat Exchanger,Tower,Reactor,etc. | Titanium Tube Bundle Type | Seamless,Welded |
| Titanium Tube Bundle Dimensions | As Per Client's Request And Drawings | Titanium Tube Bundle Advantages | Anti-corrosion,Long Service Life |
| Sample | Provided | Titanium Tube Bundle Heat Exchange Surface | 3 Square Meters To 1000 Square Meters |
| High Light | Anti Acid Titanium U Tube,1000 Square Meters Titanium U Tube,gr2 titanium pool heat exchanger |
||
Product Description
Pure Titanium U Bend Tube Bundles Gr2 Tubings For U-Tube Titanium Heat Exchanger
Detailed Information of Titanium Tube Bundle:
Tubing material: Pure titanium Gr1/Gr2
Tubing type: seamless tubes & welded tubes
Tubesheet material: Pure titanium Gr1/Gr2, Titanium composite plate, etc.
Dimentions: as per drawings
Nomal Used Tubes of Titanium Tube Bundle:
Φ5*0.5, Φ6*0.5, Φ6*1, Φ10*1, Φ12*1, Φ12.7*0.6, Φ16*1, Φ19*0.55, Φ19*0.6, Φ19*0.7, Φ19*0.8, Φ19*1, Φ19*2, Φ20*2, Φ20*3, Φ25*1, Φ25*1.5, Φ25*2, Φ25*2.5, Φ25*3, Φ30*1.5, Φ30*2, Φ30*3, Φ32*1, Φ32*2.5, Φ32*3, Φ32*3.5, Φ35*2, Φ38*1.5, Φ38*2, etc.
Features of Titanium Tube Bundle:
* High specific strength, light weight
* Exceptional corrosion resistance(against sulfuric acid and hydrochloric acid)
* High heat exchange efficiency
* Resistance to cavitation
* Long service life
* Titanium is recyclable.

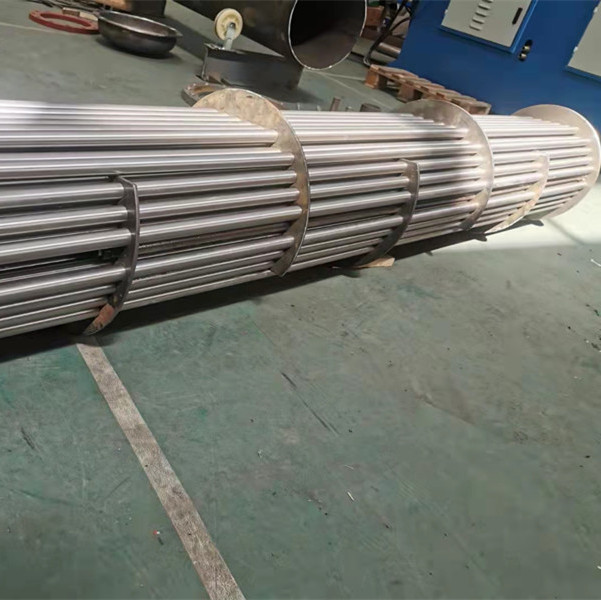

Reminding: All images here show the examples of Titanium Tube Bundle for different using. Due to customization, please contact us for satisfying your individualized requirement!
Mechanical Properties of Titanium:
|
ASTM Grade
|
Alloy composition | Tensile strength | Yield strength | Elongation % | ||
| ksi | Mpa | ksi | Mpa | |||
|
GR1
|
Unallyed Ti(Pure)35A-CP1 | 35 | 240 | 25 | 170 | 24 |
| GR2 | Unallyed Ti(Pure)50A-CP2 | 50 | 345 | 40 | 275 | 20 |
Tag: Titanium Tube Bundle Factory, Custom Titan Tube Bundles, Titanium Heat Exchanger Tube Bundle, U Bend Tube Bundles, etc.
