Titanium Semi Elliptical Head End Cap Grade 2 For Titanium Storage Tanks

  • Titanium Semi Elliptical Head End Cap Grade 2 For Titanium Storage Tanks
  • Titanium Semi Elliptical Head End Cap Grade 2 For Titanium Storage Tanks
Place of Origin Baoji City, China
Brand Name Changsheng
Certification ISO9001:2015
Model Number Titanium Elliptical Cap
Minimum Order Quantity 1 piece
Price USD 55.0/pc to USD 75.0/pc
Packaging Details Export Standard Packaging
Delivery Time 30-60 work days
Payment Terms L/C, T/T
Supply Ability 30 Ton per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Titanium Elliptical Cap Material Pure Titanium And Titanium Composite Materials
Application Tank, Heat Exchanger,Tower,Reactor,etc. Tech Hot Spinning Process
Dimensions As Per Client's Drawings Surface Acid-washing,sandblasting
Advantages Anti-corrosion,Long Service Life Sample Provided
High Light

ASTM B861 Titanium Heat Exchanger

,

GR12 Titanium Heat Exchanger

,

ASTM B363 Elliptical Cap
Leave a Message
Product Description

Titanium Semi Elliptical Head End Cap Grade 2 For Titanium Storage Tanks

We manufacture Titanium Elliptical Head and Spherical Head for process equipment.

Other names: elliptical end, elliptical cap, dished elliptical head, ellipsoidal head, ellipsoidal end, ellipsoidal cap, dished ellipsoidal head, ect.

Feature: high strength, light weight, good anti-corrosiveness, etc.

Application: pressure vessels, storage tanks, boilers, reactors, pipes, heat exchangers, condensers, absorbers, etc.

Surface treatment: sand blasting, pickling, polishing, lining, oiling, etc.



Material Desingnation of Titanium Elliptical Cap

GR1,GR2, GR7,GR9,GR12,N6,N4,Zr



Production Standards of Titanium Elliptical Cap

GB/T 27684, GB/T 13401, HG/T 3651, HG/T 20592, ASTM B363, ASTM B861, ASTM B16.9,

ASTM B16.11, MSS SP-43, MSS SP-97.



Detailed Information of Titanium Elliptical End Cap

Item Titanium Semi Elliptical Head End Cap Grade 2 For Titanium Storage Tanks
DN 100mm to 6000mm, customized size available
Wall Thickness 3mm to 100mm, customized size available
Standards

GB/T 27684, GB/T 13401, HG/T 3651, HG/T 20592, ASTM B363, ASTM B861, ASTM B16.9, ASTM B16.11, MSS SP-43, MSS SP-97.
Material Pure titanium Gr1, Gr2, and titanium alloy Gr5, Gr7, Gr9, Gr12, etc.
Connection Type Butt-welded or threaded
End Type Bevel, plain or as required
Surface Sandblasting or Pickling

Mechanical Properties of Titanium:
ASTM Grade
 Alloy composition Tensile strength Yield strength Elongation %
ksi Mpa ksi Mpa
GR1
 Unallyed Ti(Pure)35A-CP1 35 240 25 170 24
GR2 Unallyed Ti(Pure)50A-CP2 50 345 40 275 20
GR5 Ti 6Al 4V 130 895 120 828 10
GR9 Ti 3AI 2.5V 90 620 70 483 15F




Test Methods of Titanium Elliptical Cap

Dye penetrant inspection

Flaw detection

...



Features of Titanium Elliptical Cap

* High specific strength, light weight

* Exceptional corrosion resistance(against sulfuric acid and hydrochloric acid)

* Resistance to cavitation

* Long service life

* Titanium is recyclable.



Reminding: All images here show the examples of Titanium Elliptical Cap for different using. Due to customization, please contact us for satisfying your individualized requirement!



Titanium Semi Elliptical Head End Cap Grade 2 For Titanium Storage Tanks 0

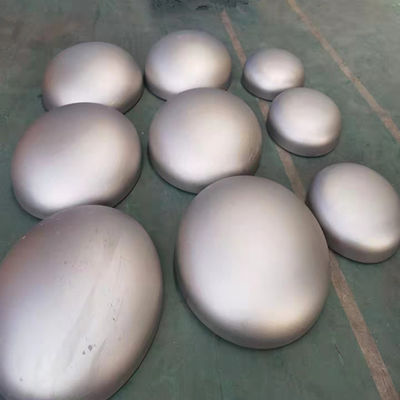

​                                       Titanium Elliptical Cap in Workshop
