Titanium Electrode MMO Coating Ruthenium Iridium for Waste water treatment
| Place of Origin | China |
|---|---|
| Brand Name | CSTI |
| Certification | ISO9001 |
| Minimum Order Quantity | 1 Piece |
| Price | $56.00 - $68.00/ Piece |
| Packaging Details | 1. Packing with moisture-proof paper; 2. Packing with foam plastics in all sides; 3. Packing products in standard wooden cases. |
| Delivery Time | 10~15 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 10000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | CSTY-PbO2 Coated Anode | Substrate | Gr1 /Gr2 As Basement |
|---|---|---|---|
| Coating | Ruthenium-iridium Tantalum-iridium | Application | Sodium Hypochlorite Production, Disinfect |
| Shape | Mesh /Plate Assembly Or Loose | Working Temperature | 40-50℃ |
| Current Density | ≤1000A/m2 | Operating Life | 3-20 Years |
| High Light | Coating MMO Titanium Anode Cathode,Ruthenium Iridium Titanium Anode Cathode,Anti Corrosion platinum coated titanium anode |
||
Product Description
Titanium Electrode MMO Coating Ruthenium Iridium for Waste water treatment
Sodium hypochlorite generator is a kind of equipment for disinfection and steriization of water treatment.The equipment uses salt water as raw material to produce sodium hypochlorite solution through electrolytic reaction.
Sodium hypochlorite is a strong oxidant and disinfectant. It is produced by electrolysis without diaphragm from a wide range of inexpensive industrial salts or seawater dilute solutions. To ensure that sodium hypochlorite is fresh in texture and has high activity. To ensure the disinfection effect, the device will add sodium hypochlorite while it is occurring. Compared with chlorine and chlorine compounds,it has the same oxidizing and disinfecting effect.
According to its use.Itis divided into two categories: sanitary disinfection and environmental hypochlorite generators that are not directly related to human health.
Titanium anodes series products can achieve the effect of improving the use efficiency of salt and prolonging the service life of anode. The main products are as follows: ruthenium-based titanium anode plates,mesh,etc.It can also be applied to the following special working conditions: deoxidation process, high-speed running electrolyte,electrode commutation.
|
Titanium Substrate
|
Grade
|
N
|
C
|
H
|
Fe
|
O
|
Ti
|
|
1
|
0.03
|
0.08
|
0.015
|
0.2
|
0.18
|
bal
|
|
|
2
|
0.03
|
0.05
|
0.015
|
0.3
|
0.25
|
bal
|
|
|
Regular Coating
|
Platinum:0.5um/1um;
Mixed Iridium and Platinum:0.5um/1um; Mixed Ruthenium and Iridium:6-8um; Mixed Iridium and Tantalum:6-8um. |
||||||
|
Characteristics
|
Coating: Mixed Ruthenium and Iridium;
Chlorine evolution potential: <1.13V; Polarizability: ≤40mv; Accelerated life: ≥3000min under current density 1000A/m2; Anode strengthening weightlessness: ≤10mg; Suitable working environment: Solution contains Cl-, PH<=7 |
||||||
|
Coating contents & life span
|
8 grams/m2: >6,000 hours;
10 grams/m2: > 8,000 hours; 12 grams/m2: >10,000 hours; 15 grams/m2: >12,000 hours; 20 grams/m2: >15,000 hours |
||||||
|
Working parameters
|
Current density: <600A/m2;
Temperature: 40-60°C; Chlorine concentration: About 30~50grams/liter; Polarity reversal: suitable; Reversal frequency: 2-4 hours |
||||||
Detailed Images
Features
* Polarity reversal
* Effective chlorine production
* Low chlorine evolution potential
* High current efficiency
* Anti-corrosion
* High catalytic property
* Long working life
* Keep the operating voltage stable,etc
* Light weight
Shape

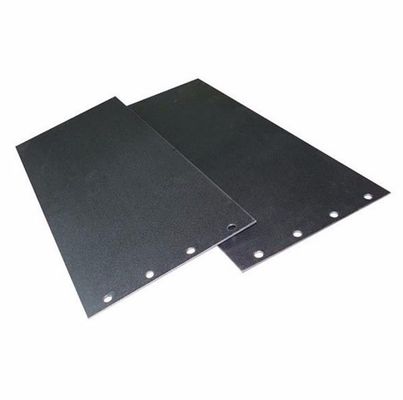

Mesh
Plate
Basket
Rod
Tubular
Technology
Sand blasting
High Annealing
Brush coating
Our Test and Test Report
Advantages
1.The transparent structure of the electrolytic cell is conductive to the monitoring of the internal electrolysis process during the operation of the
equipment;It is conductive to judging the timing of picking and timely pickling to ensure the continuous and efficient operation of the system at low cost.
2. The electrode uses pure titanium as the base material + MMO special technology coating, the chlorine evolution potential is L12V (common in the market is more than 1.13V), and the power consumption is lower;

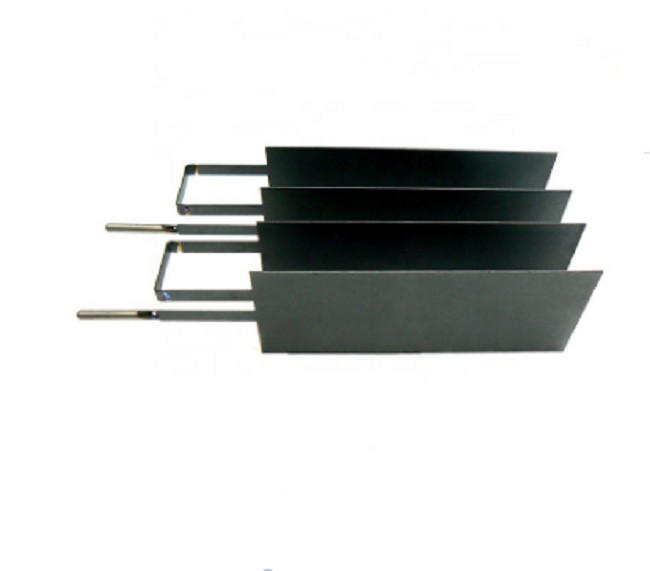

3. The electrode uses a bipolar structure, and several electrolysis units are set in an electrolysis cell,which are directly connected in series through the electrolyte to reduce the connection between the electrodes connect the bus to save contact power consumption;
4. The electrode adopts a titanium electrode group with a vertical structure, so that the hydrogen generated by electrolysis can quickly overflow to prevent the increase of resistivity due to the increase of bubbles and adhesion during the generation of hydrogen, which causes fluctuations in solution concentration, unstable operation, and unstable energy consumption.
5. Through repeated experiments and data analysis, our company adopts the most efficient scheme on data such as electrode spacing and series
spacing to ensure the efficient operation of the system.
Application field
Cooling water treatment
Swimming pool sterilization
Nuclear power plant
Domestic sewage treatment Thermal
power plant
Wastewater treatment
Sterilization of petrochemical plants and chemical plants
Ship ballast water
Offshore facility
Control of Iron Bacteria and Sulfate Reducing Bacteria in Oilfield Re-injection Water
Drinking water disinfection
Hospital sewage treatment
Bleaching and dyeing
Food industry disinfection and
sterilization
